Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

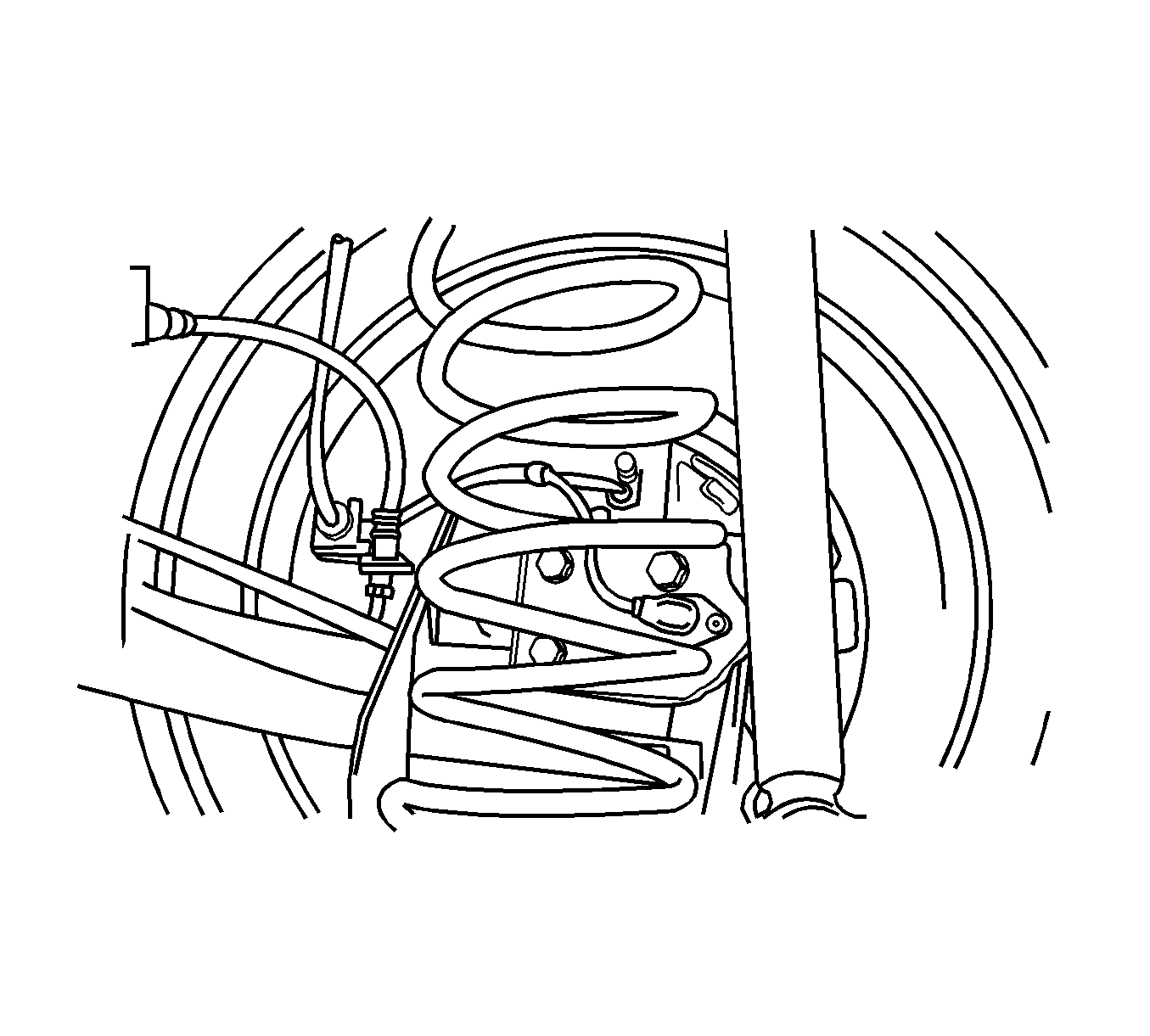

    Fig 1: View of Brake Lines, Brake Hoses, and Rear Axle Brackets
    GM1242046Courtesy of GENERAL MOTORS CORP.
  1. Install the brake hoses to the body and the rear axle brackets.
    2. NOTE: Refer to Fastener Notice .
  2. Connect the brake lines to the brake hose.

    Tighten:  Tighten the brake lines to 16 N.m (12 lb ft).

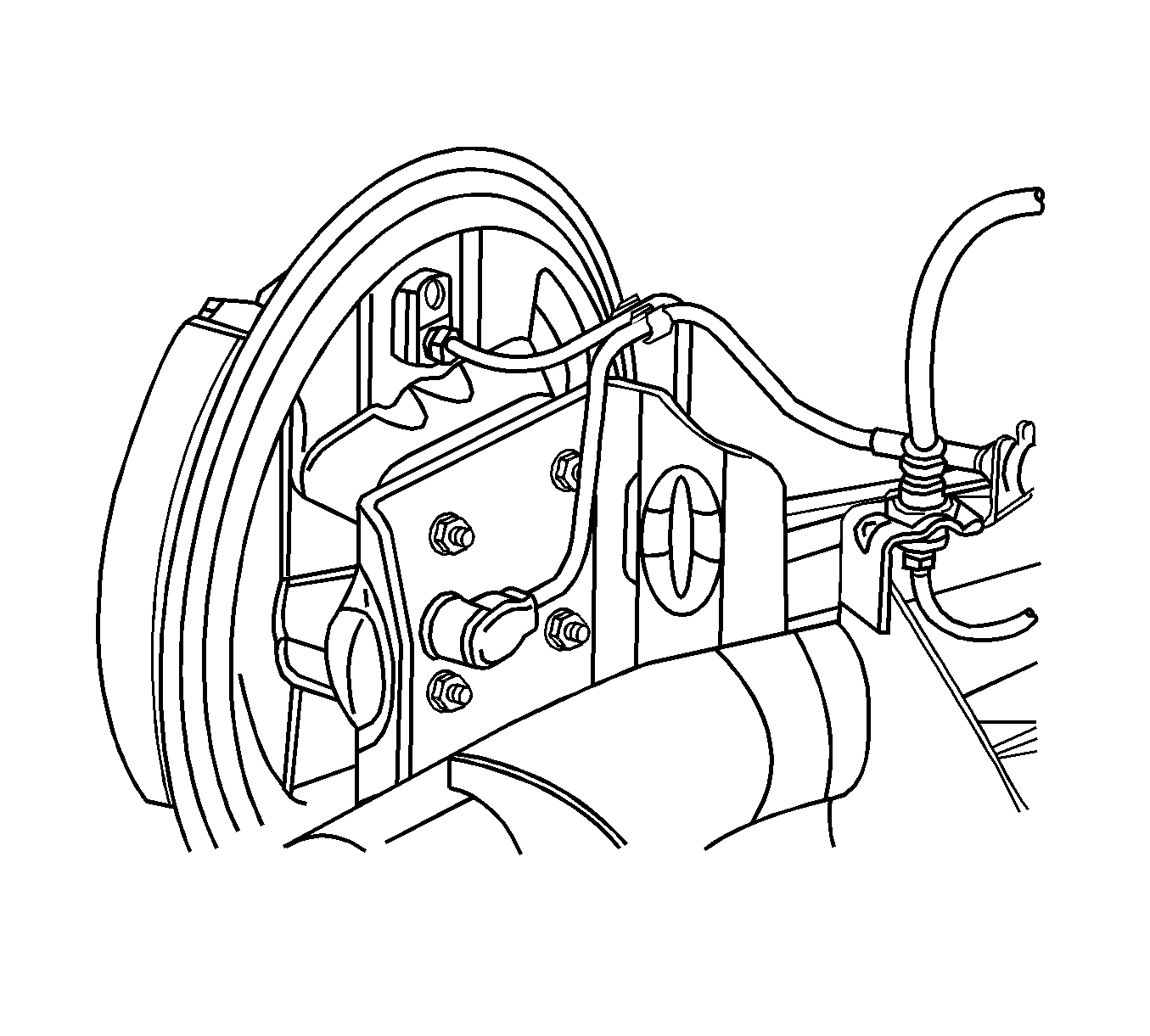

    3. Fig 2: View of Brake Hoses
    GM1242047Courtesy of GENERAL MOTORS CORP.
  3. Install the brake hose retainers.
  4. Lower the vehicle.
  5. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) .
  6. Check the brake system for leaks.
