Installation Procedure
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

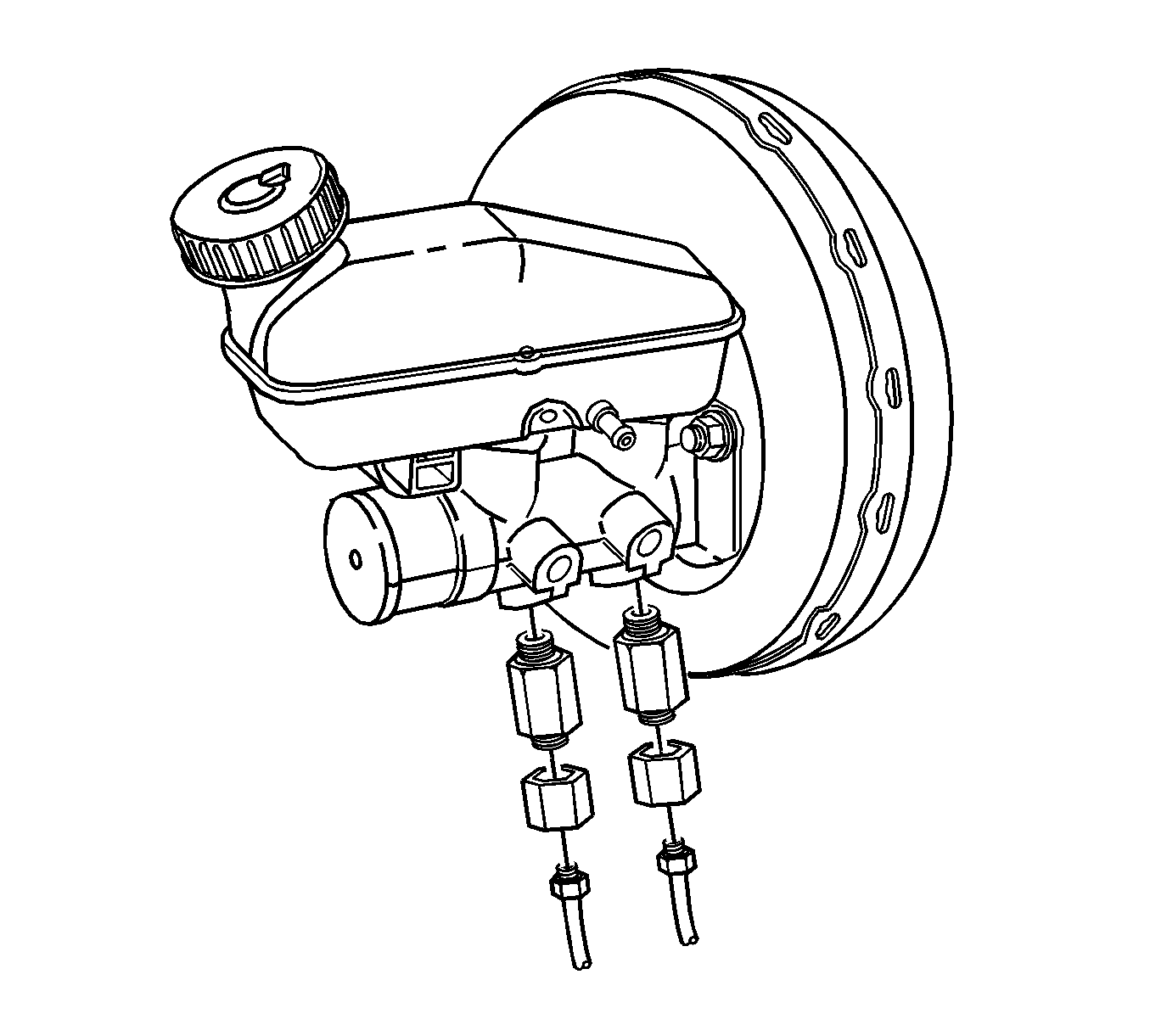

- Install the proportioning valves to the cylinder body.
Tighten: Tighten the proportioning valves to 40 N.m (30 lb ft).
- Connect the brake lines to the valves.
Tighten: Tighten the brake lines to 16 N.m (12 lb ft).
- Bleed the braking system. Refer to Hydraulic Brake System Bleeding (Manual) .
CAUTION:
Refer to Brake Fluid Caution
.
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
Since these valves are adjusted in pairs to the correct control range, they must be replaced in pairs.
