Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View of Electrical Connector and Reservoir

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Remove the reservoir only when replacing a damaged or a leaking reservoir.

Disconnect the electrical connector from the reservoir.

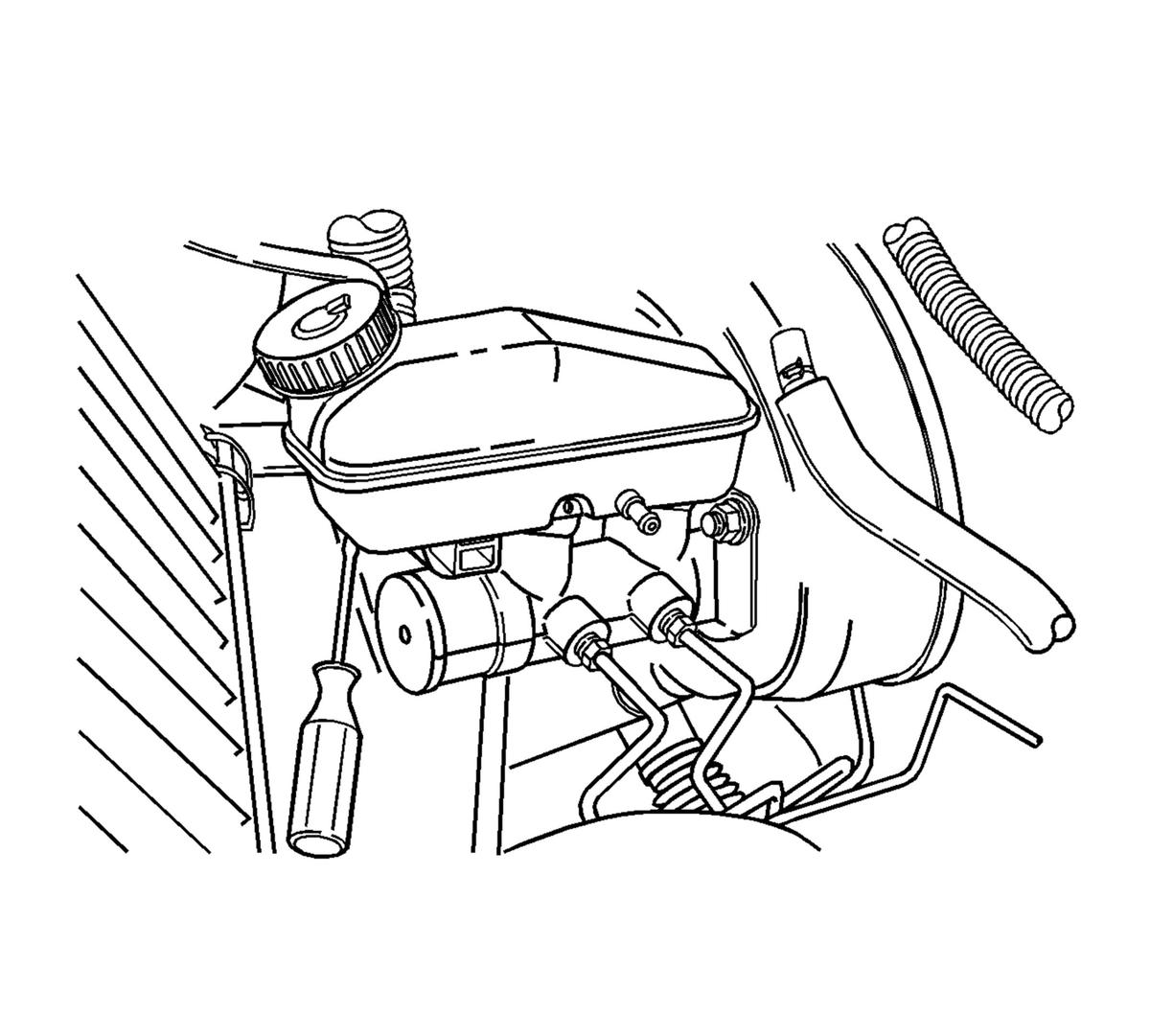

Fig 2: Prying Upward To Release Reservoir

Courtesy of GENERAL MOTORS CORP.

For vehicles with the manual transaxle, disconnect the clip to the clutch hose connection at the master cylinder.
Gently pry upward with a screwdriver to release the reservoir.
Tilt the reservoir and pull it upward in order to remove it.

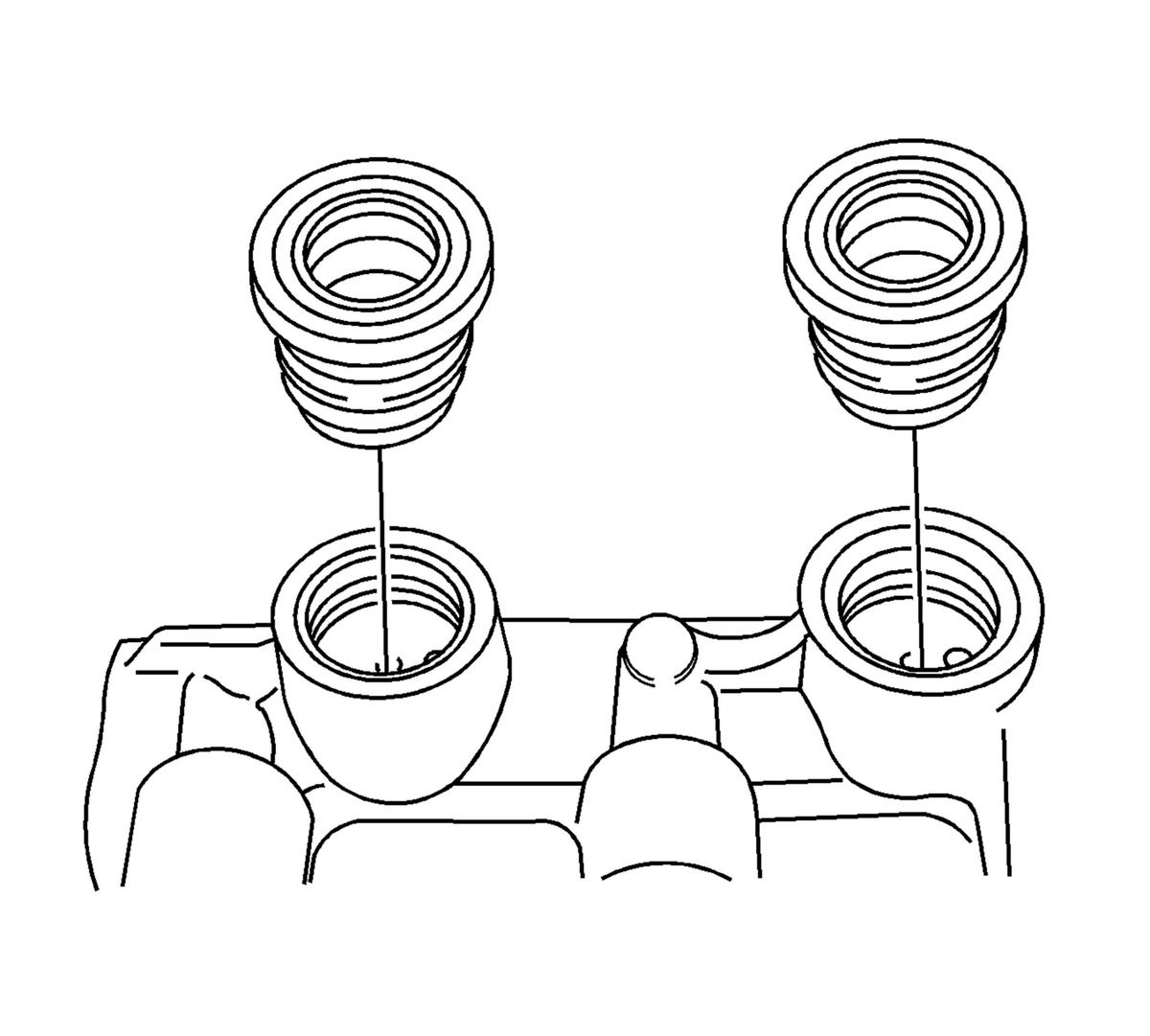

Fig 3: View of Reservoir Seals & Master Cylinder Body

Courtesy of GENERAL MOTORS CORP.

Remove the reservoir seals from the master cylinder body.
