Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

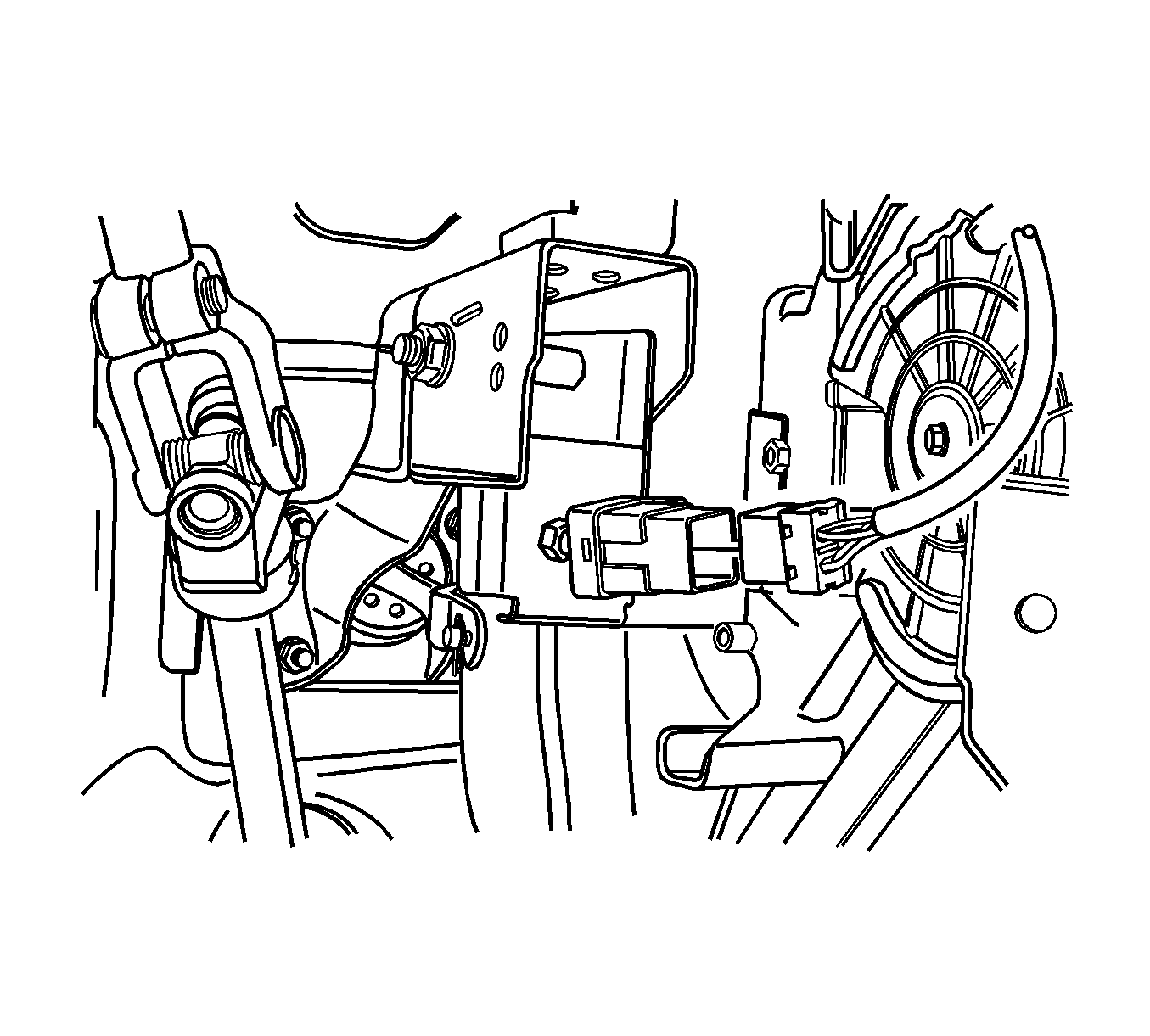

    Fig 1: View of Stop Lamp Switch, Retaining Ring, Pin, And Pushrod/Brake Pedal Connection Spring
    GM1242053Courtesy of GENERAL MOTORS CORP.
  1. Install a new brake pedal cover, if needed.
  2. Coat the pedal shaft with grease.
  3. Position the brake pedal on the pedal-to-dash panel bracket and the pedal shaft.
    4. NOTE: Refer to Fastener Notice .
  4. Place the nut on the pedal mounting shaft.

    Tighten:  Tighten the brake pedal-to-pedal bracket nut to 22 N.m (16 lb ft).

  5. Install the pushrod to the pedal with the pin and the retaining ring.
    6. Fig 2: Connecting Stop Lamp Switch And Connector Assembly
    GM1242051Courtesy of GENERAL MOTORS CORP.
  6. Install the spring on the shaft in its original position.
  7. Install the stop lamp switch. Refer to Stop Lamp Switch Replacement .
    8. Fig 3: View of Trim Panel With Screws
    GM1242050Courtesy of GENERAL MOTORS CORP.
  8. Install the trim panel with the screws.

    Tighten:  Tighten the trim panel screws to 7 N.m (62 lb in).
