Hydraulic Brake Component Views
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

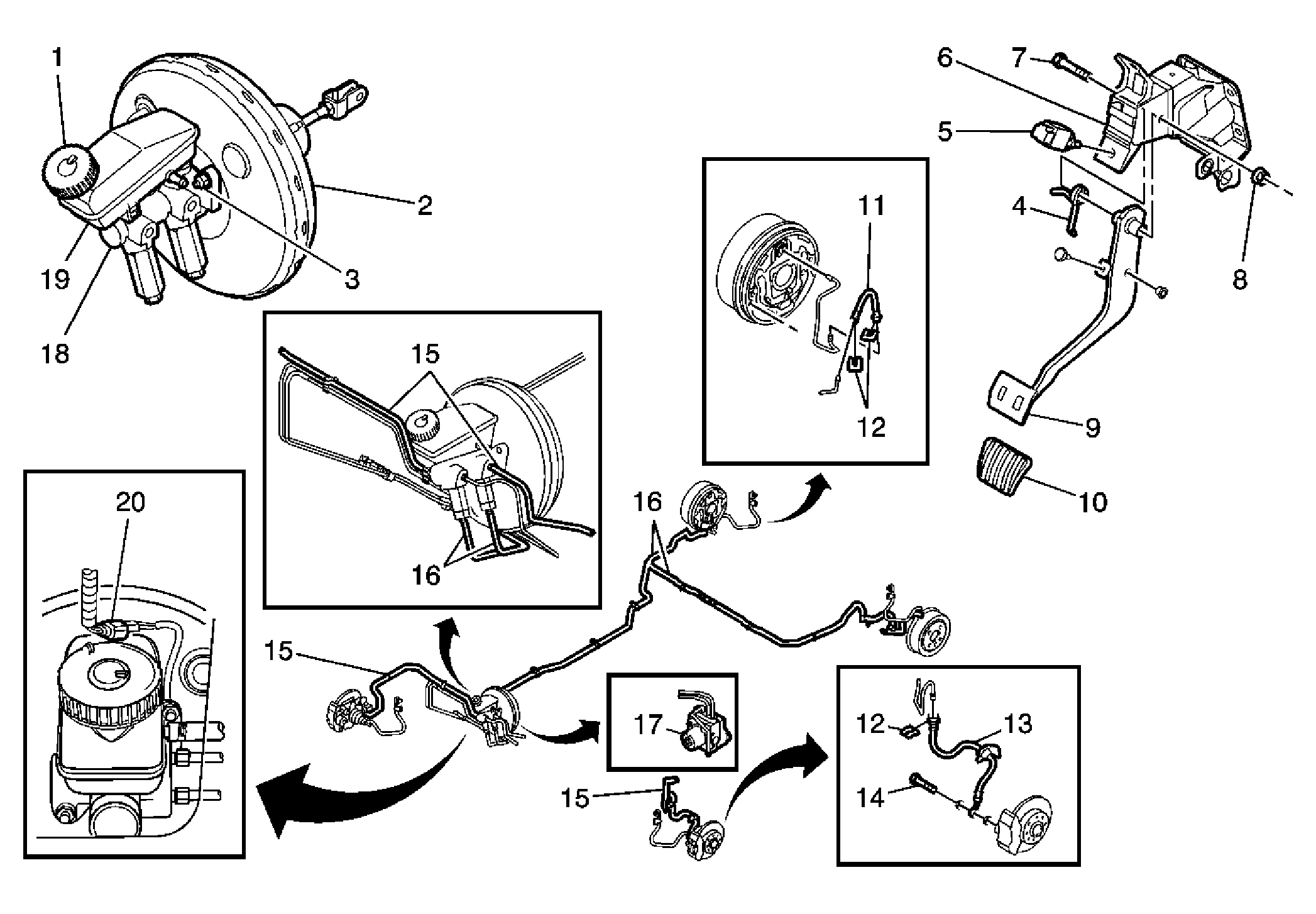

| Callout | Component Name |
|---|---|
| 1 | Brake Oil Tank Cap |
| 2 | Brake Booster |
| 3 | Brake Booster Nut |
| 4 | Spring |
| 5 | Stop Lamp Switch |
| 6 | Pedal Bracket Assembly |
| 7 | Pedal Bolt |
| 8 | Pedal Nut |
| 9 | Pedal |
| 10 | Brake Pedal Cover |
| 11 | Rear Brake Hose |
| 12 | E-Ring |
| 13 | Front Brake Hose |
| 14 | Union Bolt |
| 15 | Front Brake Pipe |
| 16 | Rear Brake Pipe |
| 17 | ABS Assembly |
| 18 | Master Cylinder |
| 19 | Brake Oil Tank |
| 20 | Brake Fluid Level Switch |

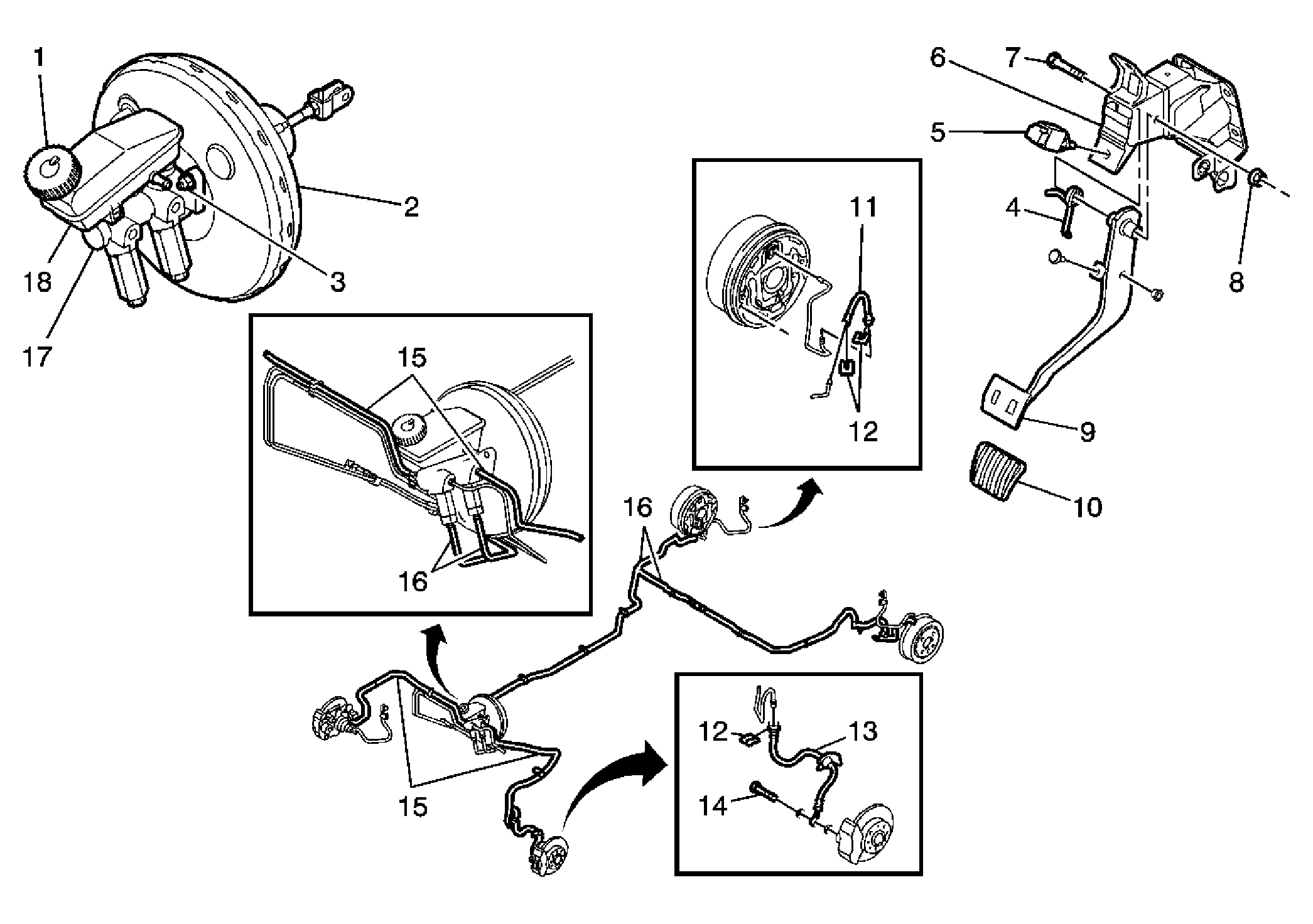

| Callout | Component Name |
|---|---|
| 1 | Brake Oil Tank Cap |
| 2 | Brake Booster |
| 3 | Brake Booster Nut |
| 4 | Spring |
| 5 | Stop Lamp Switch |
| 6 | Pedal Bracket Assembly |
| 7 | Pedal Bolt |
| 8 | Pedal Nut |
| 9 | Pedal |
| 10 | Brake Pedal Cover |
| 11 | Rear Brake Hose |
| 12 | E-Ring |
| 13 | Front Brake Hose |
| 14 | Union Bolt |
| 15 | Front Brake Pipe |
| 16 | Rear Brake Pipe |
| 17 | Master Cylinder |
| 18 | Brake Oil Tank |
| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch |
