Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

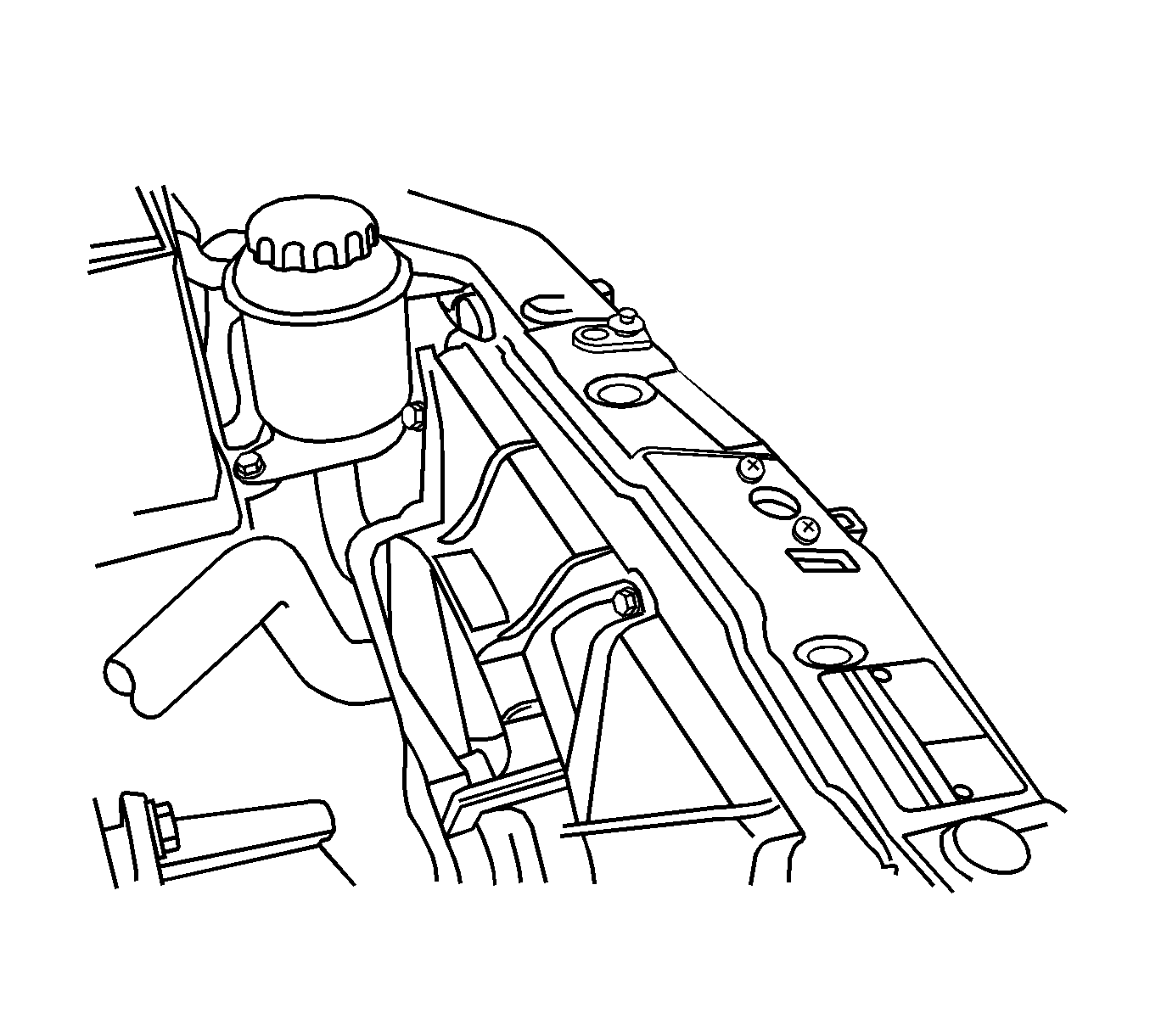

    Fig 1: View Of Electric Cooling Fan
    GM1241823Courtesy of GENERAL MOTORS CORP.
    CAUTION: If a fan blade is bent or damaged in any way, no attempt should be made to repair or reuse the damaged part. A bent or damaged fan assembly must be replaced with a new fan assembly. It is essential that fan assemblies remain in proper balance. A fan assembly that is not in proper balance can fail and fly apart during use, creating extreme danger. Proper balance cannot be assured on a fan assembly that has been bent or damaged.
  1. Install the electric cooling fan(s).

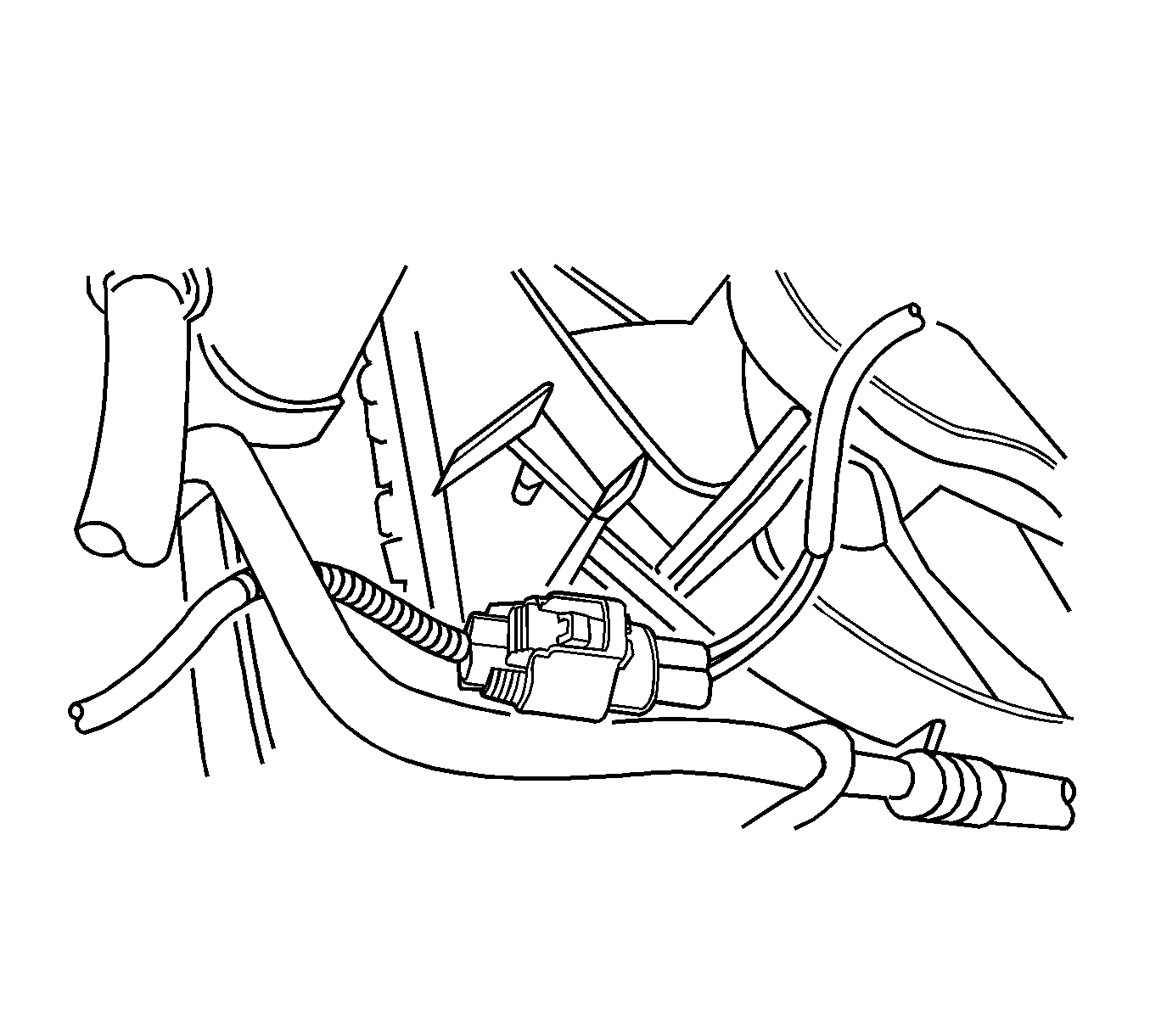

    2. Fig 2: View Of Cooling Fan Electrical Connectors
    GM1241822Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the electric cooling fan mounting bolts.

    Tighten:  Tighten the electrical cooling fan mounting bolts to 4 N.m (35 lb in).

  3. Connect the cooling fan electrical connector.
