Installation Procedure
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

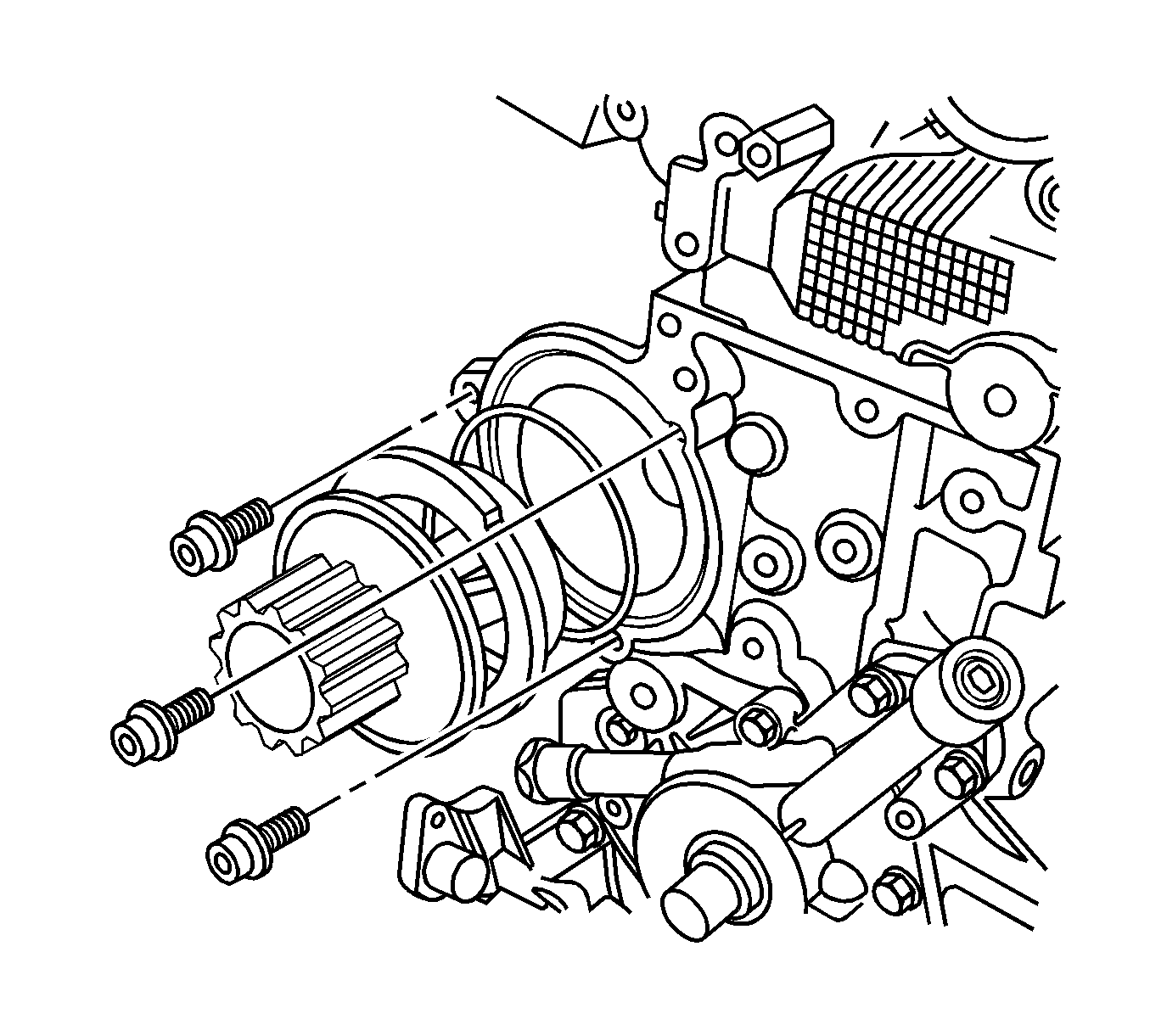

- Install a new ring seal to the coolant pump.
- Coat the sealing surface of the ring seal with Lubriplate®.
- Install the coolant pump to the engine block.
- Secure the coolant pump to the engine block with the mounting bolts.
Tighten: Tighten the coolant pump mounting bolts to 10 N.m (89 lb in).
- Install the rear timing belt rear hood. Refer to Timing Belt Replacement.
- Refill the engine cooling system. Refer to Cooling System Draining and Filling .
NOTE:
Refer to Fastener Notice.
