Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

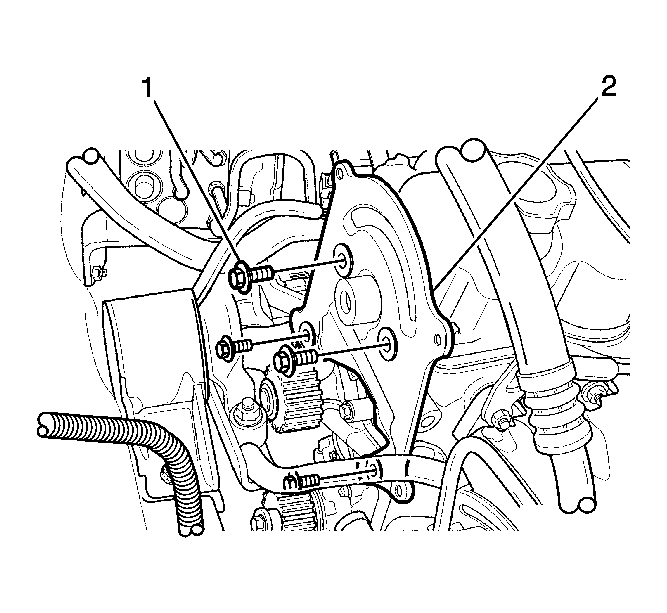

Fig 1: View Of Rear Timing Belt Cover And Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution.

Disconnect the negative battery cable.
Drain the coolant. Refer to Cooling System Draining and Filling .
Remove the rear timing belt cover (2). Refer to Timing Belt Cover Replacement.

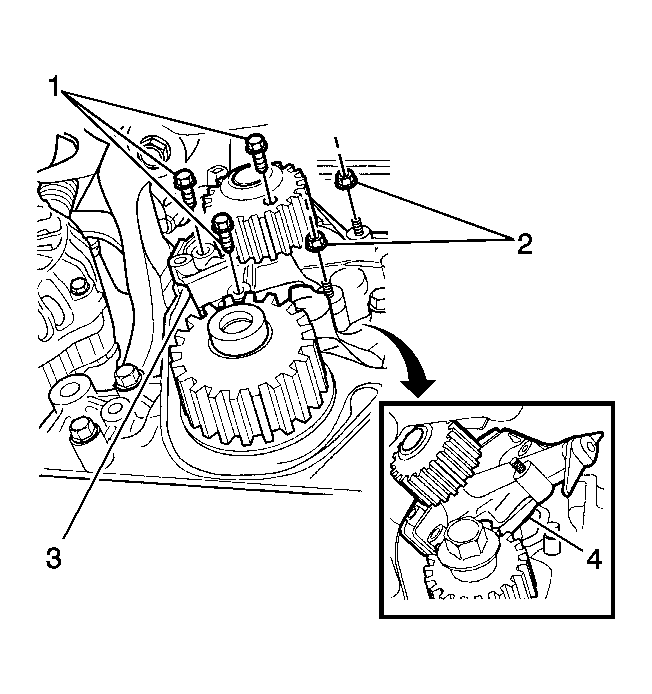

Fig 2: Coolant Pump, Nuts, And Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the coolant pump nuts (2).
Remove the bolts (1).
Remove the coolant pump (3,4).
Remove the gasket.
