Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

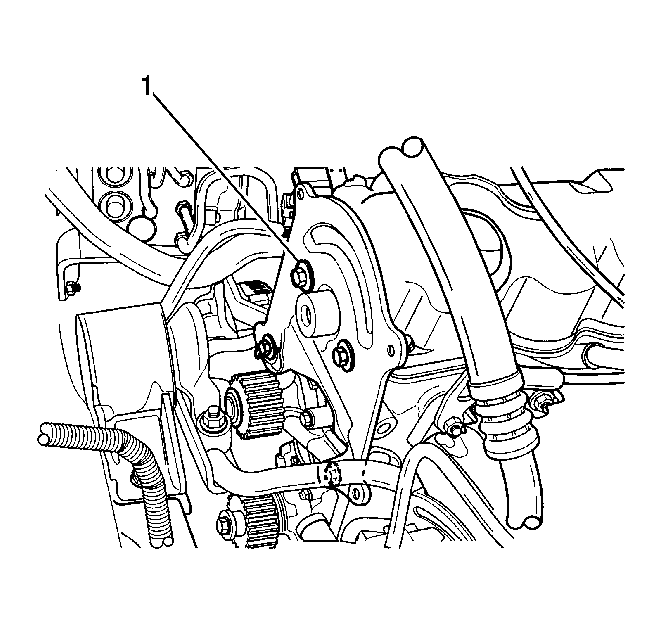

Fig 1: Coolant Pump And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice.

Install the coolant pump with new gasket.
Install the coolant pump mounting bolts (1) and nuts.
Tighten: Tighten the bolts and the nuts to 10 N.m (89 lb in).

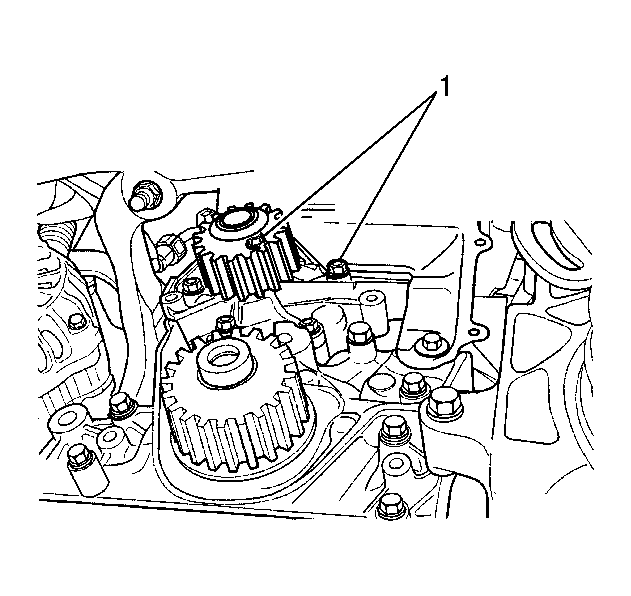

Fig 2: Rear Timing Belt Cover

Courtesy of GENERAL MOTORS CORP.

Install the rear timing belt cover (1). Refer to Timing Belt Cover Replacement.
Fill the engine cooling system. Refer to Cooling System Draining and Filling .
Connect the negative battery cable.
