Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

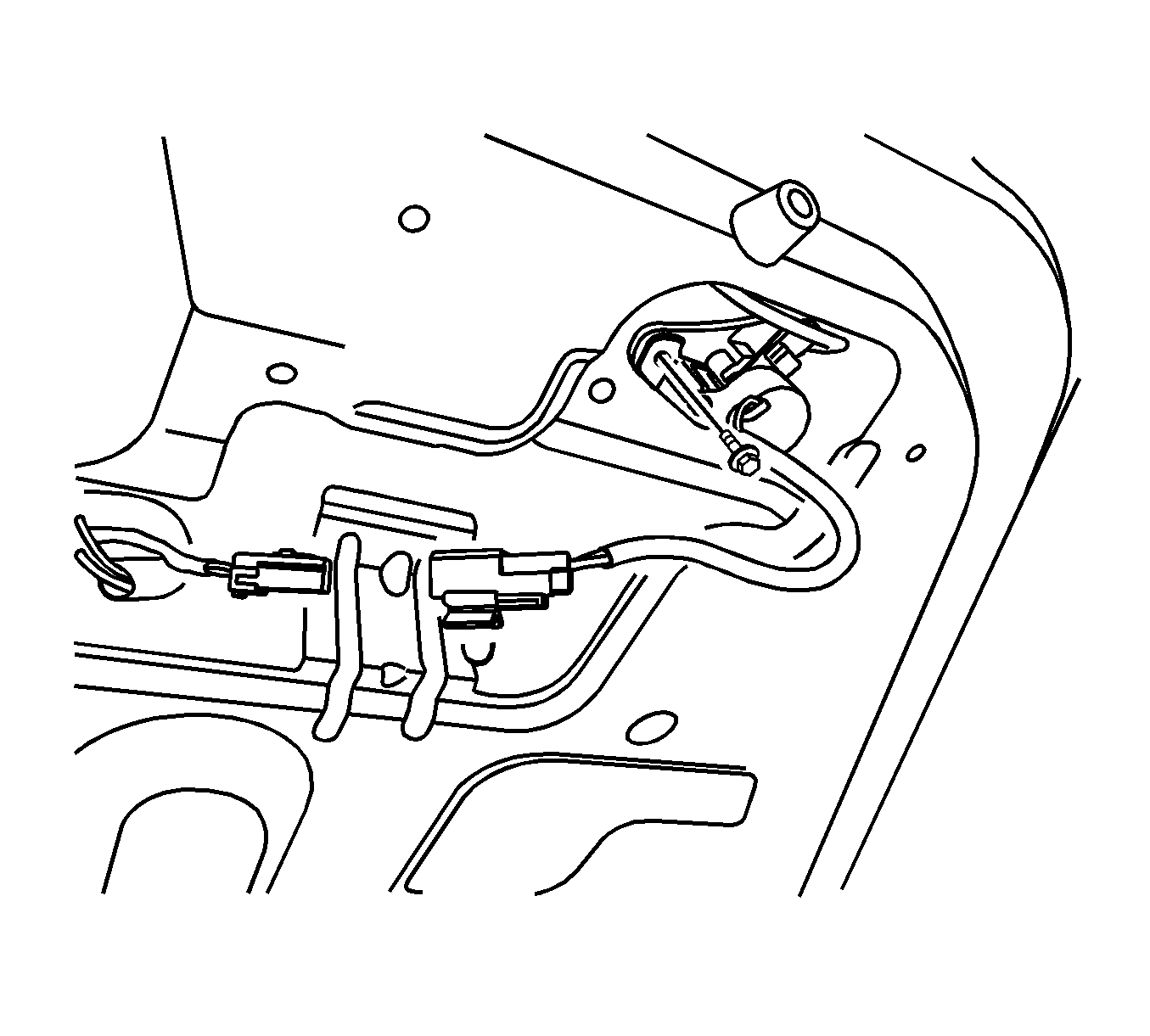

Fig 1: Rear Compartment Lid Lock Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the lock cylinder with the bolt.
Tighten: Tighten the luggage compartment lock cylinder bolt to 4 N.m (35 lb in).
Connect the lock rod.
Install the rear compartment lid trim with the clips.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
