Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View of Inside Lock Rods From Door Handle and Lock

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Remove the water deflector. Refer to Door Water Deflector Replacement .
Disconnect the inside door handle and the lock rods.

Fig 2: Outside Door Handle Assembly

Courtesy of GENERAL MOTORS CORP.

Disconnect the outside door handle and the lock rods.

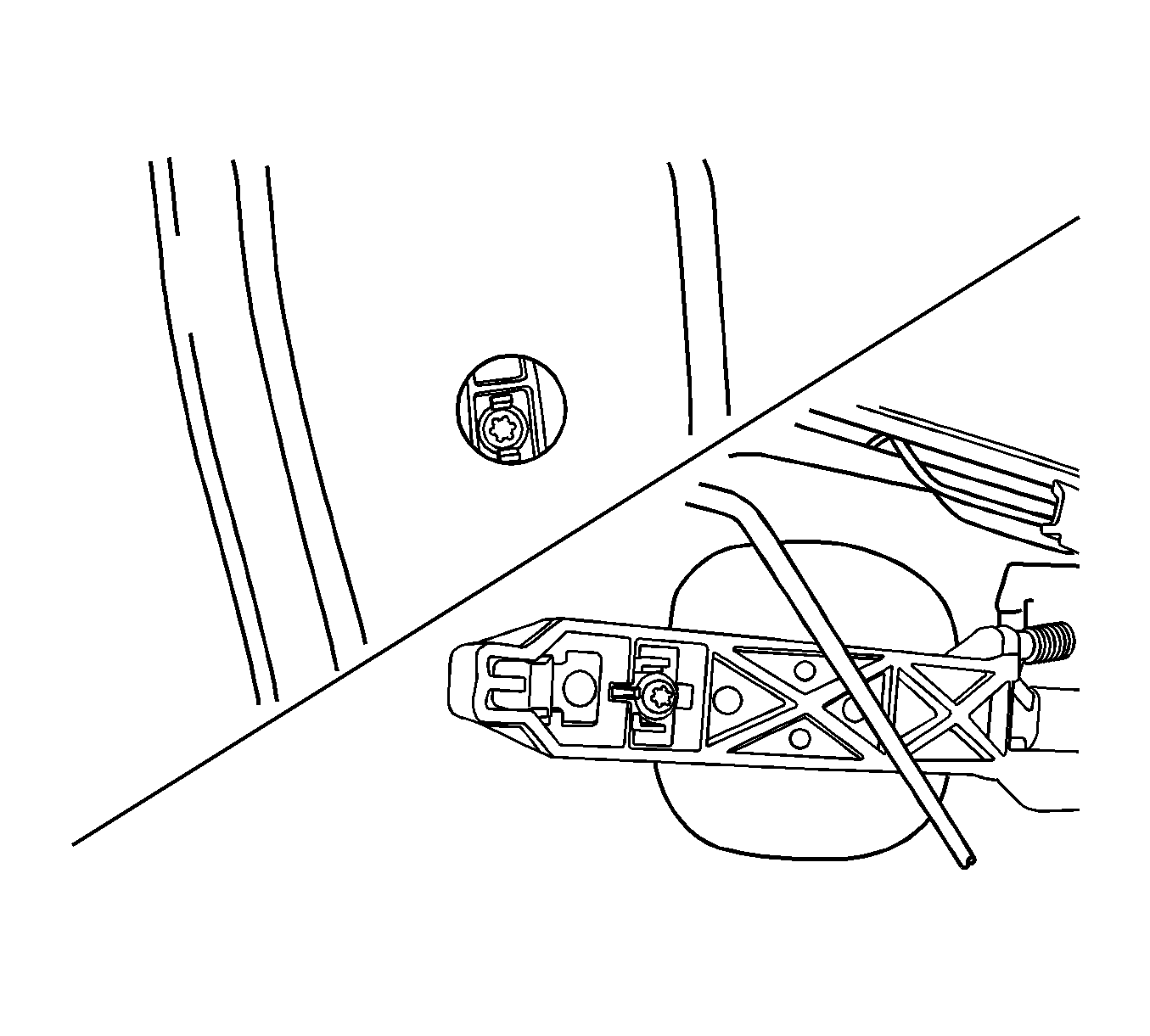

Fig 3: Outside Door Handle

Courtesy of GENERAL MOTORS CORP.

Remove the outside door handle.

Fig 4: View of Bolts and Guide Rail

Courtesy of GENERAL MOTORS CORP.

Remove the bolts and the guide rail.
Remove the screws and the front door lock.
Disconnect the electrical connector.
