HVAC Schematics

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

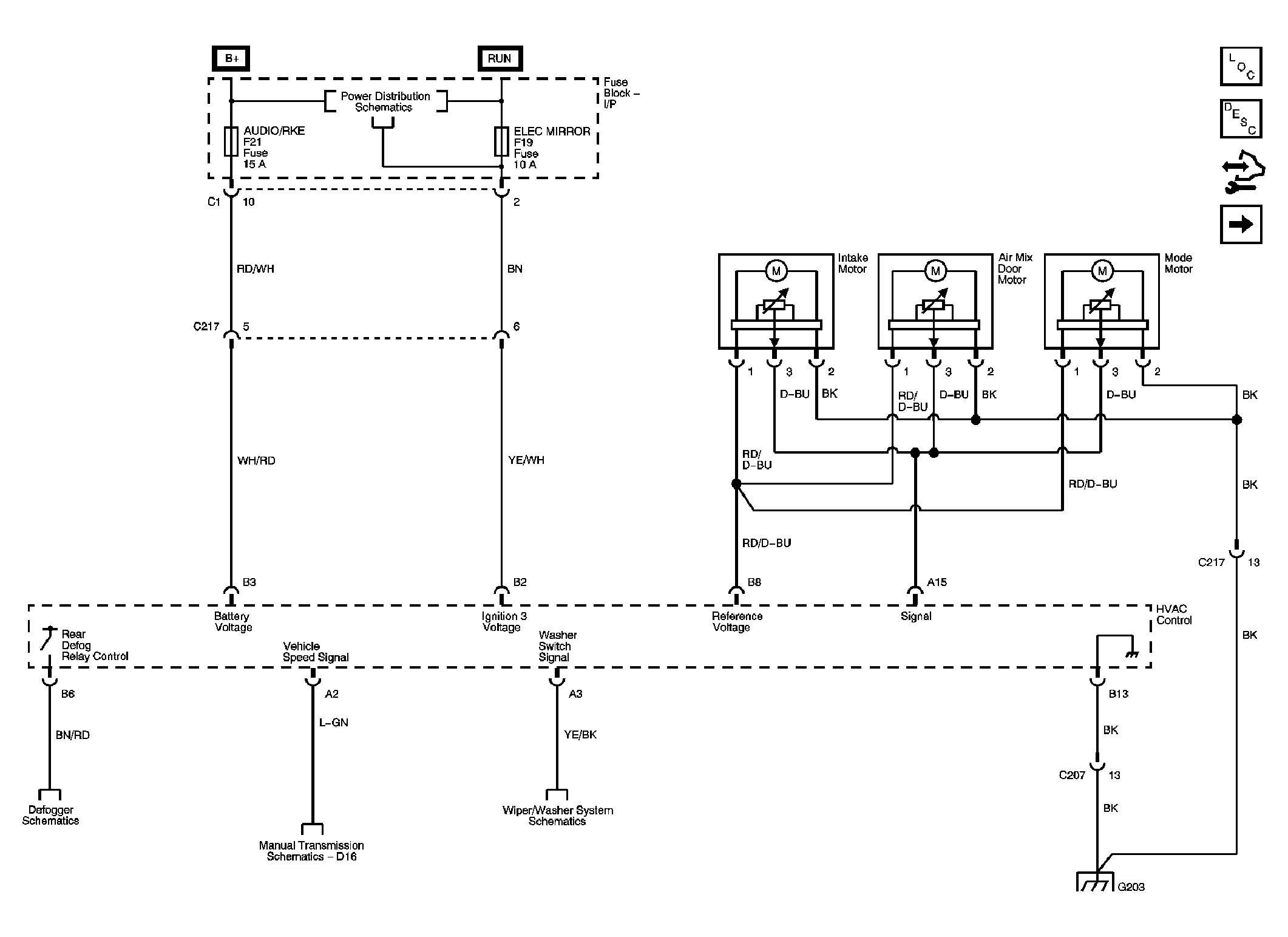

Fig 1: HVAC Control, Intake, Air Mix, Mode Motors

Courtesy of GENERAL MOTORS CORP.

Fig 2: Blower Control

Courtesy of GENERAL MOTORS CORP.

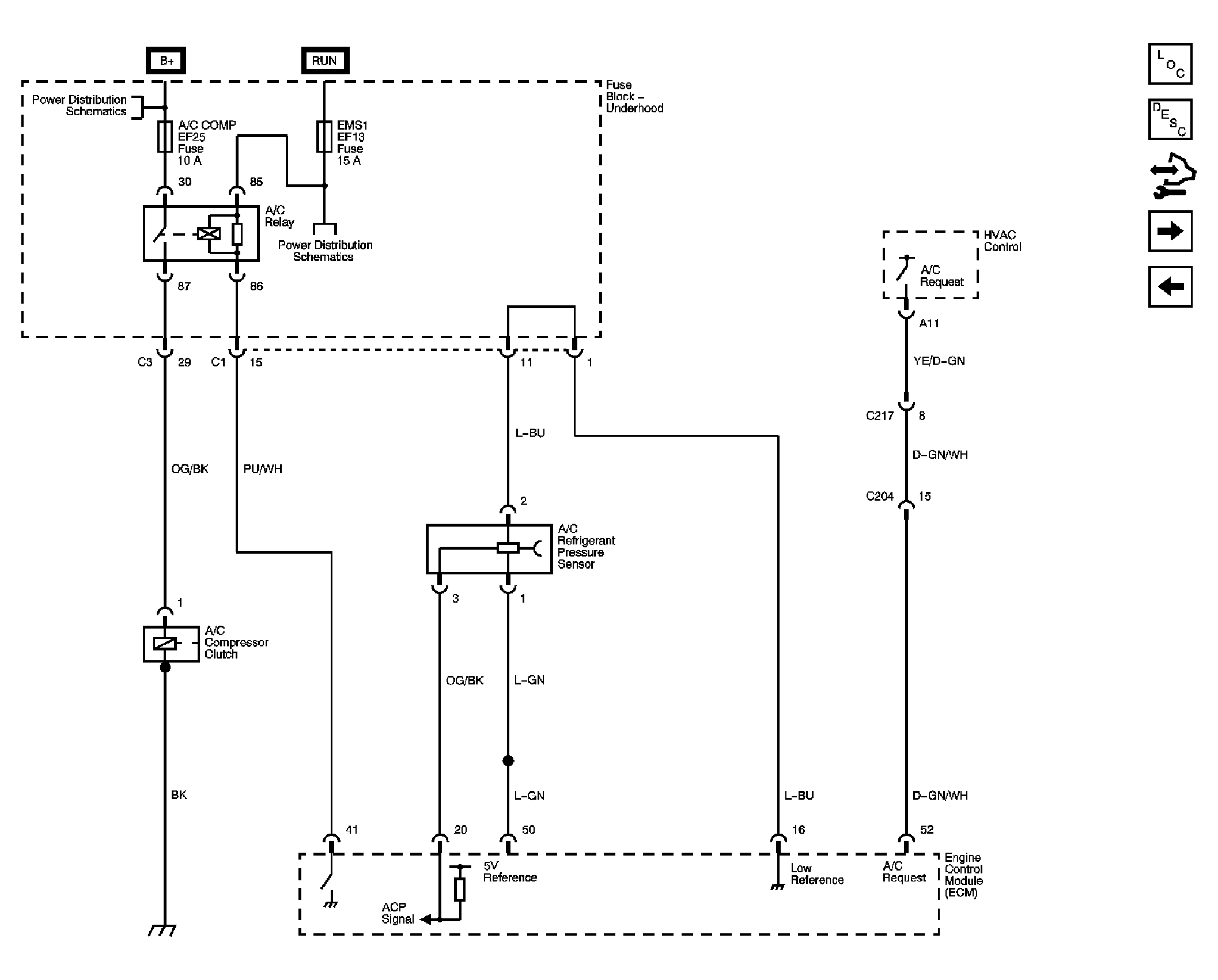

Fig 3: Compressor Control Sirius D42

Courtesy of GENERAL MOTORS CORP.

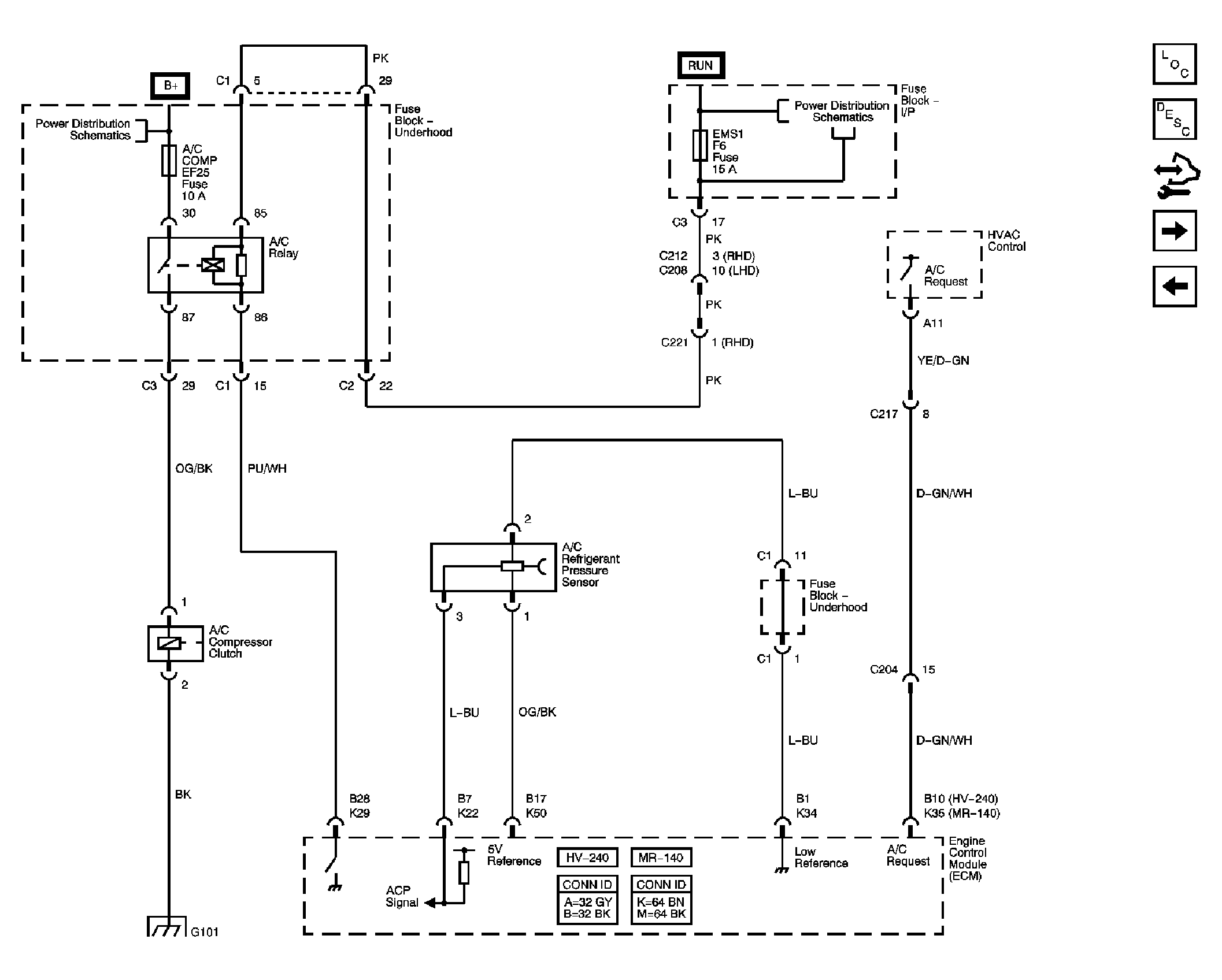

Fig 4: Compressor Control MR140, HV240

Courtesy of GENERAL MOTORS CORP.

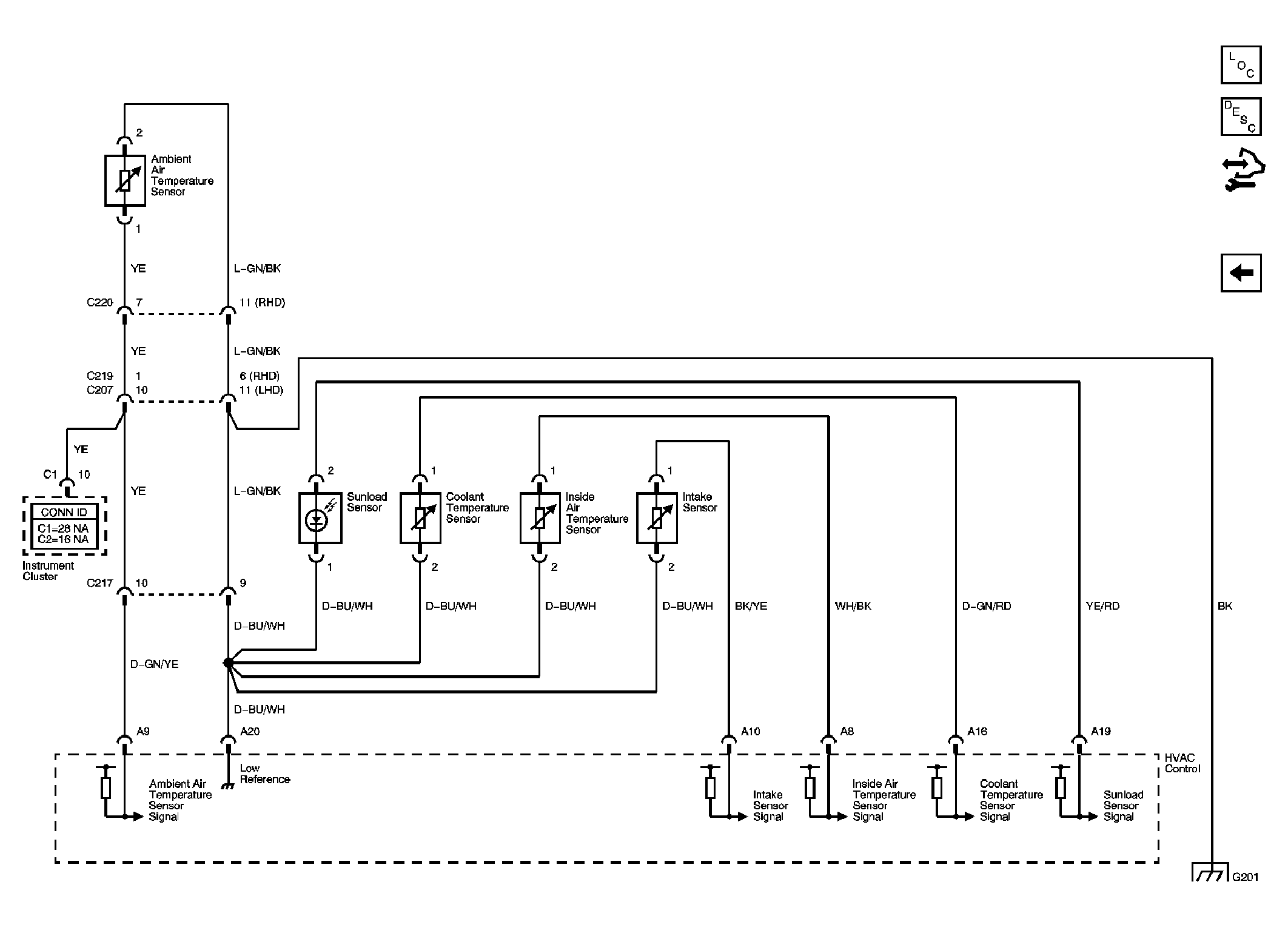

Fig 5: HVAC Control, HVAC Sensors

Courtesy of GENERAL MOTORS CORP.
