Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Intake Sensor With Connector

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: To achieve peak air conditioning performance the intake sensor should be located at column 8 and a height of 65mm.

Install the intake sensor with the connector.

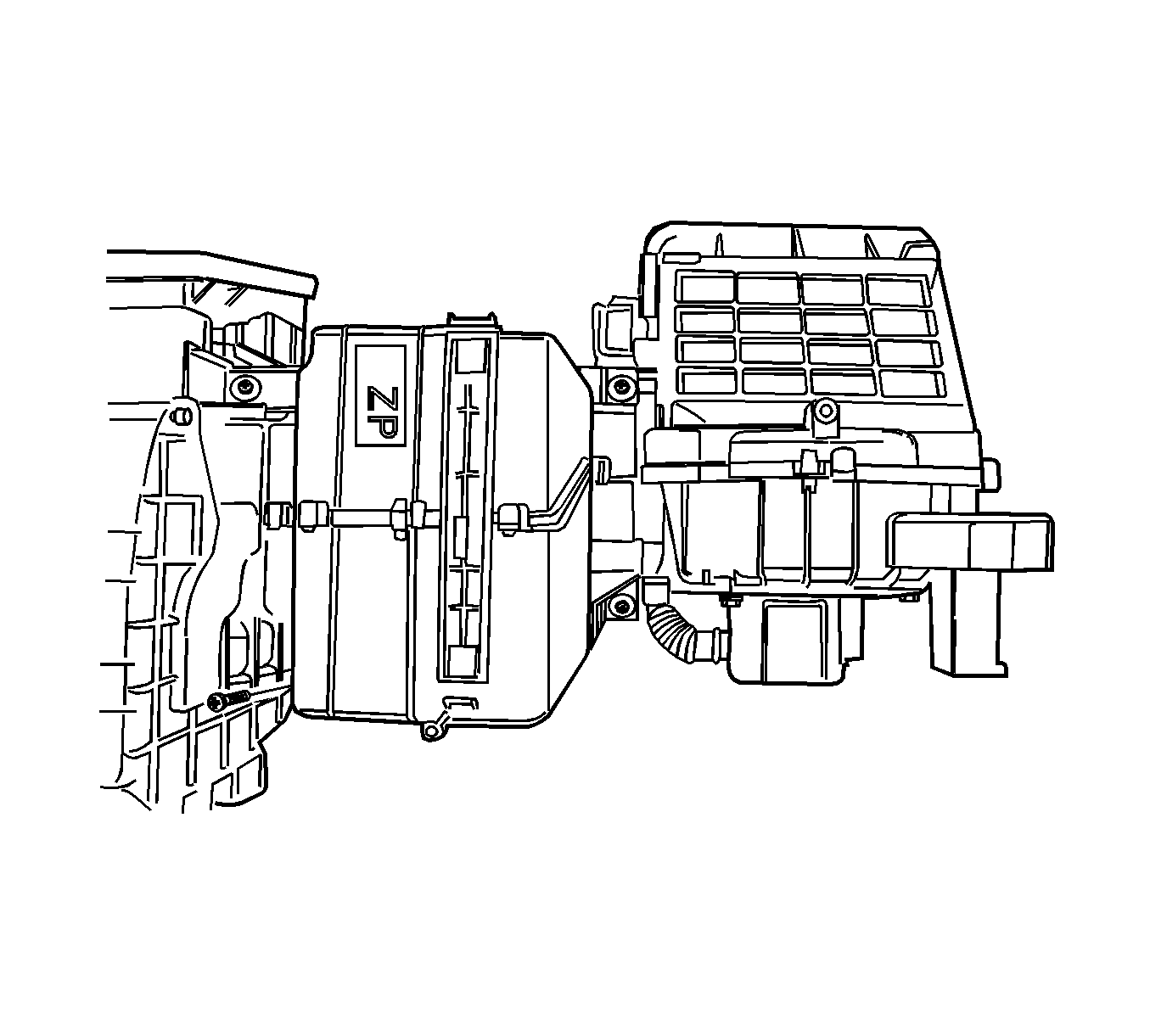

Fig 2: Evaporator Case Cover & Screws

Courtesy of GENERAL MOTORS CORP.

Install the evaporator core. Refer to Air Conditioning Evaporator Core Replacement .
Connect the negative battery.
