Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

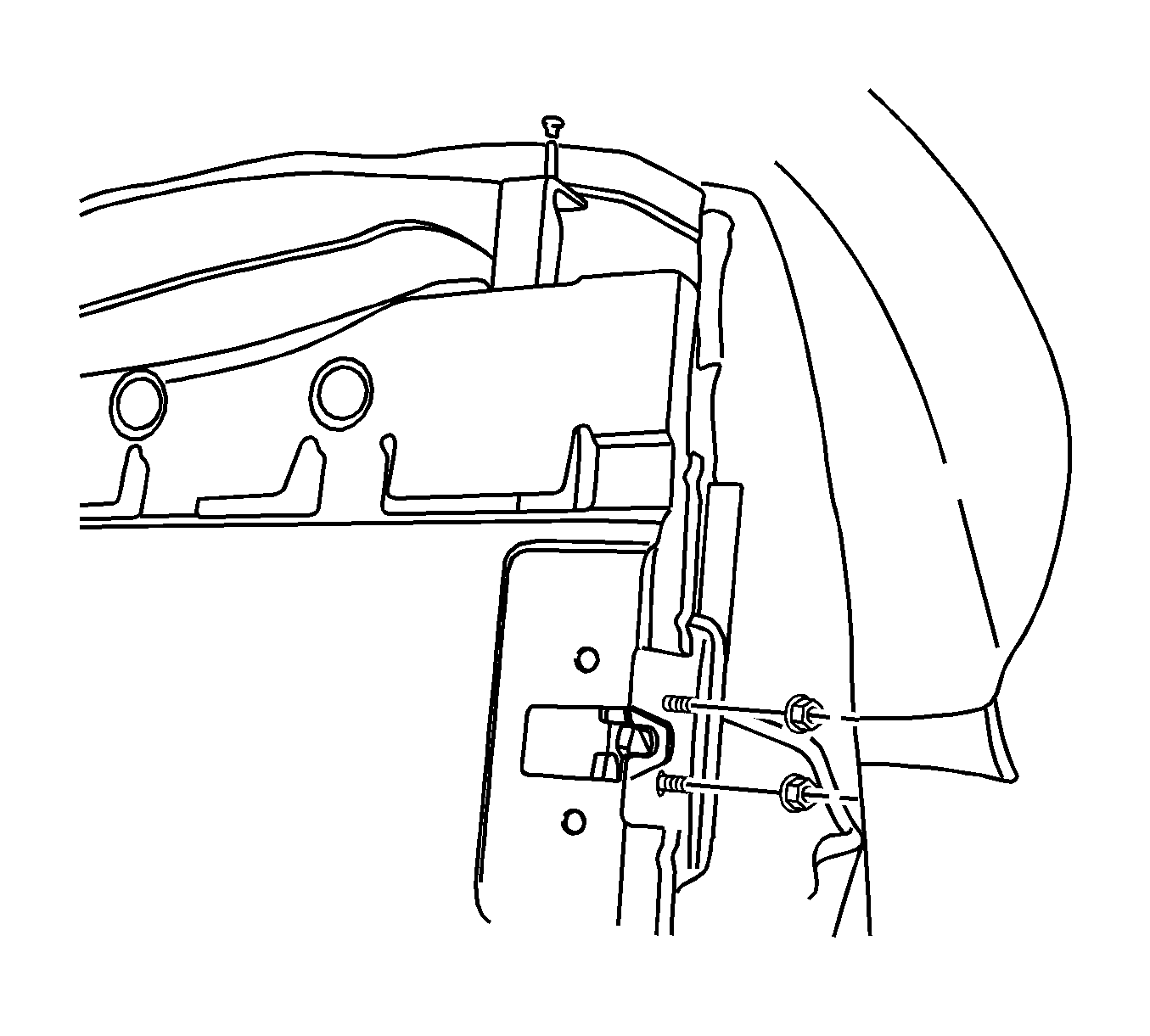

Fig 1: View of Rear Seat Back and Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear seatback lock assembly with the screws.
Tighten: Tighten the rear seat back lock assembly screws to 20 N.m (15 lb ft).
Install the rear seatback cover to its original position.
Install the rear seatback lock release knob.
