Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

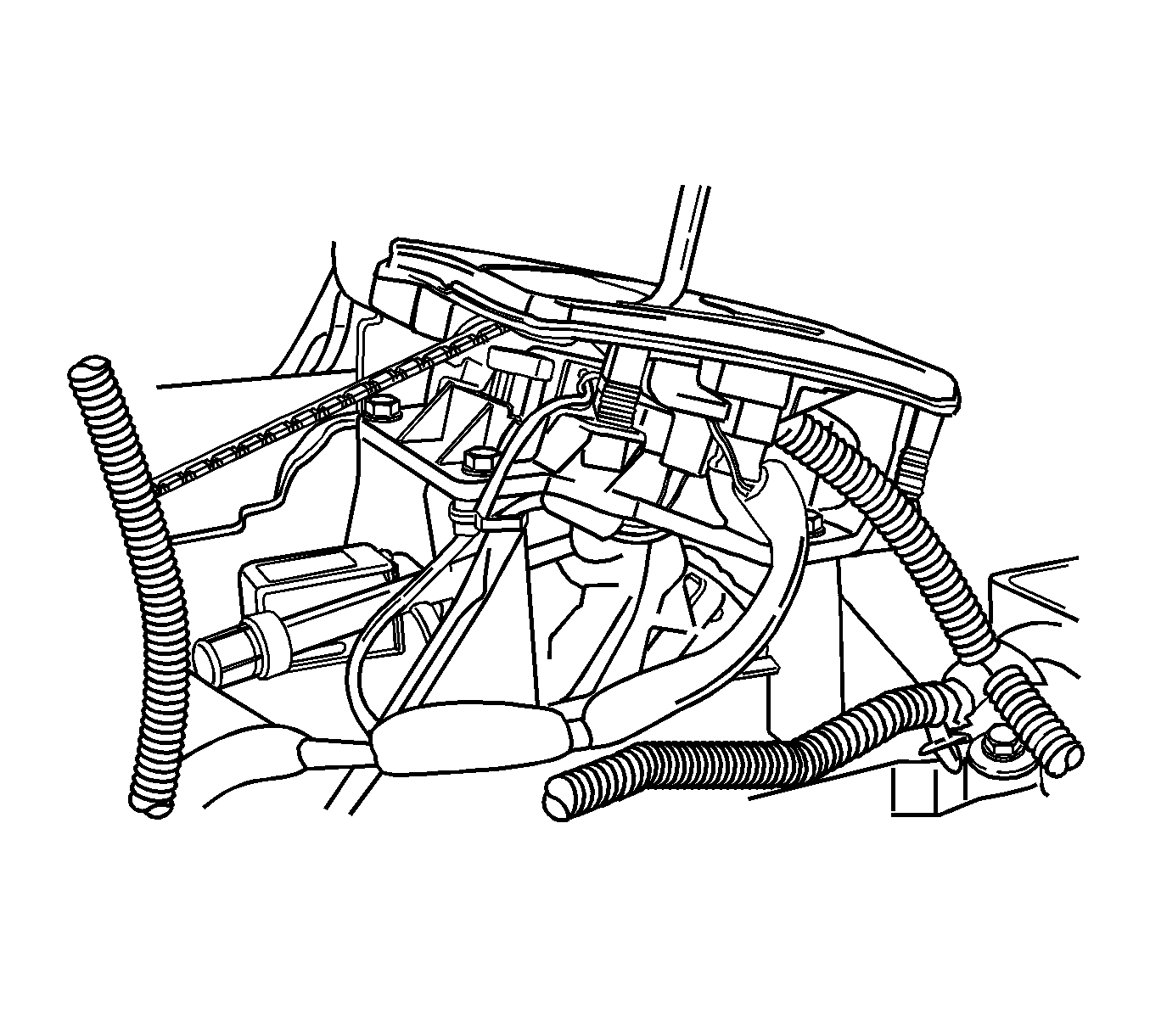

    Fig 1: Shift Select Cover, Shift Select Housing & Connectors
    GM1245827Courtesy of GENERAL MOTORS CORP.
  1. Connect the connectors to the shift select cover.
  2. Install the shift select cover to the hole.

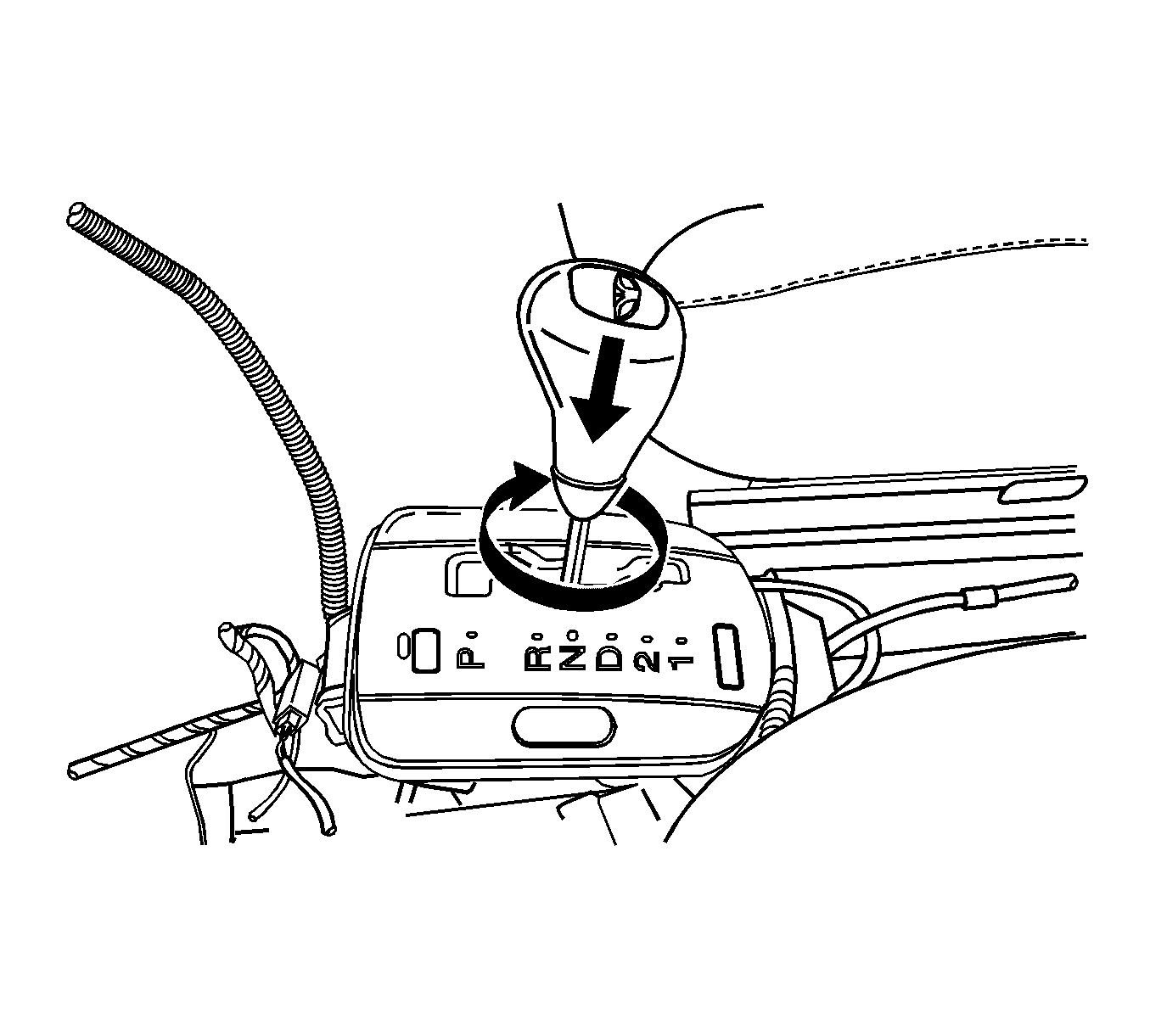

    3. Fig 2: Installing Shift Select Lever Knob
    GM1245831Courtesy of GENERAL MOTORS CORP.
  3. Install the shift select lever knob.
  4. Install the floor console. Refer to Front Floor Console Replacement (Notchback)  or Front Floor Console Replacement (Hatchback) .
  5. Connect the negative battery cable.
