Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

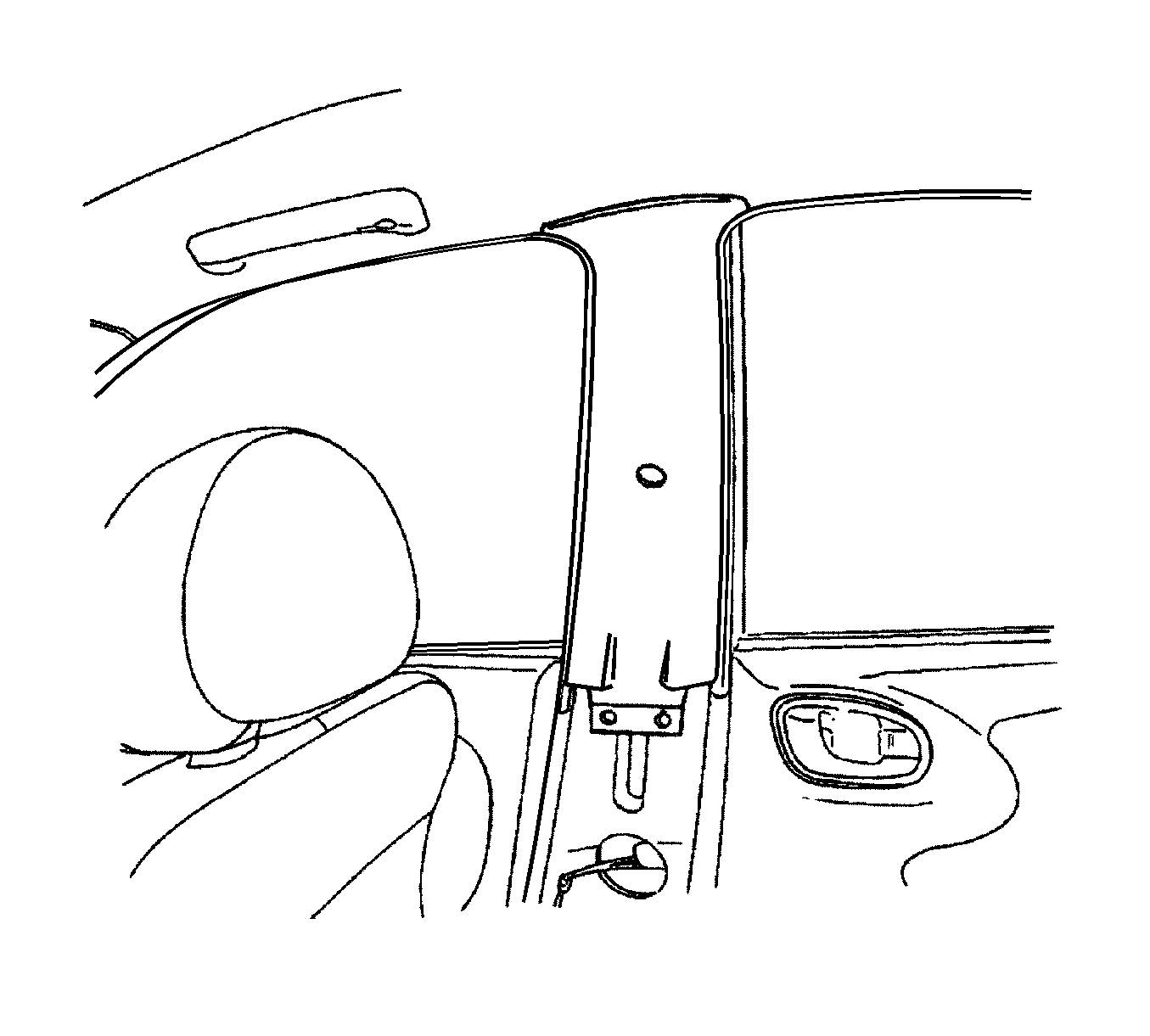

Fig 1: View of Center Pillar Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the upper center pillar trim panel.

Fig 2: View of Lower Center Pillar Trim Panel, Seat Belt Bracket, and Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the seat belt bracket with the screws.
Tighten: Tighten the seat belt bracket screws to 10 N.m (89 lb in).

Fig 3: View of Upper Front Seat Belt Anchor

Courtesy of GENERAL MOTORS CORP.

Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar .
Install the upper front seat belt anchor with the bolt.
Tighten: Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
