Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

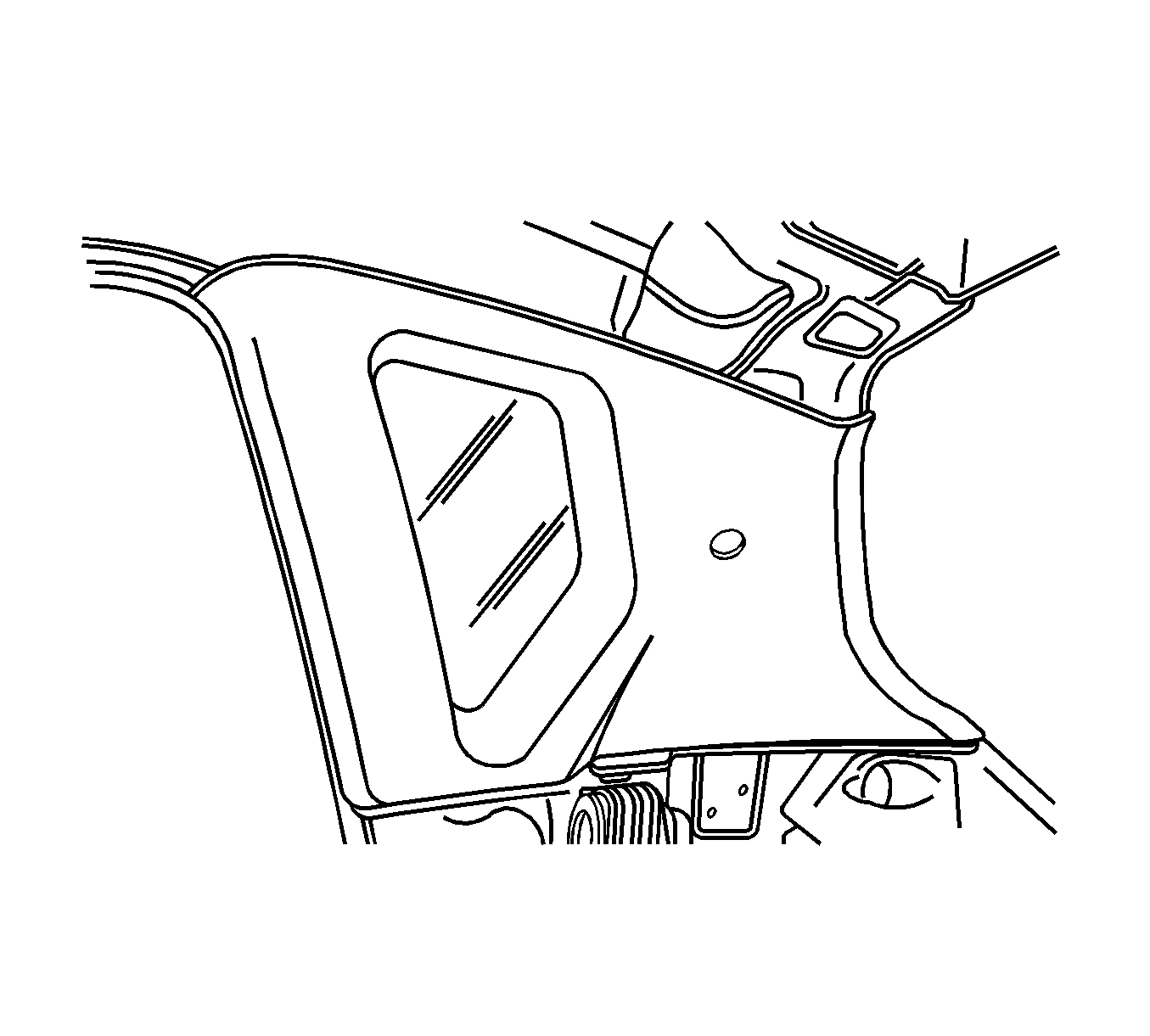

    Fig 1: View of Rear Upper Trim Paned & Rear Rocket Trim Panel
    GM1248492Courtesy of GENERAL MOTORS CORP.
  1. Install the rear quarter upper trim panel.
  2. Install the rear rocker trim panel.

    Refer to Door Sill Plate Replacement - Rear .

  3. Install the seat belt from the rear quarter upper trim panel.
