Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Installing Trim Panel
    GM1248475Courtesy of GENERAL MOTORS CORP.
  1. Install the trim panel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws at the base of the trim panel.

    Tighten:  Tighten the trim panel screws to 3.5 N.m (31 lb in).

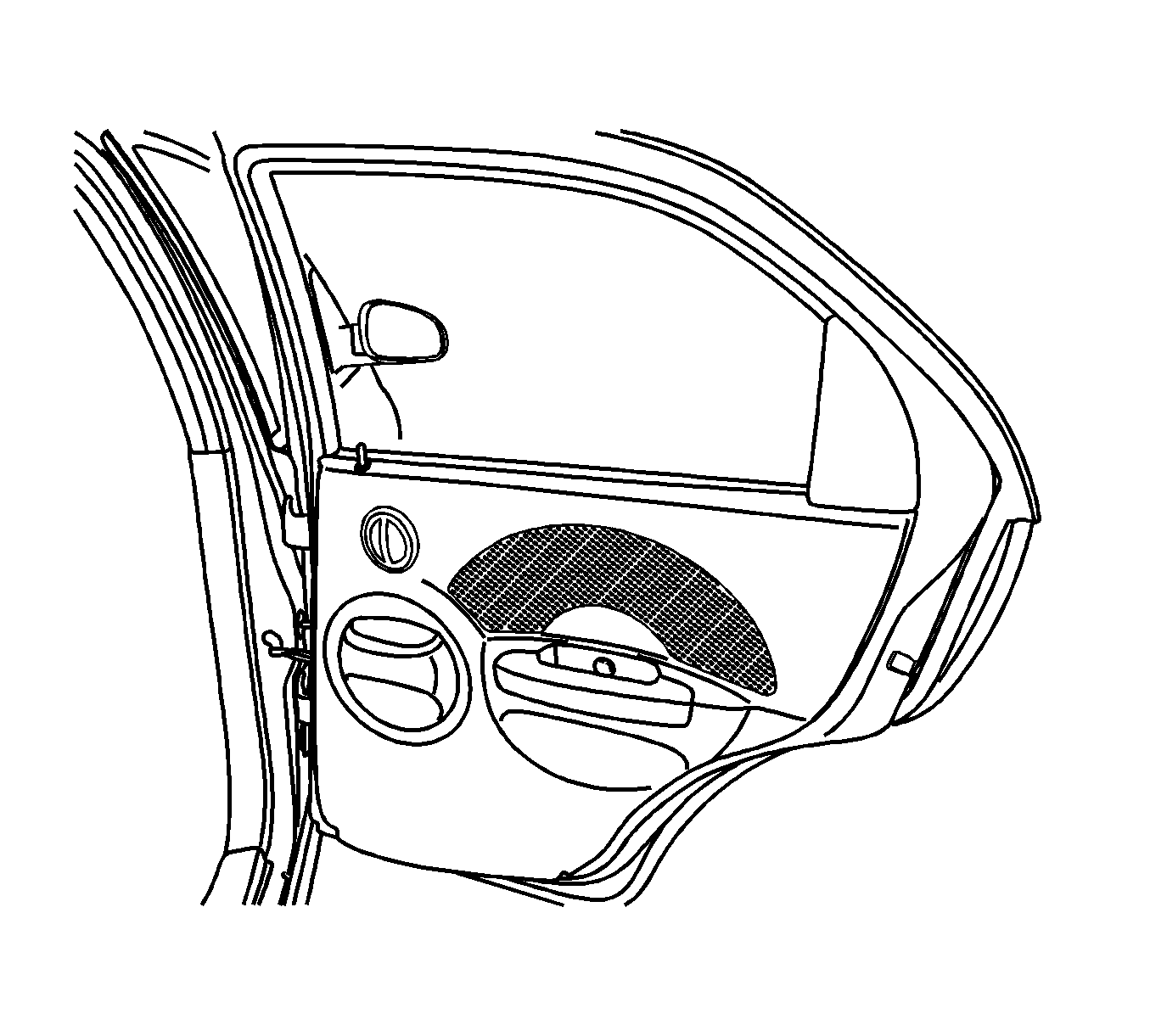

    3. Fig 2: View of Rear Window Regulator, Door Pull Screw and Inside Door Handle
    GM1545027Courtesy of GENERAL MOTORS CORP.
  3. Install the rear door interior garnish molding.
  4. Install the inside door handle.
  5. Install the door pull screw.

    Tighten:  Tighten the door pull screw to 3.5 N.m (31 lb in).

  6. Install the rear window regulator handle. Refer to Window Regulator Handle Replacement - Door in Doors.
  7. Raise the window.
