Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

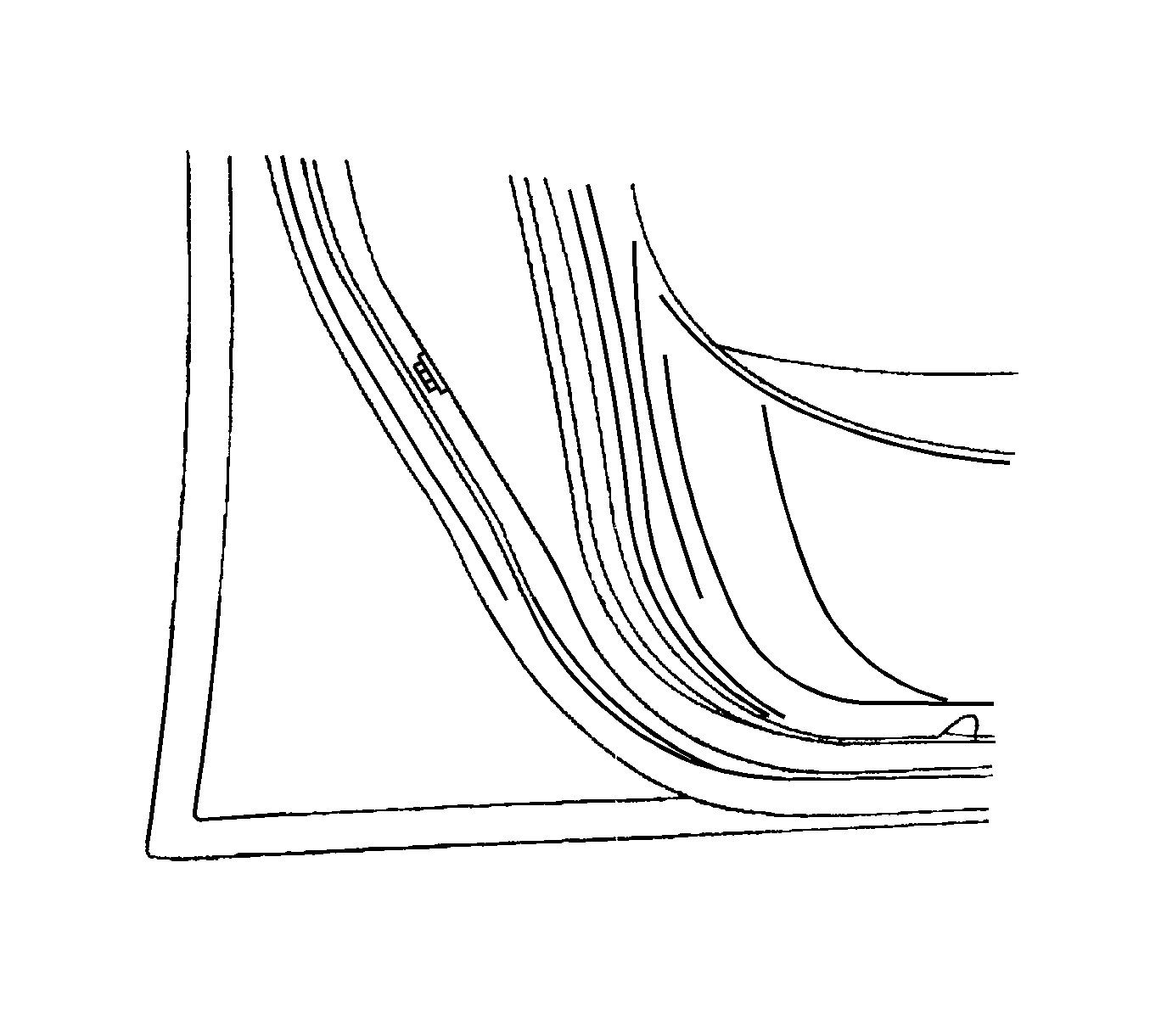

    Fig 1: Installing Trim Panel
    GM1248475Courtesy of GENERAL MOTORS CORP.
  1. Install the trim panel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws at the base of the trim panel.

    Tighten:  Tighten the trim panel screws to 3.5 N.m (31 lb in).

  3. Install the inside door handle.
    4. Fig 2: View of Door Pull Screw
    GM1248473Courtesy of GENERAL MOTORS CORP.
  4. Install the door pull screw.

    Tighten:  Tighten the door pull screw to 3.5 N.m (31 lb in).

  5. Raise the window.
