Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

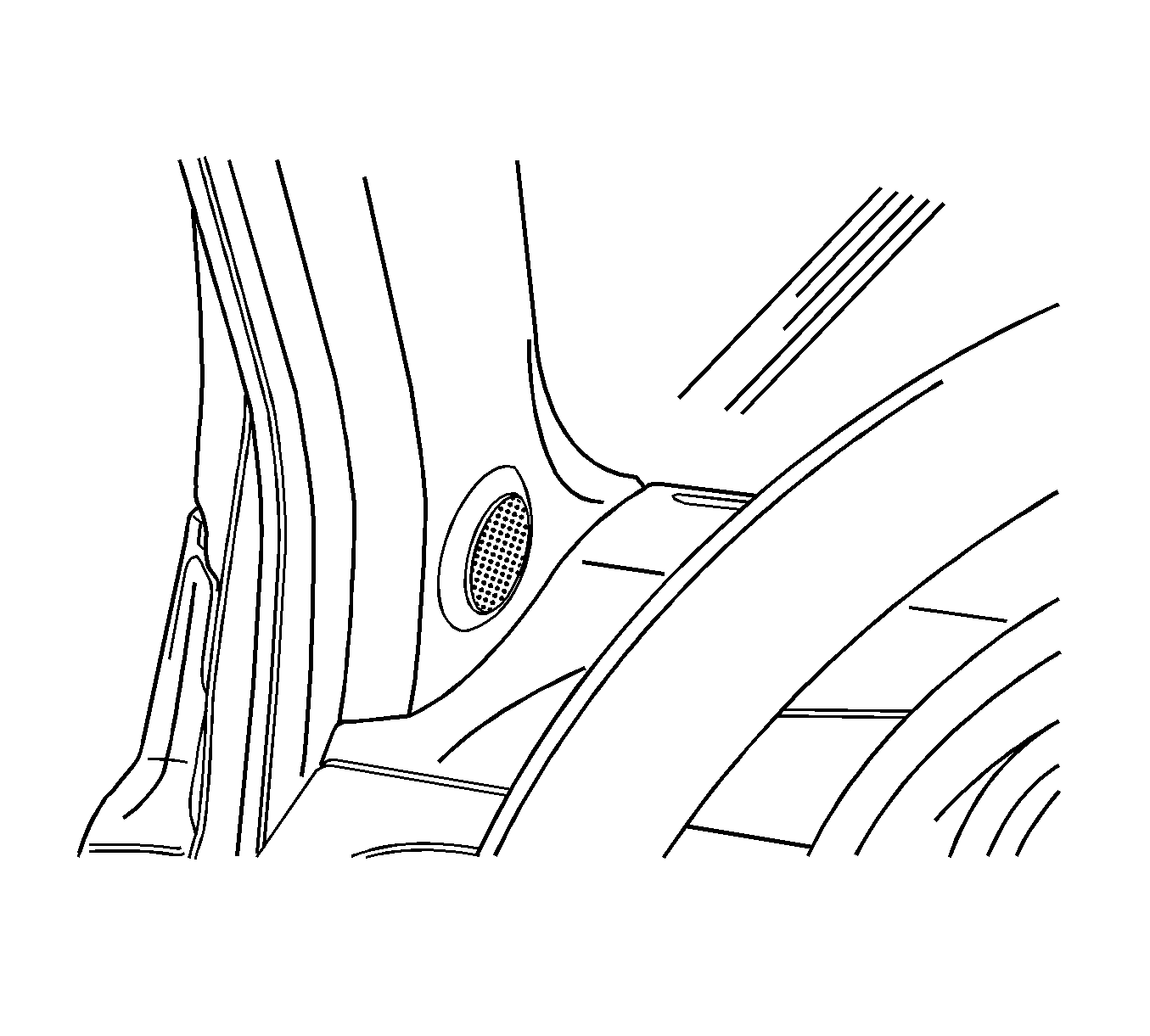

Fig 1: View of Headliner Along Rear Window and Plastic Retainers

Courtesy of GENERAL MOTORS CORP.

Recline both front seats.
Tilt the headliner on its side and slide it through a rear door.
Tilt and rotate the headliner until it is in position. Push it in place until the seals around the doors cover the edges of the headliner.
Install the plastic retainers along the rear window.

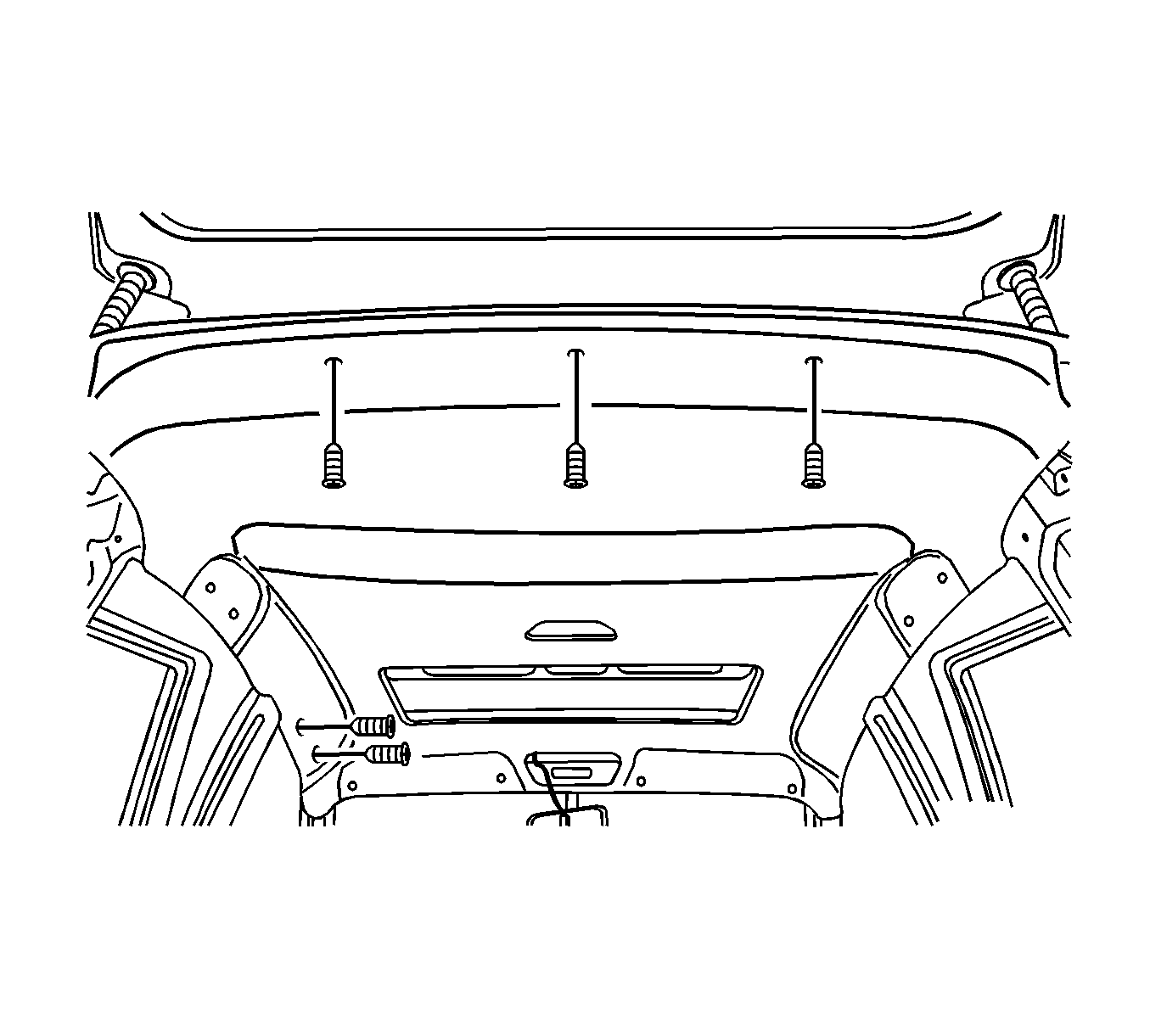

Fig 2: View of Headliner and Plastic Retainers

Courtesy of GENERAL MOTORS CORP.

Install the plastic retainers in the headliner on the driver's side.

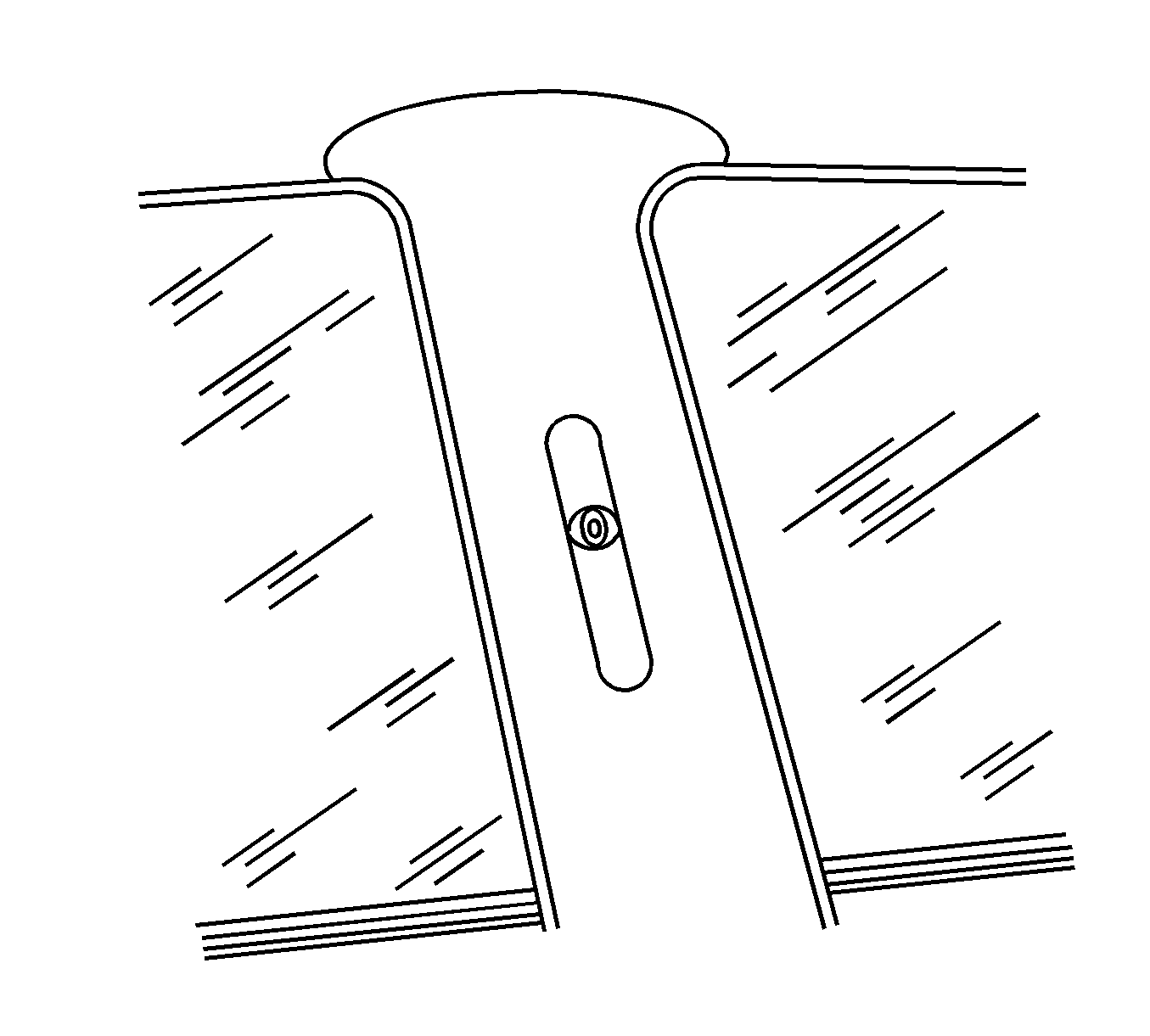

Fig 3: View of the Top of Left and Right Upper/Center Pillar Trim Panels

Courtesy of GENERAL MOTORS CORP.

Install the sunroof molding, if equipped.
Install the left and the right rear quarter upper trim panels.
Install the top of the left and the right upper/center pillar trim panels to the original position.

Fig 4: View of Left and Right Lower/Center Pillar Seat Belt Anchors

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the seat belt anchors with the bolts in the left and the right upper/center pillar panels.
Tighten: Tighten the upper/center pillar seat belt bolts to 38 N.m (28 lb ft).

Fig 5: View of Windshield Pillar Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the left and the right windshield pillar trim panels.
Install the interior courtesy lamp. Refer to Courtesy Lamp Replacement - Interior in Lightning Systems.
Install the sun visors. Refer to Sunshade Replacement .
Install the coat hook. Refer to Coat Hook Replacement .
Install the passenger assist handles. Refer to Assist Handle Replacement .
