Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

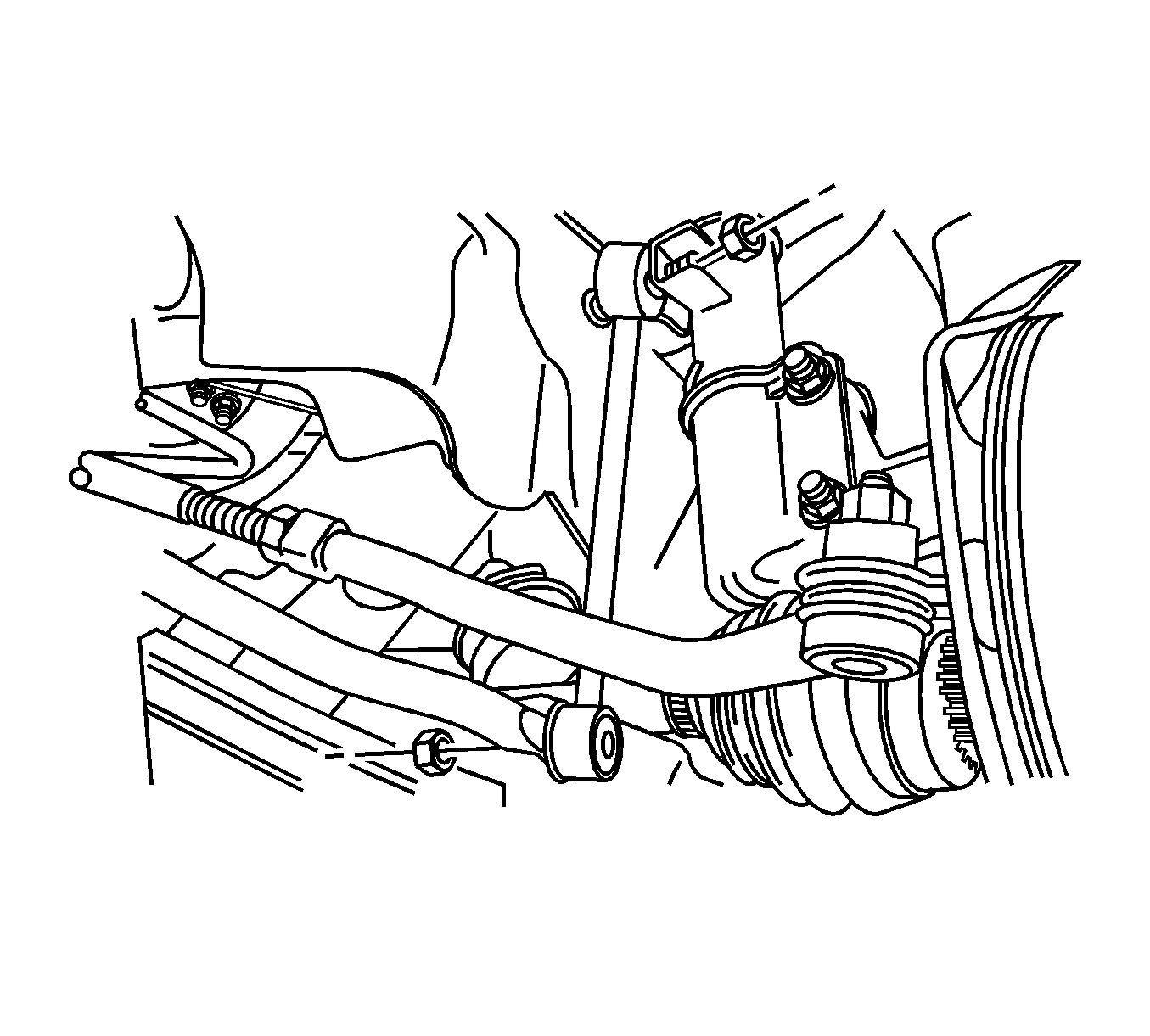

Fig 1: Stabilizer Shaft-To-Knuckle Nut & Shaft-To-Link Nut

Courtesy of GENERAL MOTORS CORP.

Install the stabilizer shaft into the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the stabilizer shaft-to-knuckle nut and the shaft-to-link nut.
Tighten: Tighten the stabilizer shaft link nuts to 50 N.m (37 lb ft).
Install the front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
