Exterior Lights Schematics

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

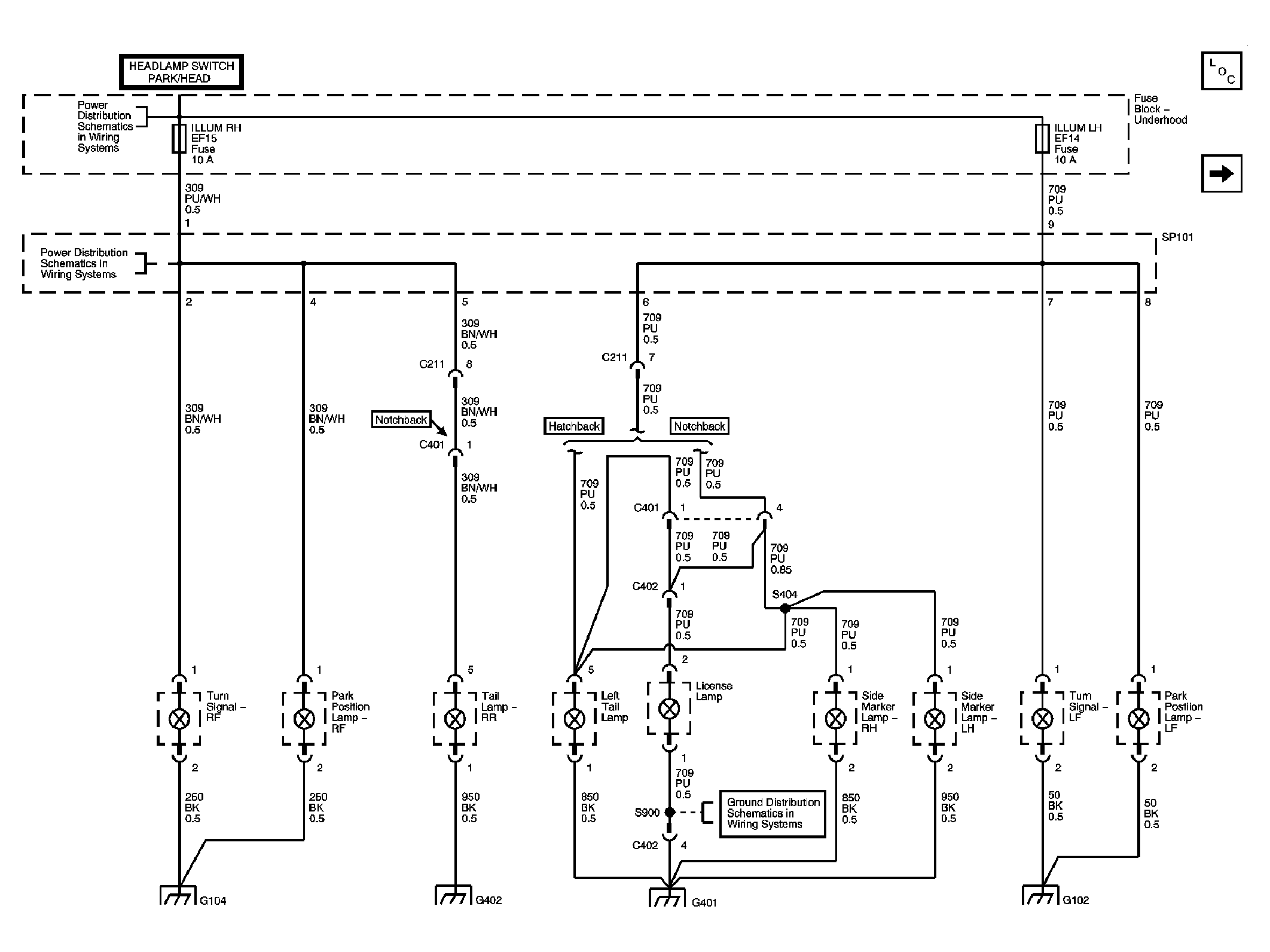

Fig 1: Park Tail Side Marker License Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

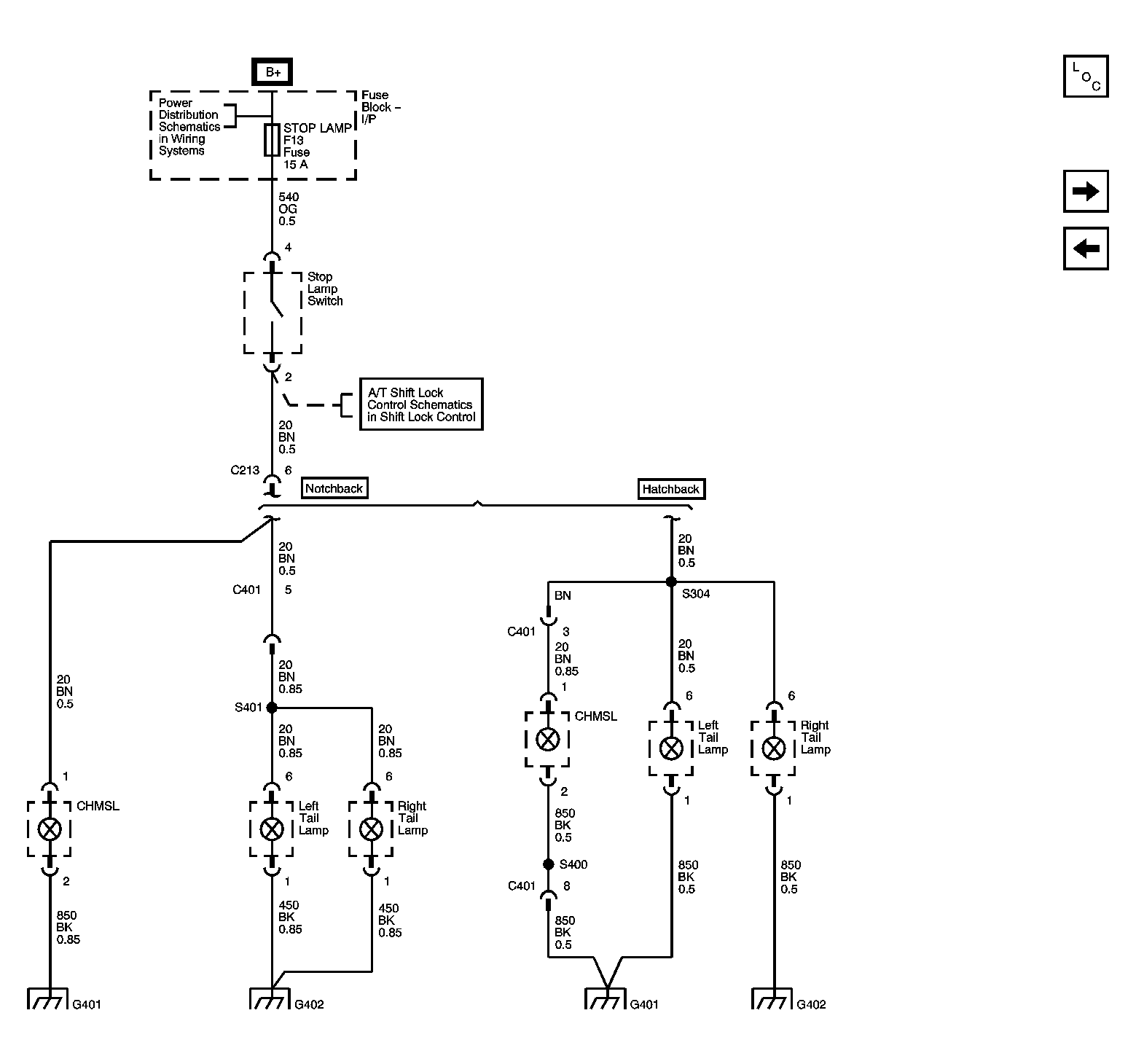

Fig 2: Stop Lamps CHMSL Schematics

Courtesy of GENERAL MOTORS CORP.

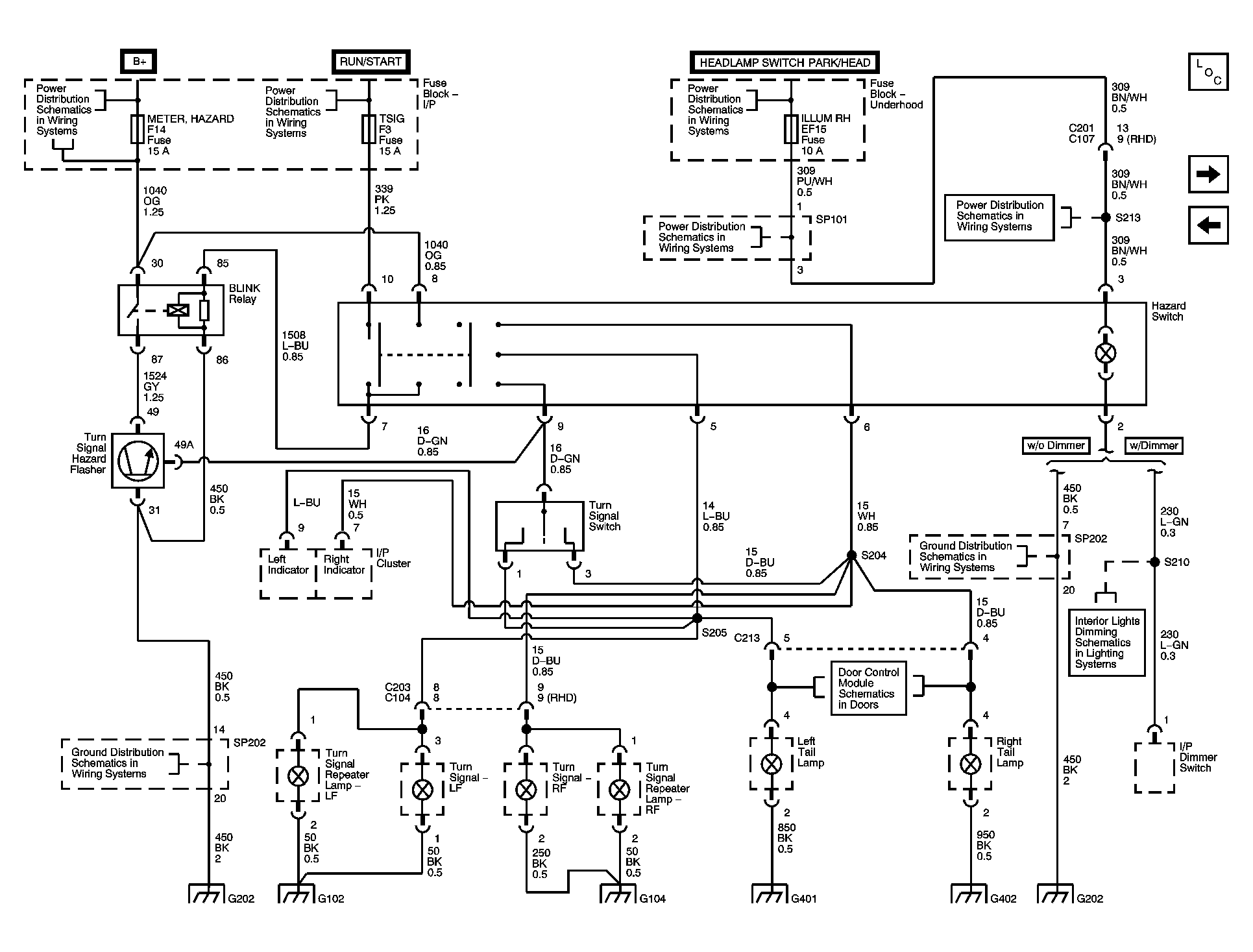

Fig 3: Turn Hazard Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

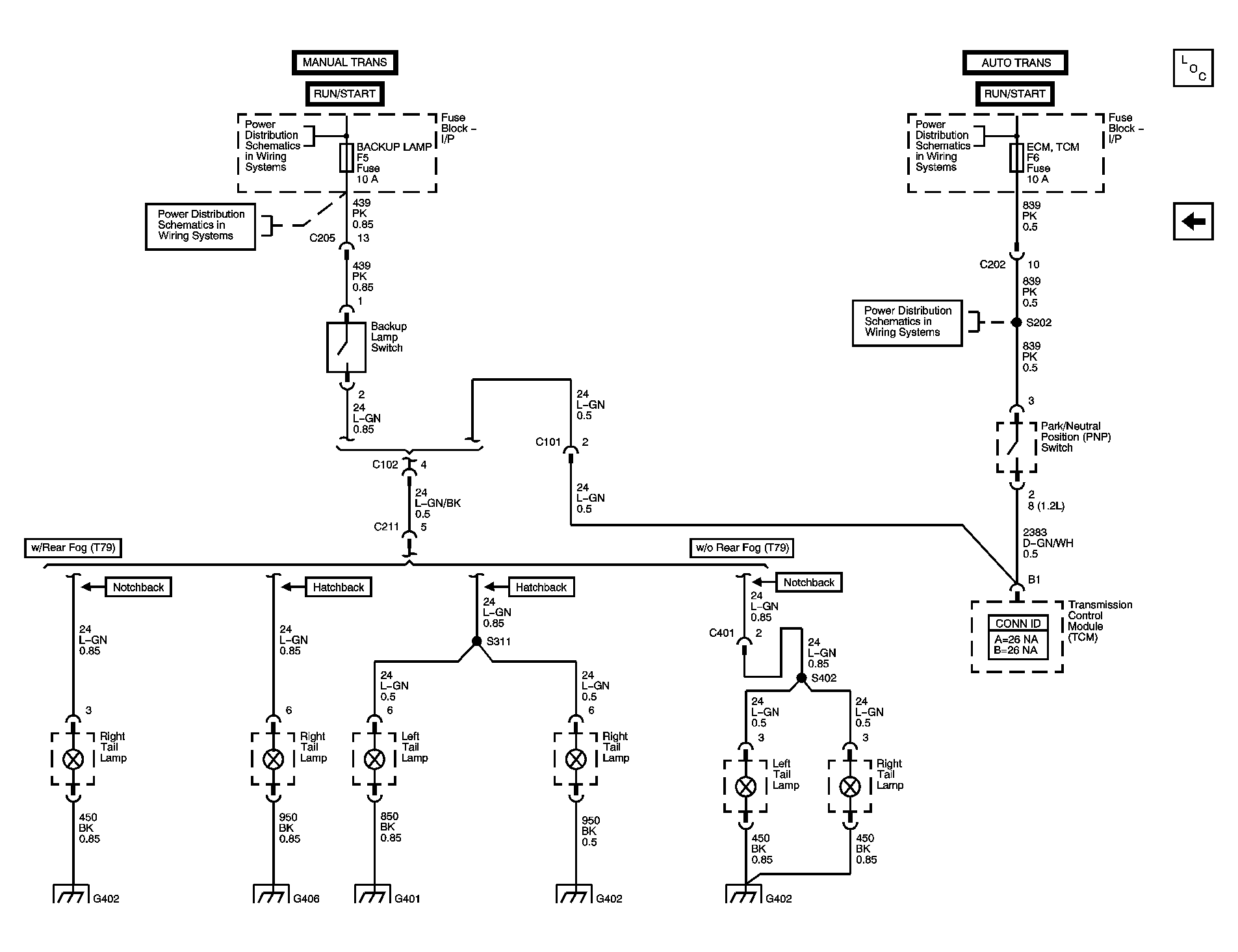

Fig 4: Backup Lamps Schematics

Courtesy of GENERAL MOTORS CORP.
