Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

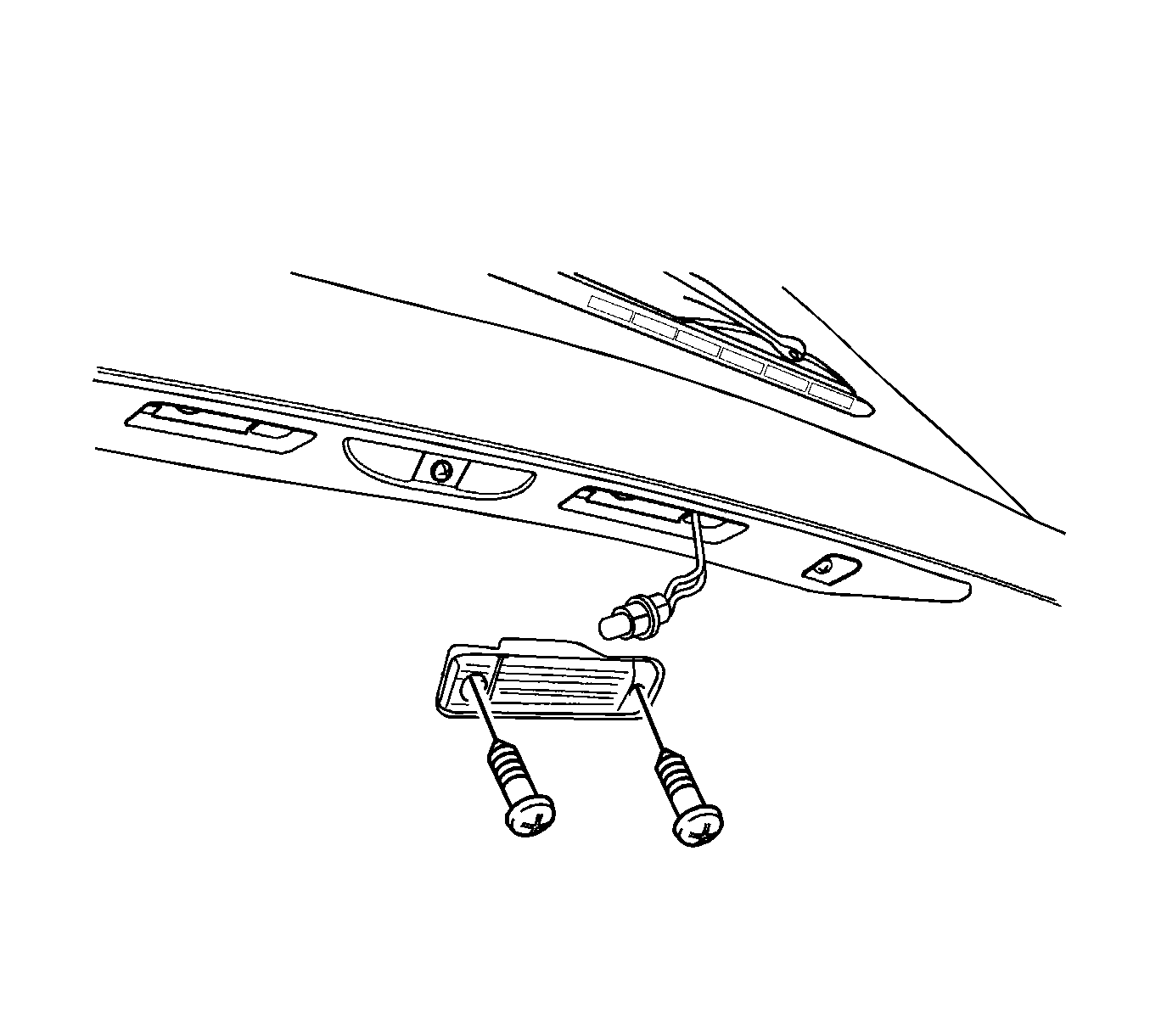

Fig 1: View of License Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

Install a new bulb.
Connect the electrical connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lamp assembly with the screws.
Tighten: Tighten the license plate lamp screws to 1.5 N.m (13 lb in).
