Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

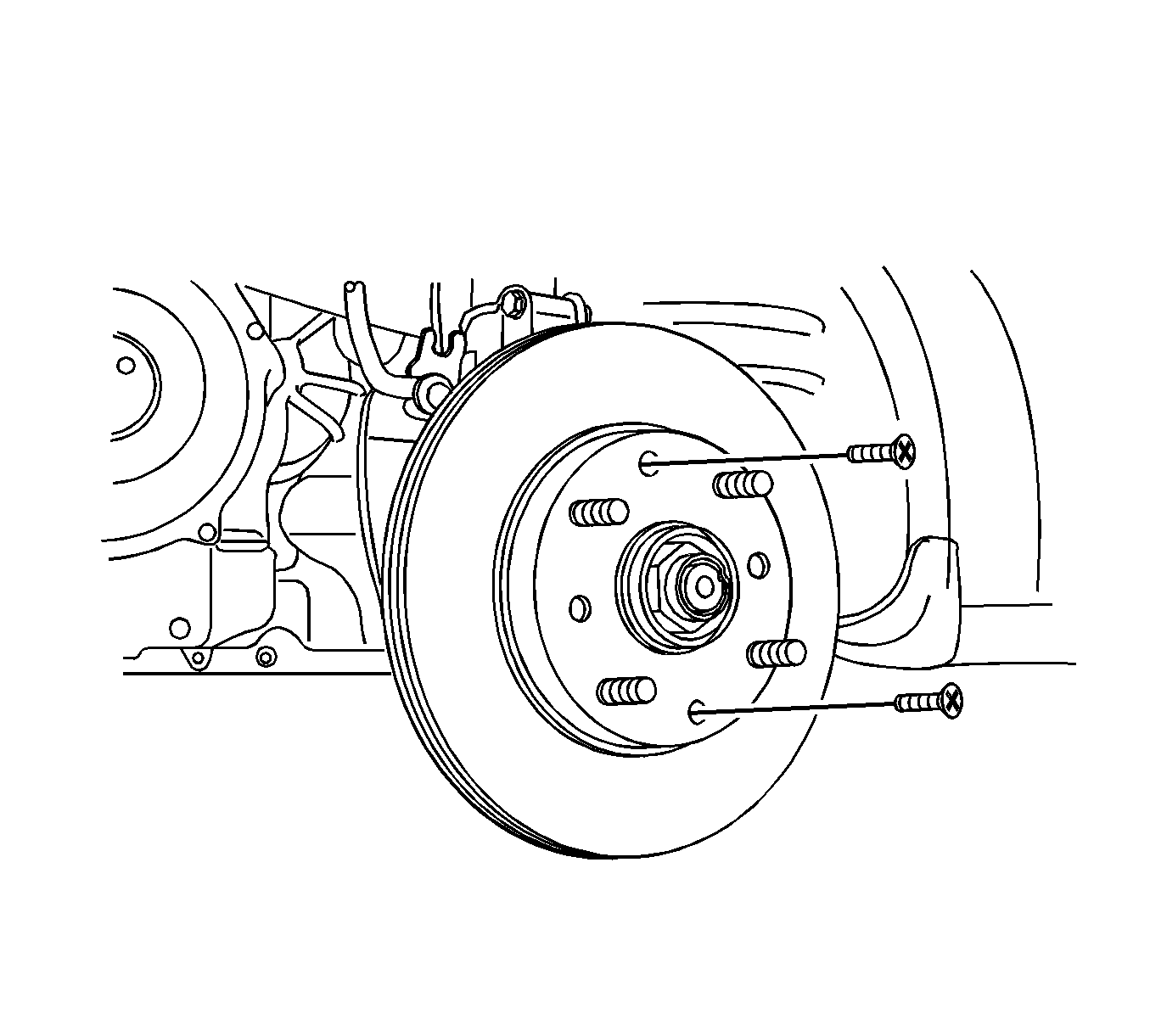

    Fig 1: View Of Rotor-To-Front Wheel Hub Detent Screw
    GM1245700Courtesy of GENERAL MOTORS CORP.
  1. Inspect the rotor. Refer to Brake Rotor Surface and Wear Inspection .
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rotor to the front wheel hub by tightening the detent screw.

    Tighten:  Tighten the rotor-to-front wheel hub detent screw to 4 N.m (35 lb in).

  3. Install the caliper bracket.

    Tighten:  Tighten the caliper bracket mounting bolts to 95 N.m (70 lb ft).

  4. Install the caliper assembly. Refer to Brake Caliper Replacement .
