Vehicle Lifting Points

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Front Lift

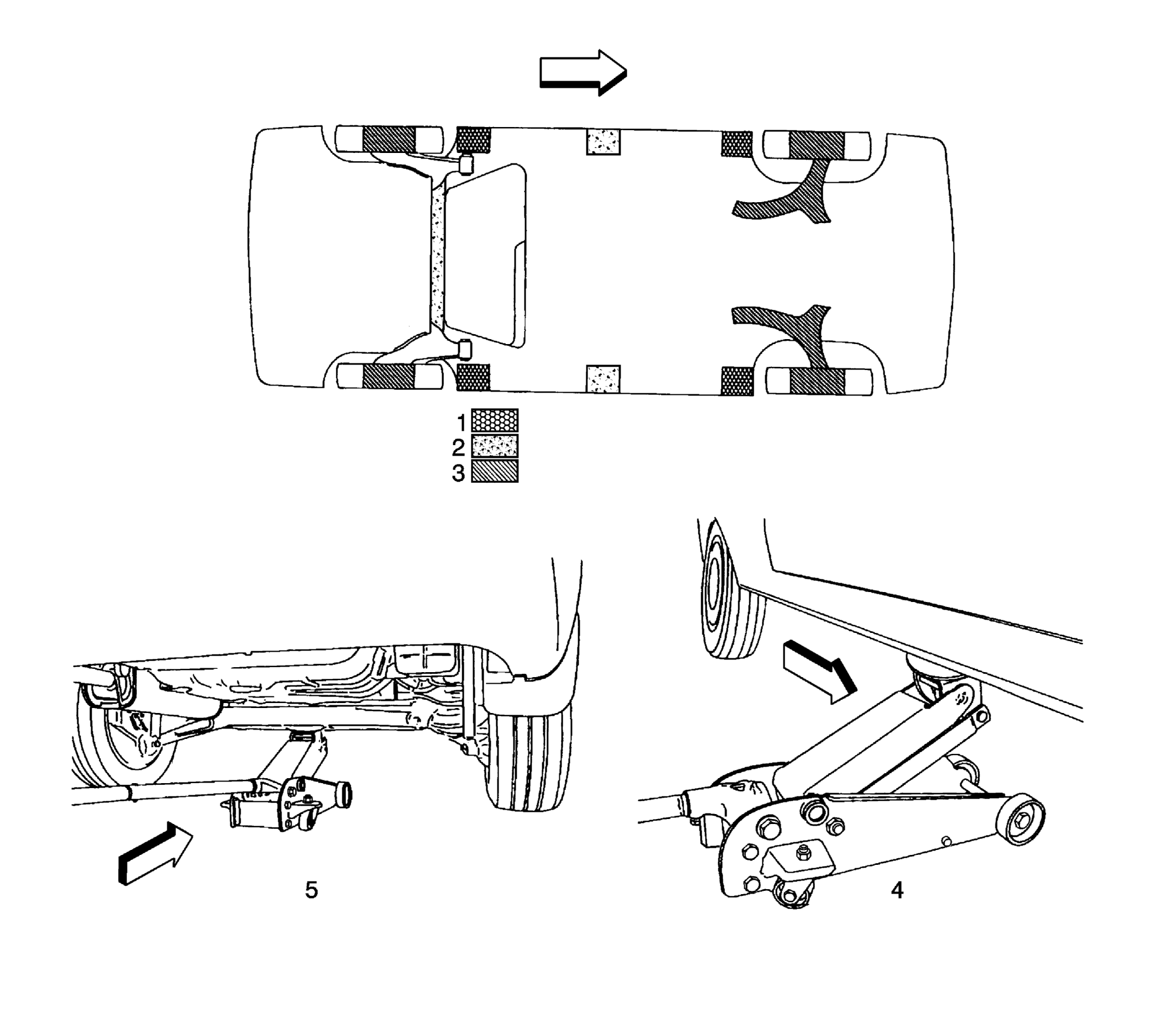

Fig 1: View Of Front Lift Procedure

Courtesy of GENERAL MOTORS CORP.

Front Contact Hoist
Floor Jack
Suspension Contact Hoist
Center Rocker Lift Point-Left Hand and Right Hand
Rear Suspension Axle Lift Point

Rear Lift

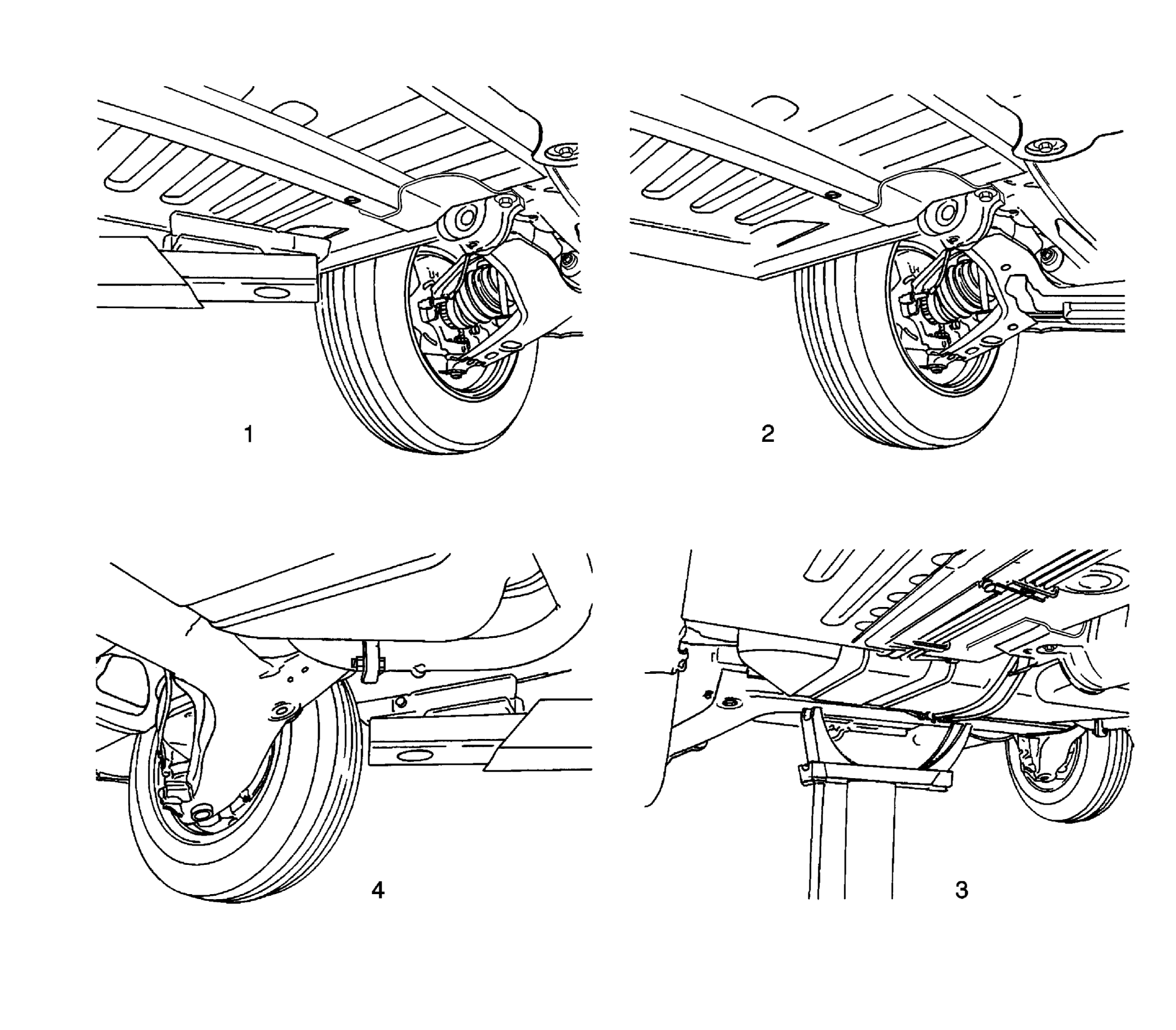

Fig 2: View Of Rear Lift Procedures

Courtesy of GENERAL MOTORS CORP.

Frame Contact Hoist - Rearward of the Front Tire
Suspension Contact Hoist - Under Front Lower Control Arm
Suspension Contact Hoist - Lifting on Rear Axle
Frame Contact Hoist - Forward of Rear Tire
