Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

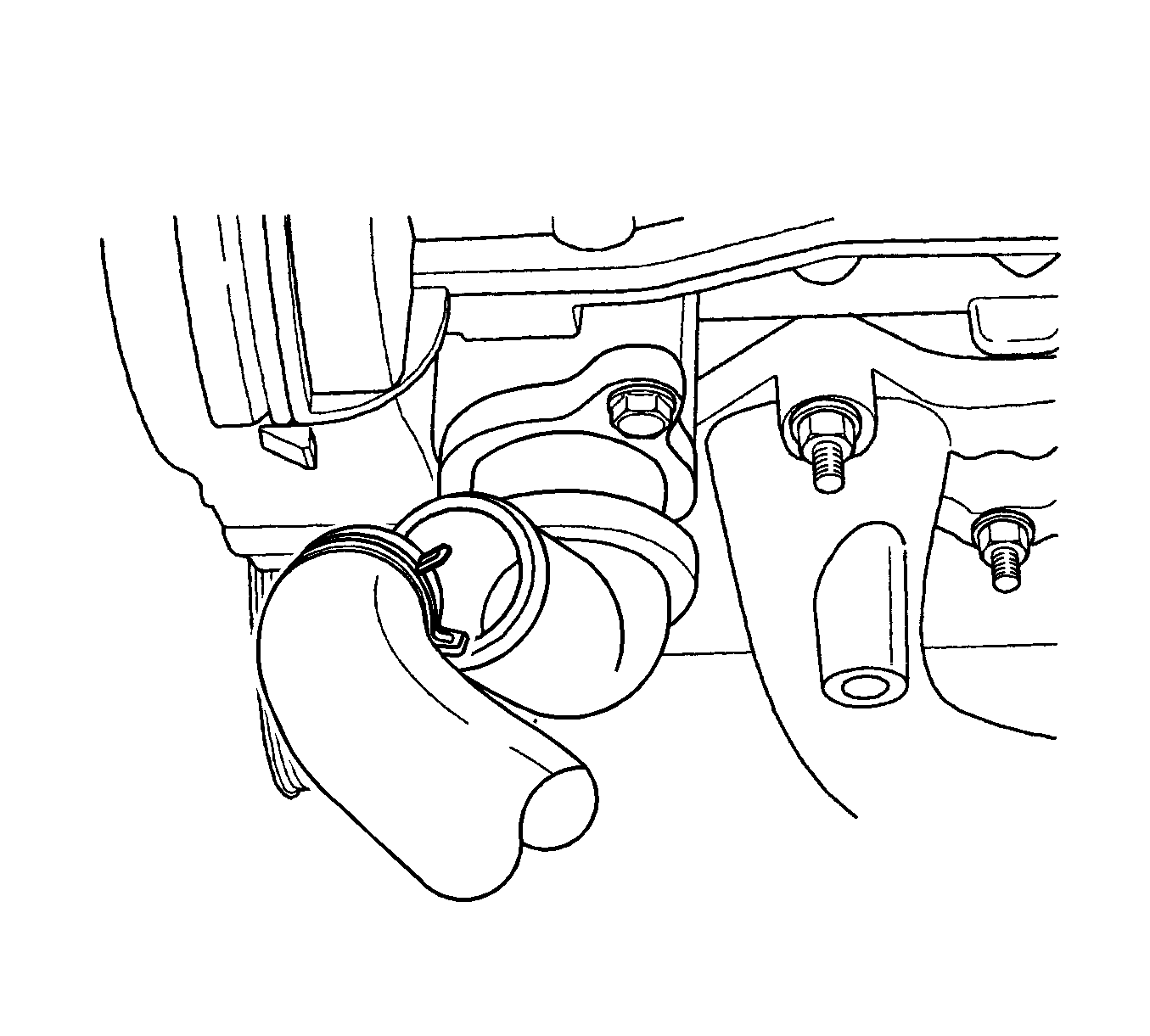

Fig 1: View Of Thermostat

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the thermostat with the bolts and the thermostat housing.
Tighten: Tighten the mounting bolts to 20 N.m (15 lb ft).
Secure the upper radiator hose to the thermostat housing with a hose clamp.
Connect the throttle body coolant inlet hose to the thermostat housing.
Refill the engine cooling system. Refer to Draining and Filling Cooling System .
