Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

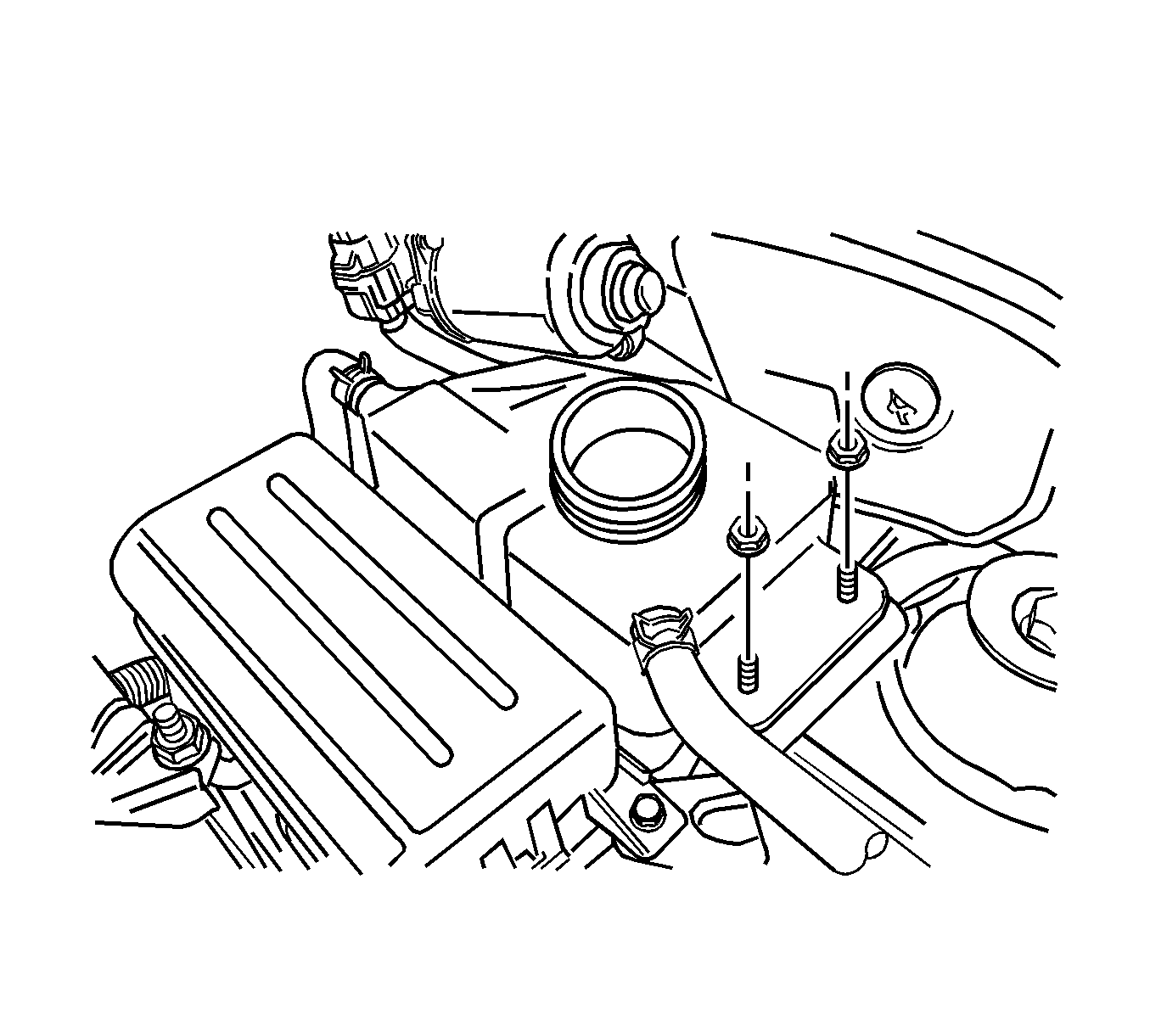

Fig 1: View Of Surge Tank And Nuts

Courtesy of GENERAL MOTORS CORP.

Install the surge tank to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Secure the surge tank with the attaching nuts.
Tighten: Tighten the surge tank attaching nuts to 10 N.m (89 lb in).
Connect the overflow hose to the surge tank.
Secure the overflow hose to the surge tank with the hose clamps.
Fill the surge tank with the coolant to the center ridge, or to the MAX mark.
