Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

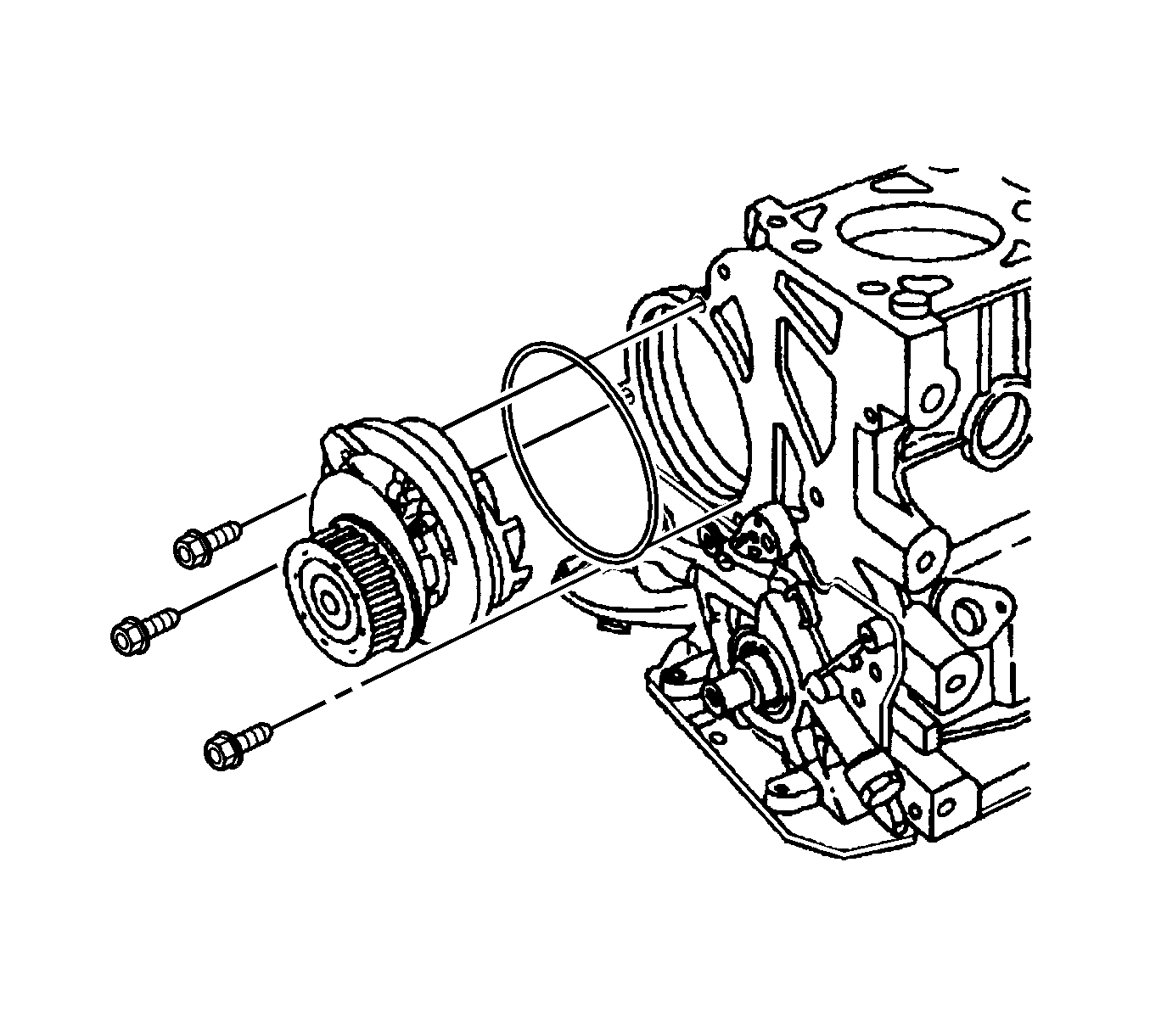

    Fig 1: Installing & Removing Coolant Pump And Seal Ring
    GM1291096Courtesy of GENERAL MOTORS CORP.
  1. Install a new seal ring to the coolant pump.
  2. Coat the sealing surface of the seal ring with Lubriplater®.
  3. Install the coolant pump to the engine block with the flange aligned with the recess of the rear timing belt cover.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the coolant pump mounting bolts.

    Tighten:  Tighten the coolant pump mounting bolts to 10 N.m (89 lb in).

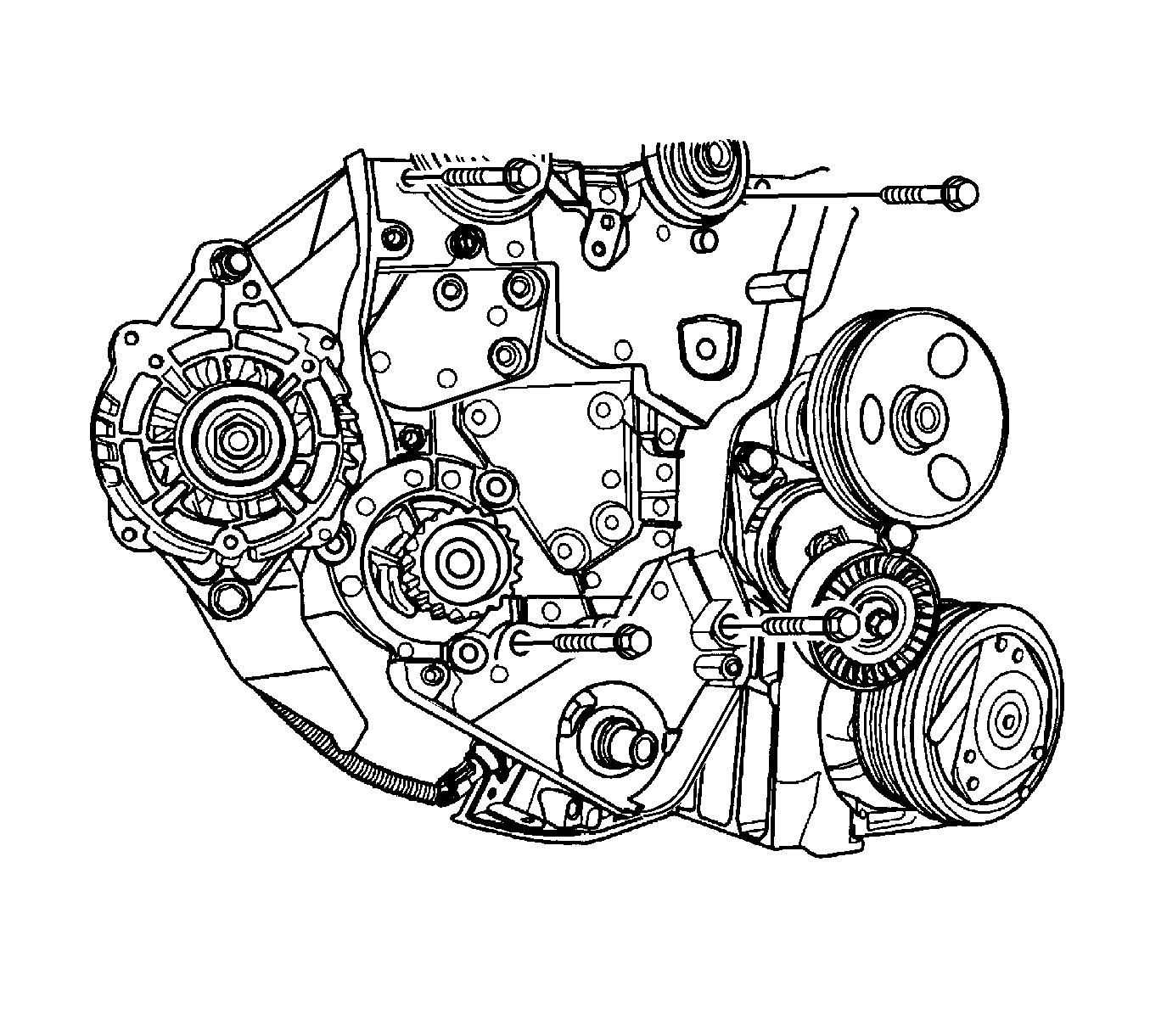

    5. Fig 2: View Of Rear Timing Belt Cover
    GM1291234Courtesy of GENERAL MOTORS CORP.
  5. Install the rear timing belt cover. Refer to Timing Belt Cover Replacement in Engine Mechanical 1.6L.
  6. Fill the engine cooling system. Refer to Draining and Filling Cooling System .
  7. Connect the negative battery cable.
