Coolant Heater Cord Replacement: Notes

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

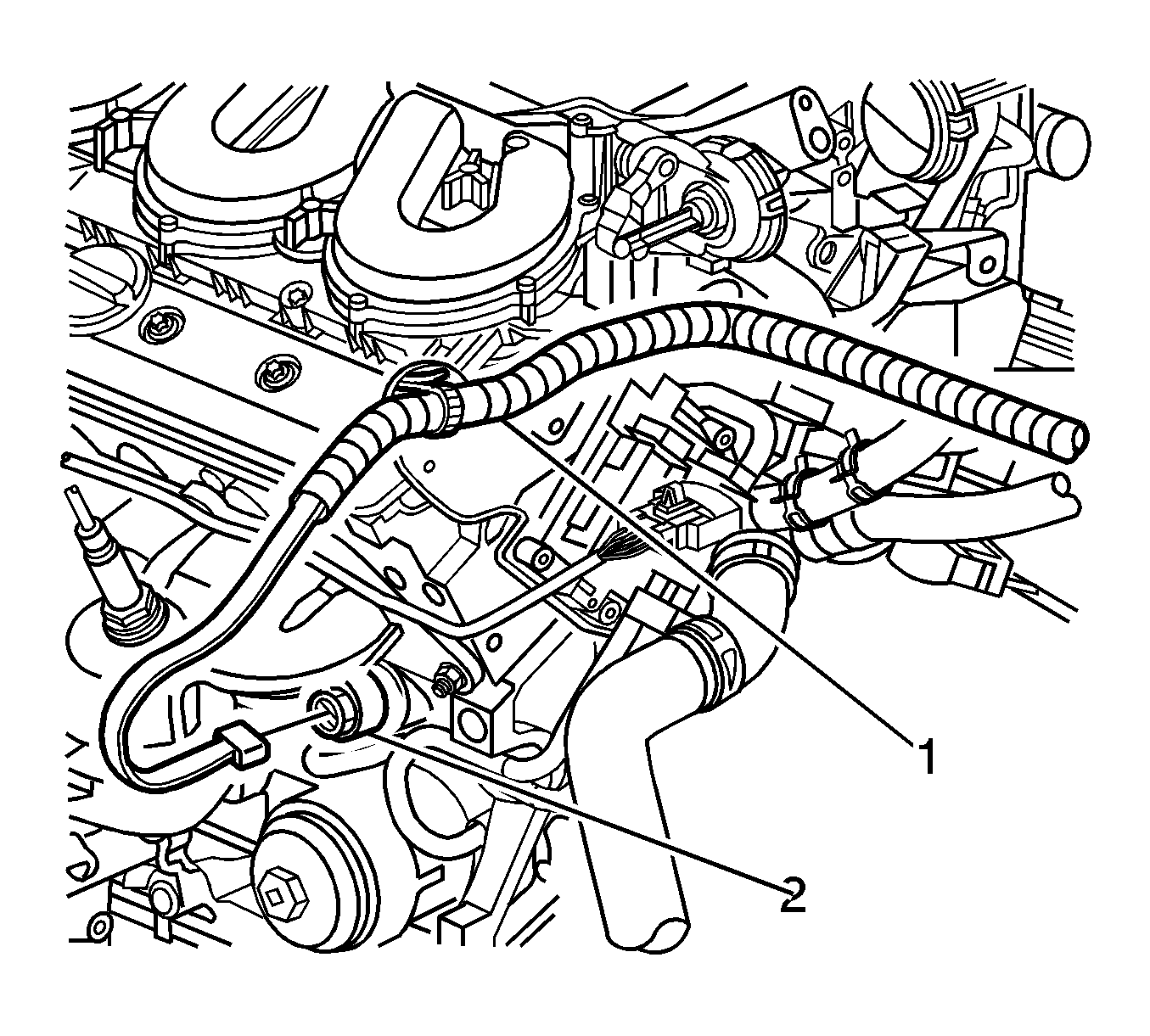

Fig 1: View Of Coolant Heater Cord Clip And Coolant Heater

Courtesy of GENERAL MOTORS CORP.

Disconnect the coolant heater power supply cord from the coolant heater (2).
Disconnect the coolant heater cord clip (1) from the engine lift bracket.

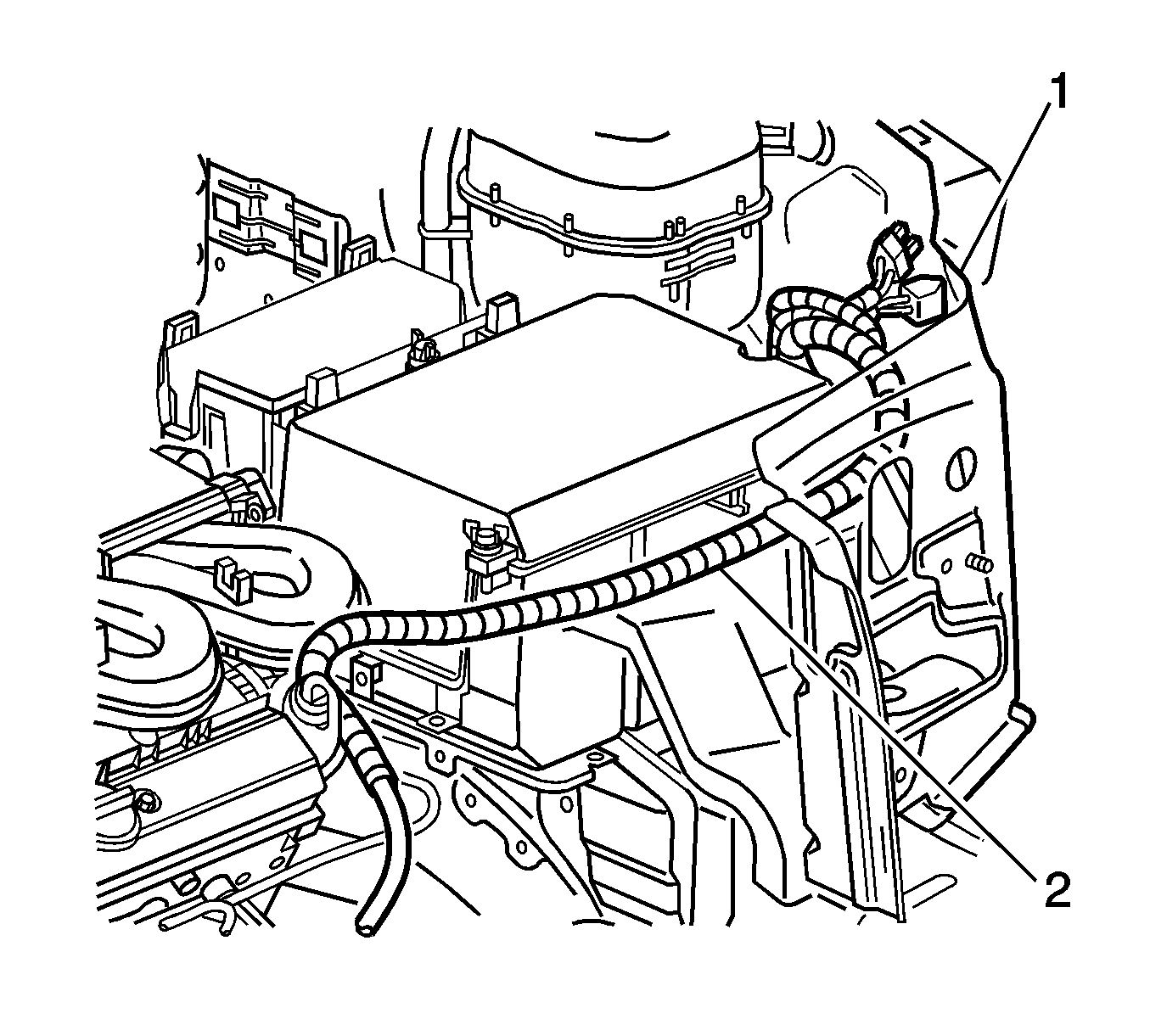

Fig 2: View Of Coolant Reservoir And Battery

Courtesy of GENERAL MOTORS CORP.

Disconnect the coolant heater cord from between the washer bottle and the coolant reservoir (1).
Remove the coolant heater cord from the vehicle.
