Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

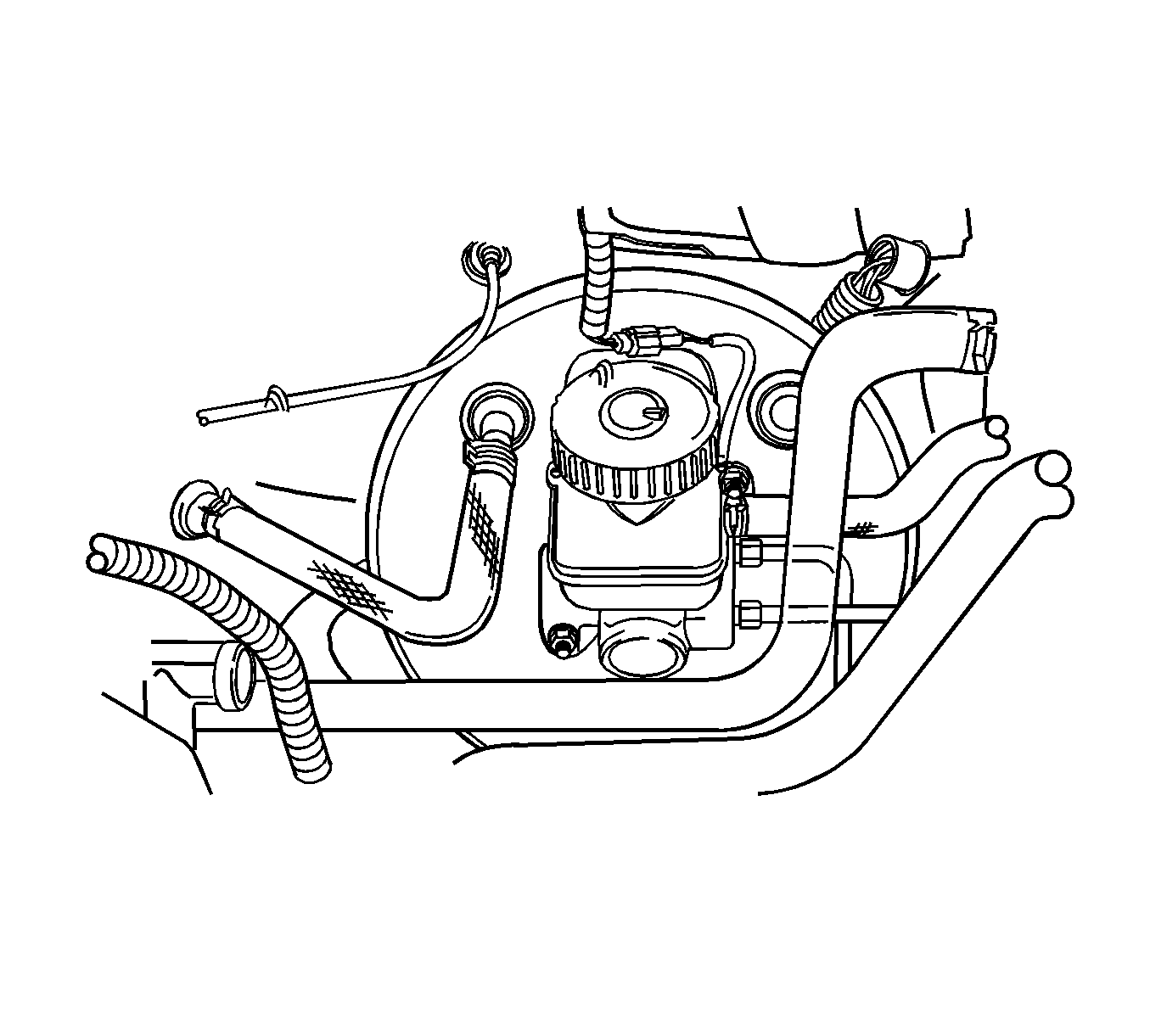

    Fig 1: View of Booster Housing Seal and Master Cylinder
    GM1245651Courtesy of GENERAL MOTORS CORP.
  1. Mount the vacuum hose, DOHC engine connection shown, and make sure the connections are tight on each end.
  2. Install the vacuum hose clips.
  3. Check the function of the booster. Refer to Vacuum Booster Diagnosis .
