Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

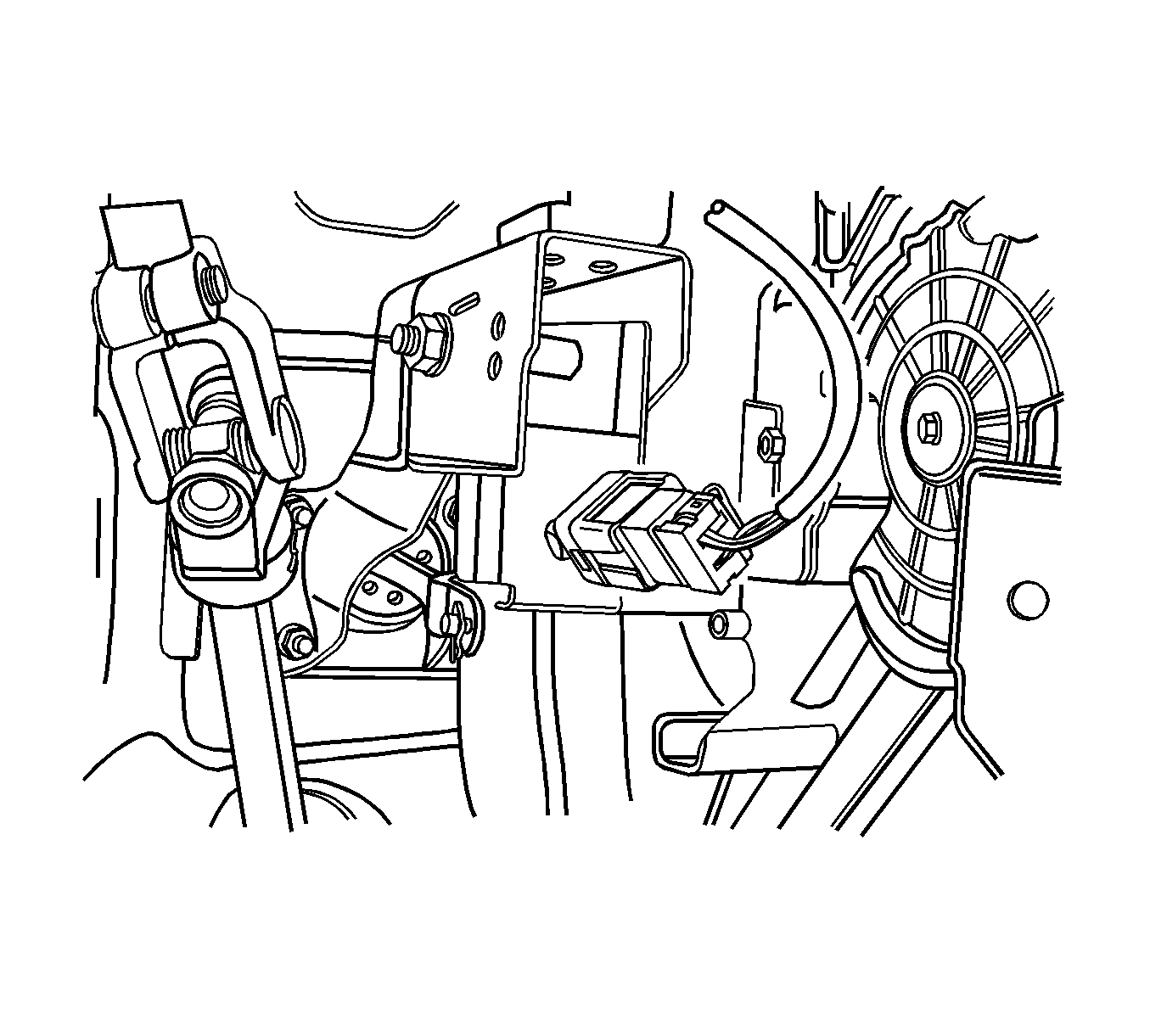

    Fig 1: Stop Lamp Switch And Connector Assembly
    GM1242051Courtesy of GENERAL MOTORS CORP.
  1. Install the connector to the stop lamp switch.
  2. Turn the stop lamp switch and the connector assembly, and twist it into the brake pedal bracket.

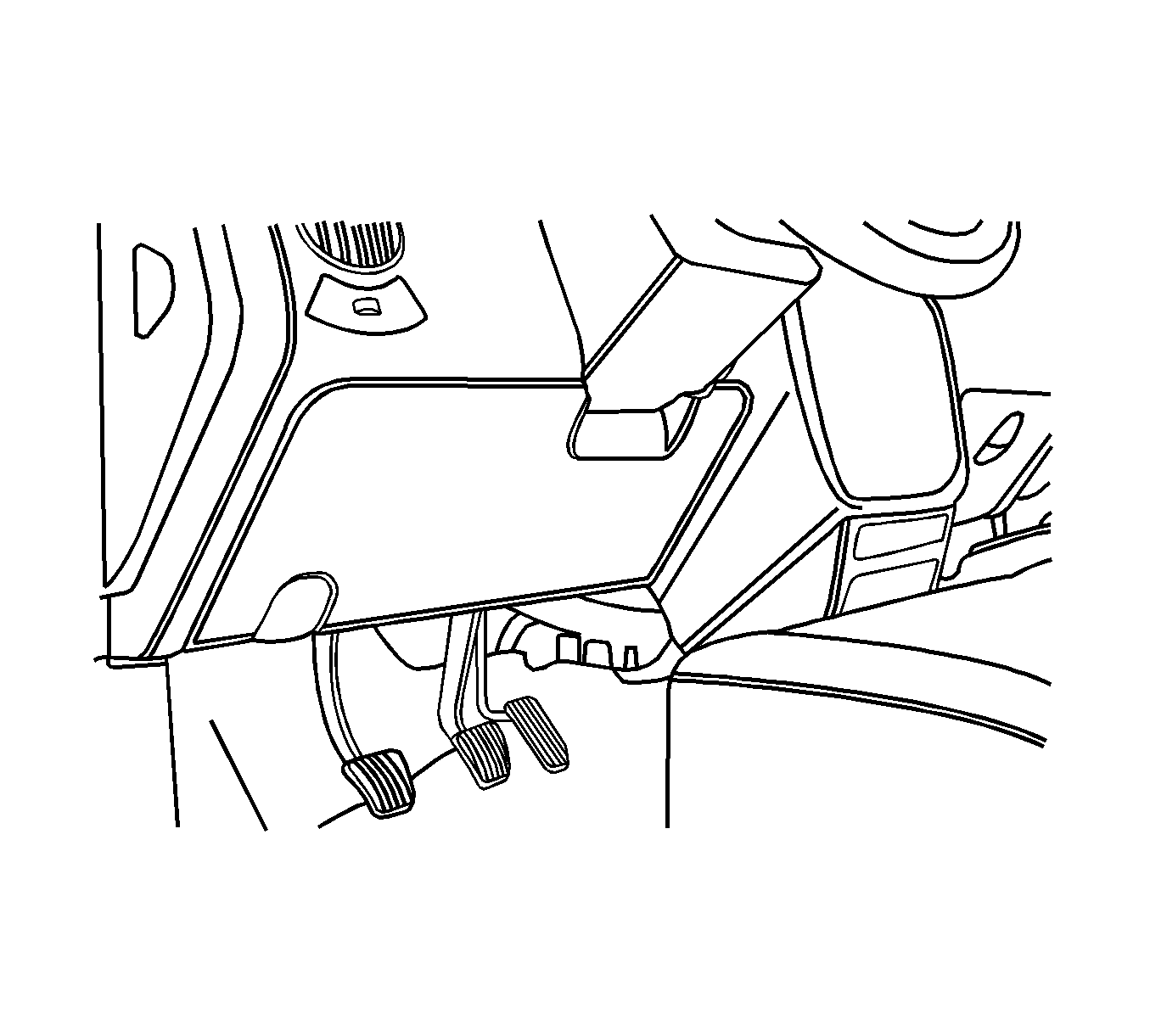

    3. Fig 2: View of Trim Panel With Screws
    GM1242050Courtesy of GENERAL MOTORS CORP.
  3. Press the brake pedal and pull the switch plunger to its maximum setting to adjust the switch.
  4. Release the plunger and pull up on the pedal.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the trim panel screws.

    Tighten:  Tighten the trim panel screws to 7 N.m (62 lb in).

  6. Press the brake pedal and pull the switch plunger to its maximum setting to adjust the switch.
