Removal Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View of Stop Lamp Switch, Retaining Ring, Pin, And Pushrod/Brake Pedal Connection Spring

Courtesy of GENERAL MOTORS CORP.

Remove the screws that hold the trim panel to the instrument panel.
Remove the trim panel.
Remove the stop lamp switch. Refer to Stop Lamp Switch Replacement .
Disconnect the retaining ring, the pin, and the spring from the pushrod/brake pedal connection.

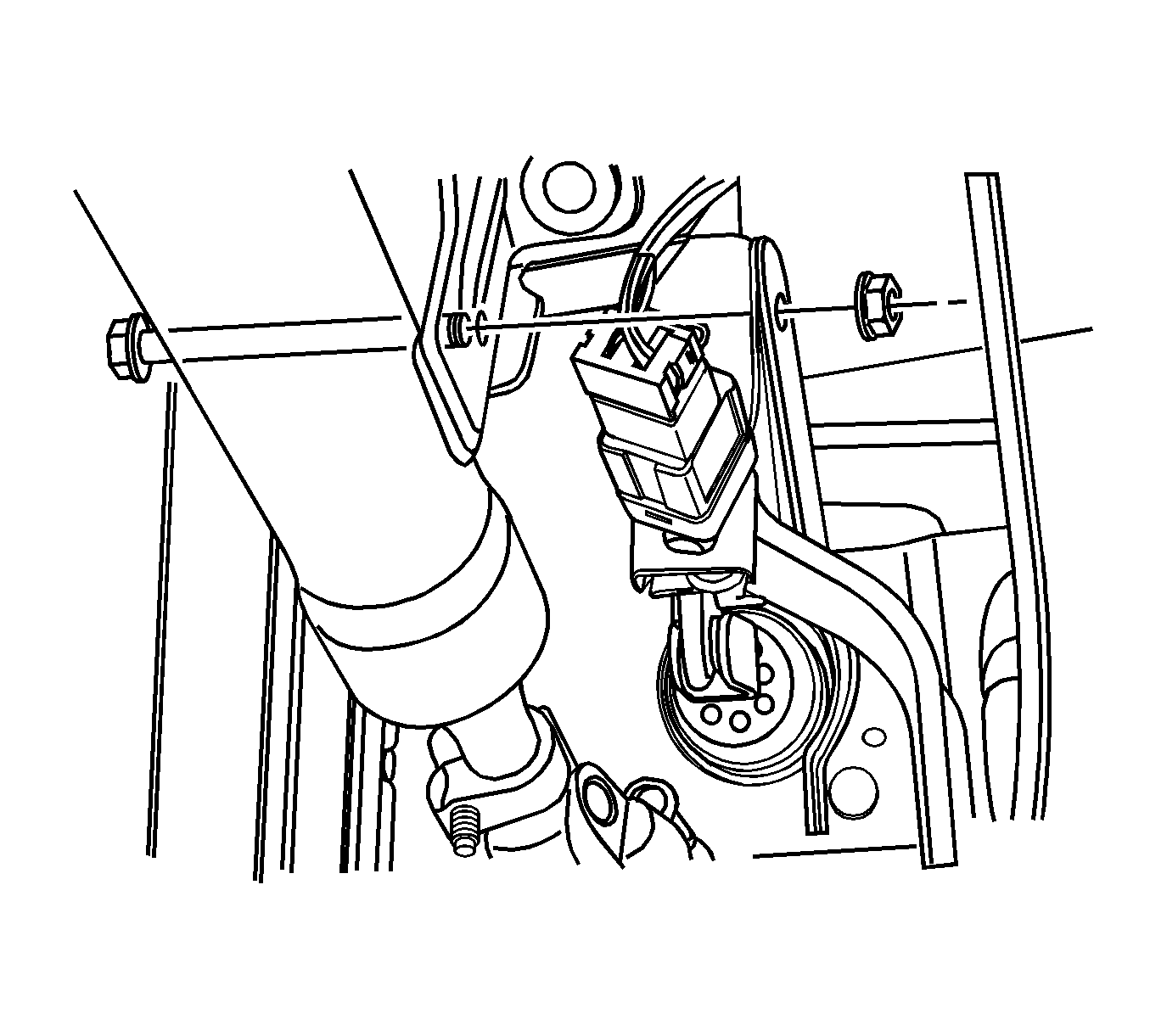

Fig 2: Removal Of Brake Pedal

Courtesy of GENERAL MOTORS CORP.

Remove the pedal mounting shaft and nut.
Remove the brake pedal, exposing the brake booster pushrod and the pedal-to-dash panel bracket.

Fig 3: Removal of Brake Pedal Cover

Courtesy of GENERAL MOTORS CORP.

Remove the brake pedal cover.
