Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

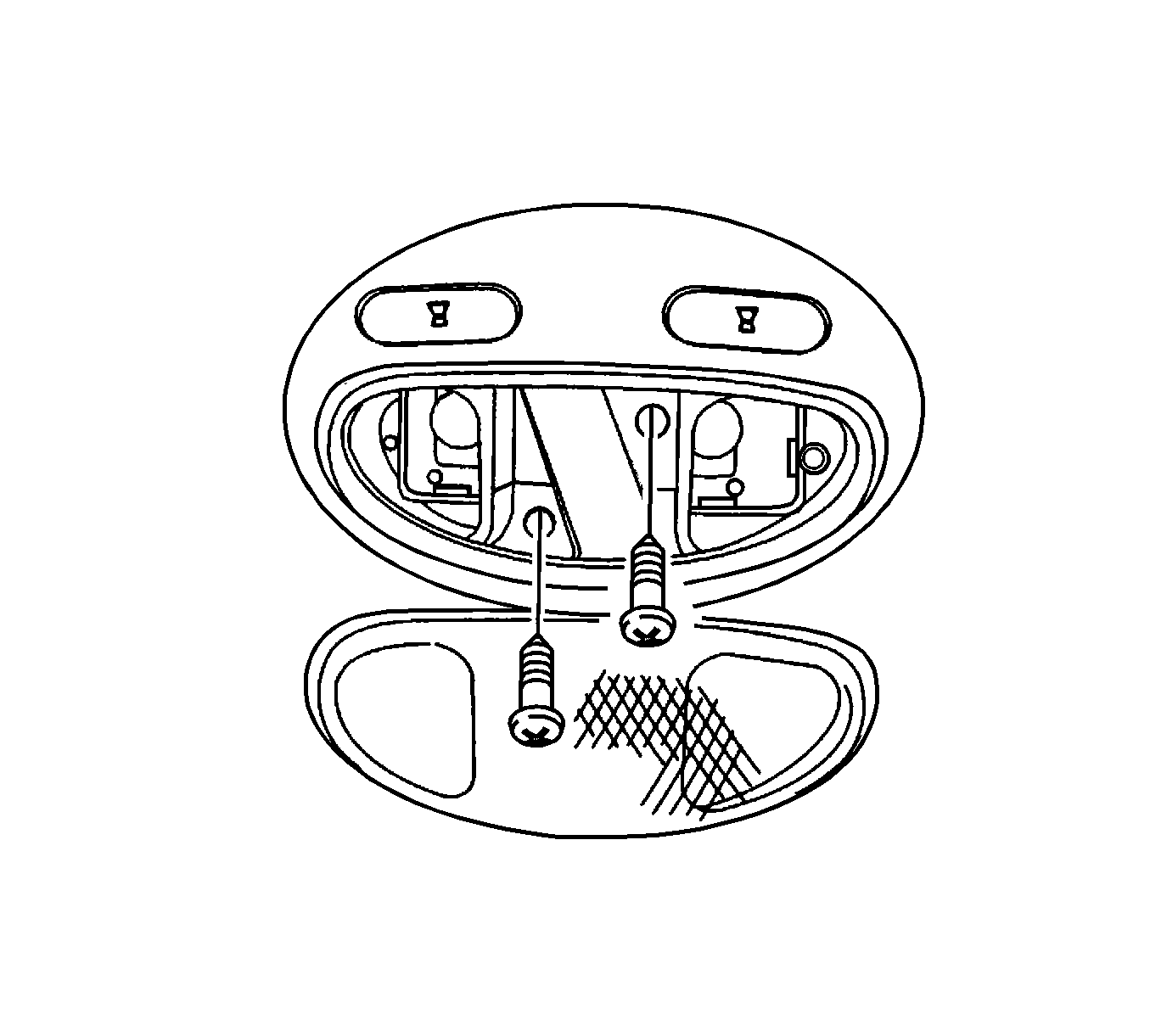

    Fig 1: View of Courtesy Lamp and Screws
    GM1248428Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lamp/power sunroof control switch with the screws.

    Tighten:  Tighten the interior courtesy lamp/power sunroof control switch screws to 4 N.m (35 lb in).

  3. Install the interior courtesy lamp lens.
  4. Connect the negative battery cable.
