HVAC Schematics

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

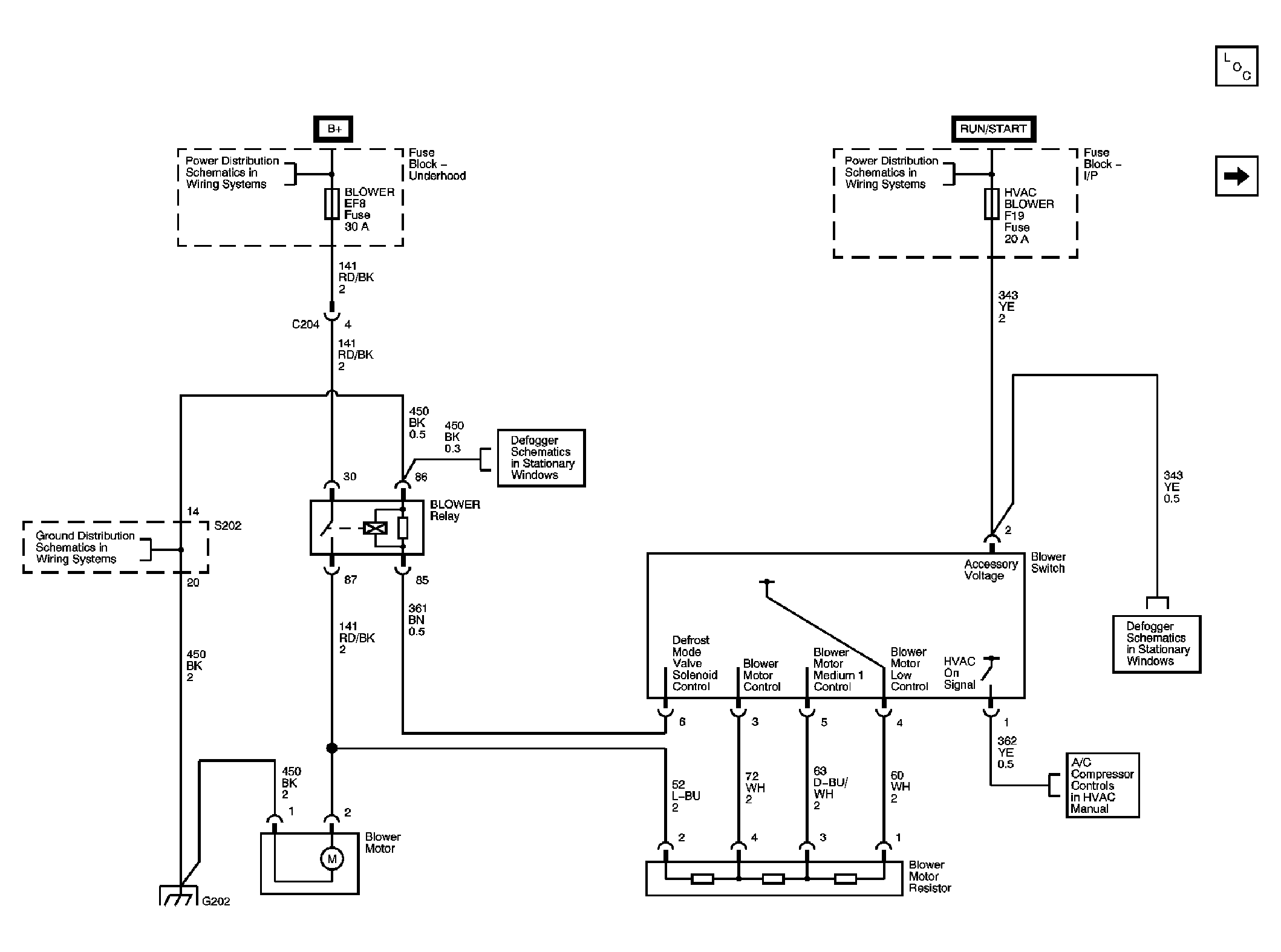

Fig 1: HVAC Manual - Blower Controls Schematic

Courtesy of GENERAL MOTORS CORP.

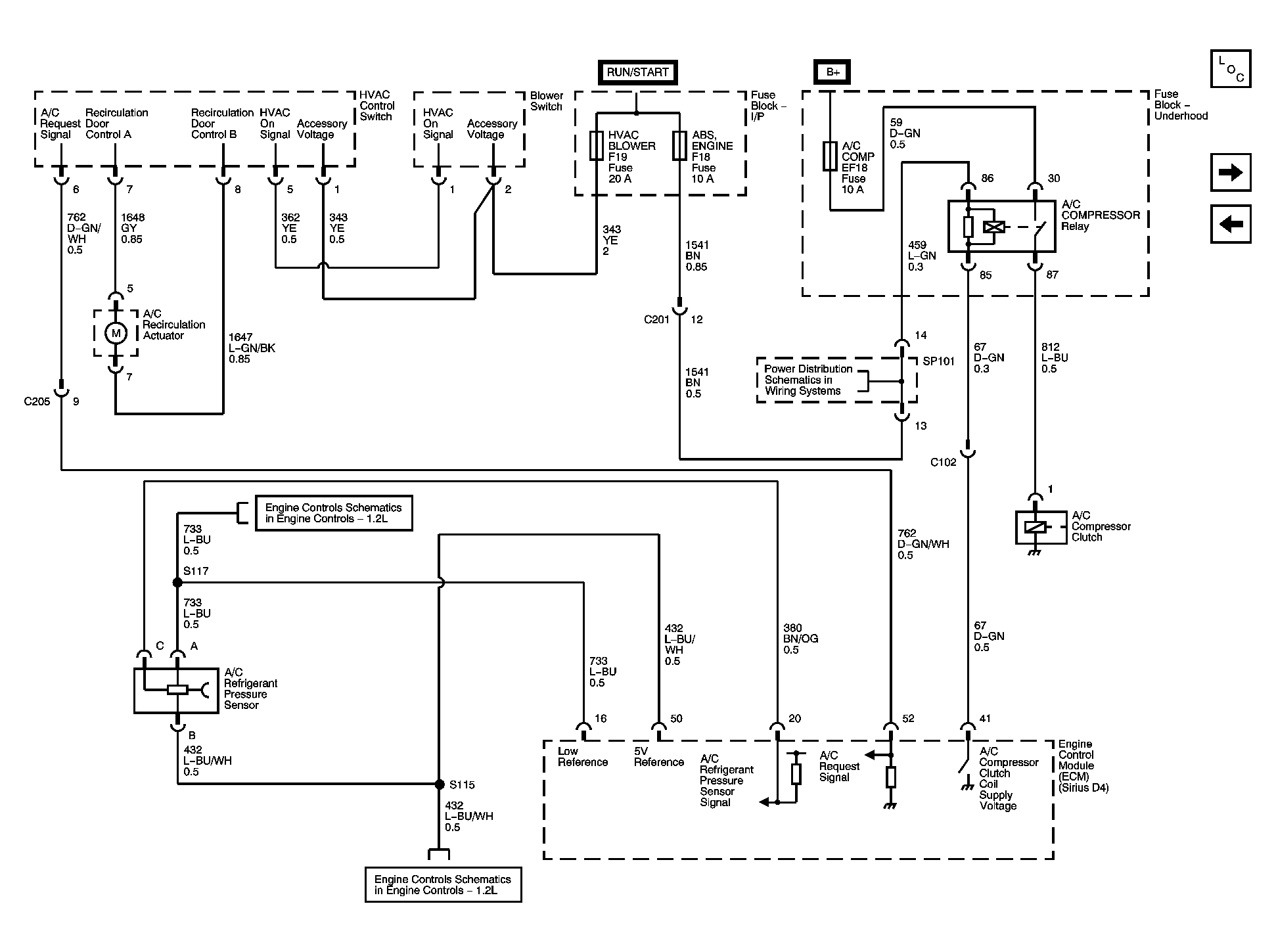

Fig 2: HVAC Manual - Compressor Controls (Sirius D4) Schematic

Courtesy of GENERAL MOTORS CORP.

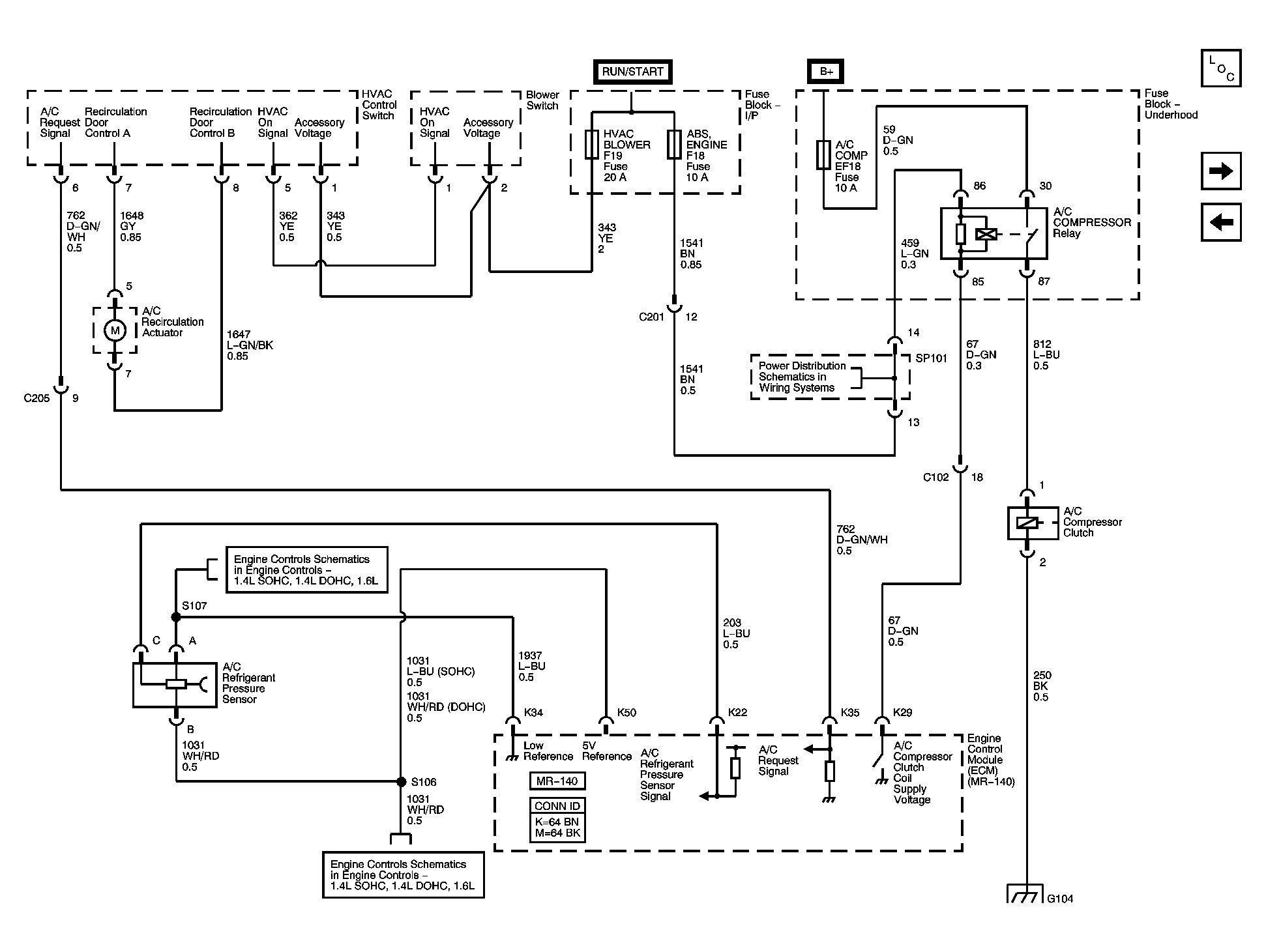

Fig 3: HVAC Manual - Compressor Controls (MR-140) Schematic

Courtesy of GENERAL MOTORS CORP.

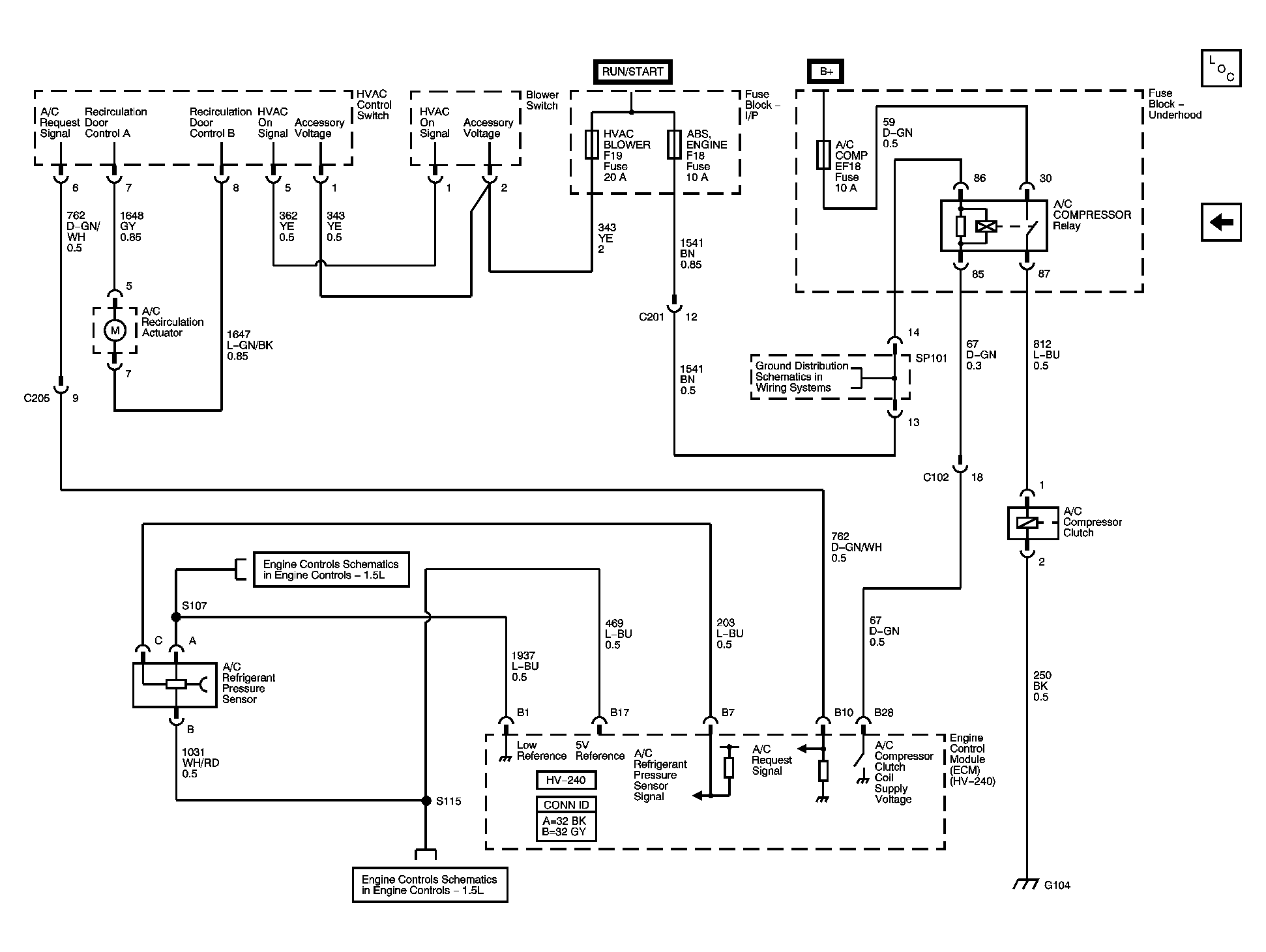

Fig 4: HVAC Manual - Compressor Controls (HV-240) Schematic

Courtesy of GENERAL MOTORS CORP.
