Wiper/Washer System Schematics
WARNING:
This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

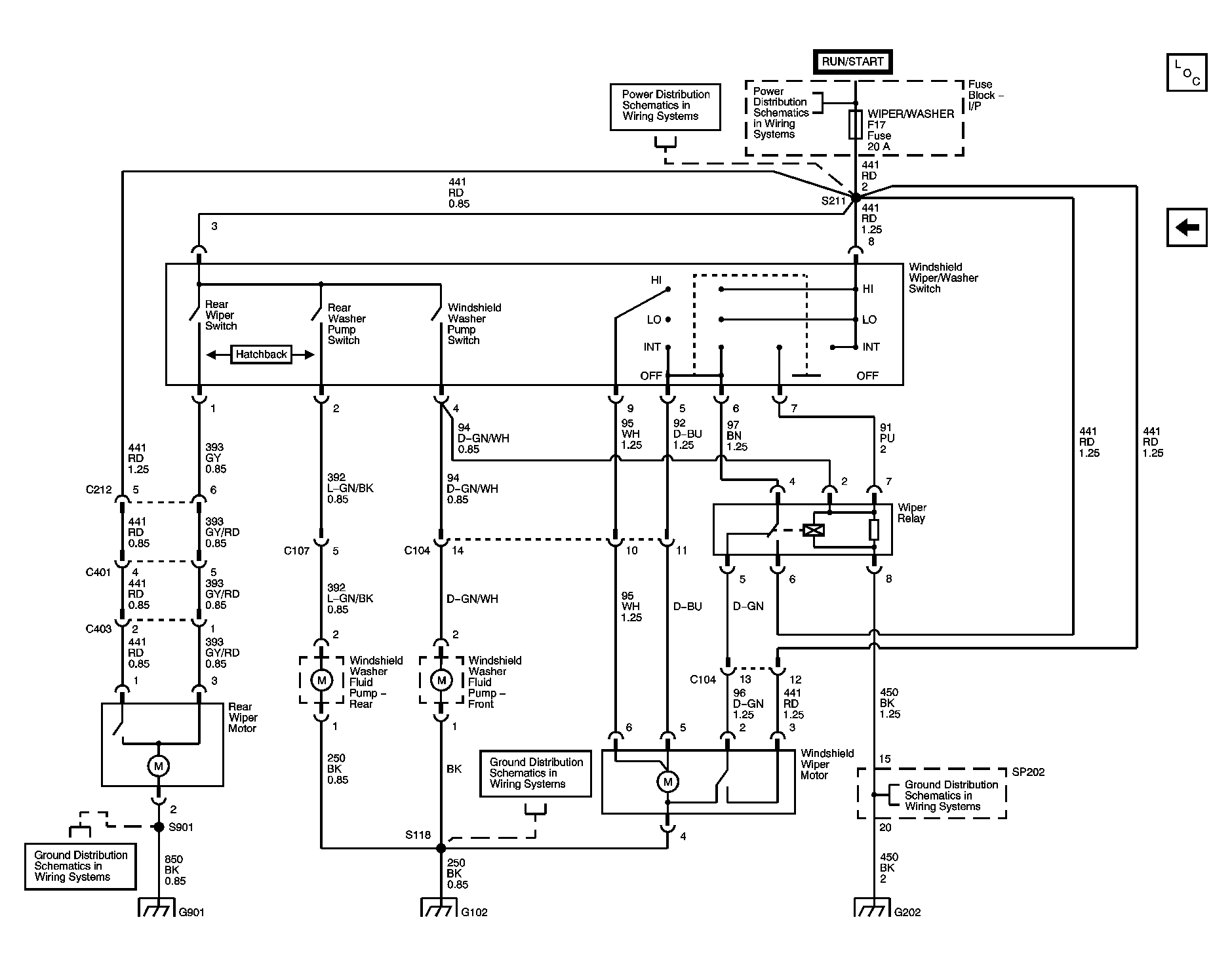

Fig 1: LHD Schematics
Courtesy of GENERAL MOTORS CORP.

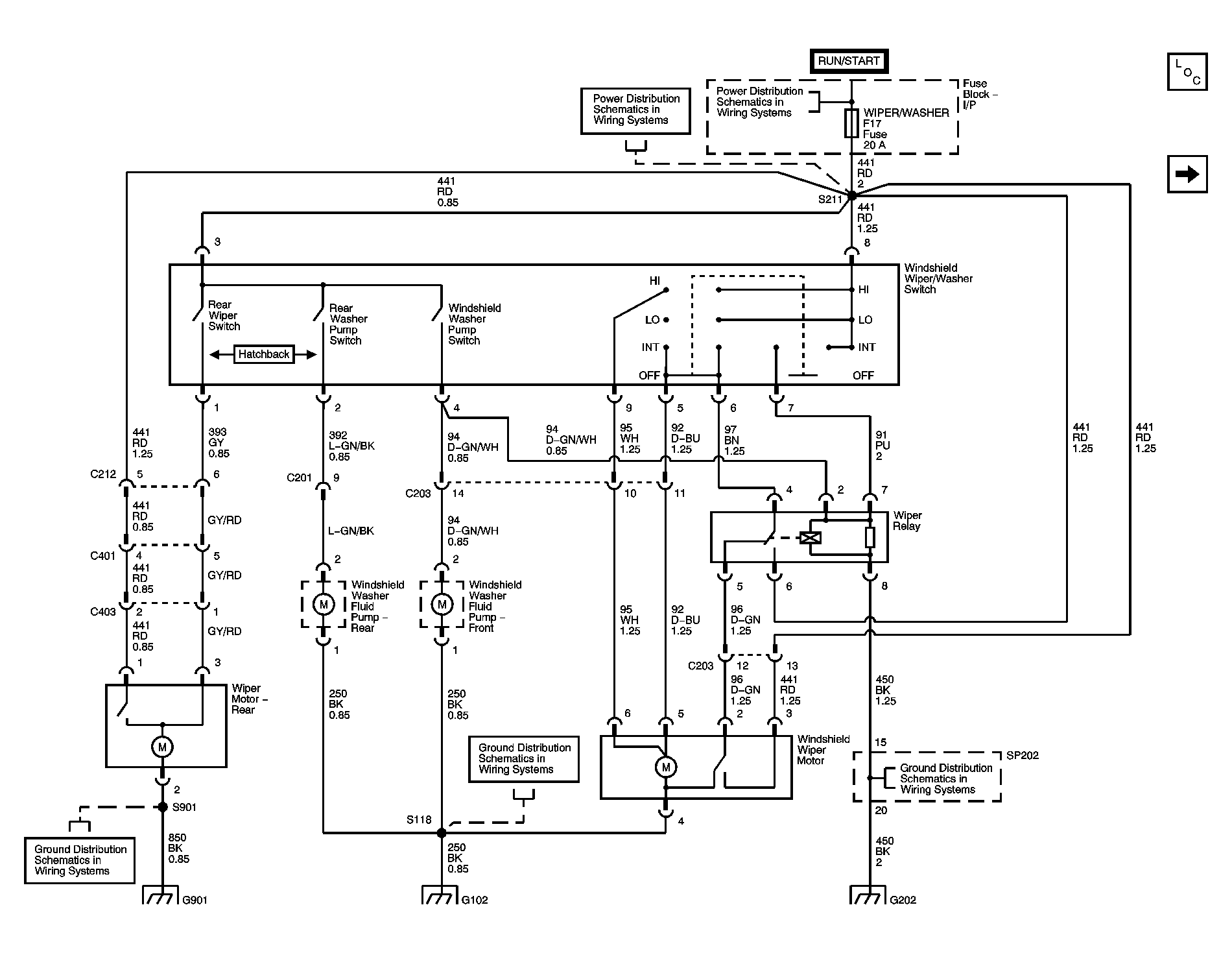

Fig 2: RHD Schematics
Courtesy of GENERAL MOTORS CORP.
