Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

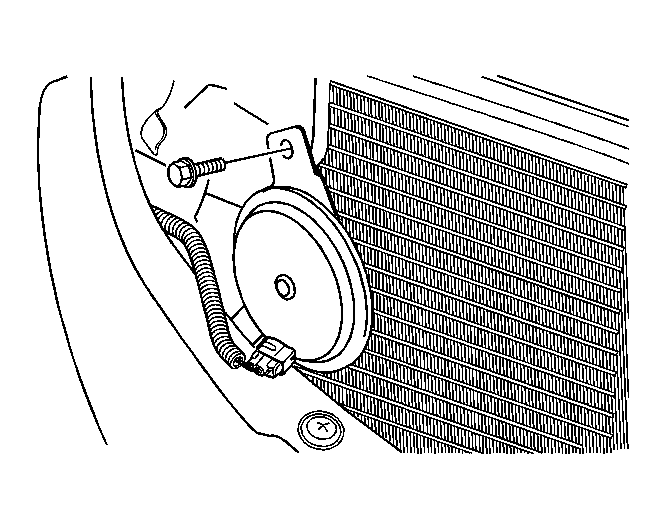

    Fig 1: View of Horn and Electrical Connector
    GM1248413Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the horn with the bolt.

    Tighten:  Tighten the horn bolt to 21 N.m (16 lb ft).

  3. Connect the negative battery cable.
