Removal Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

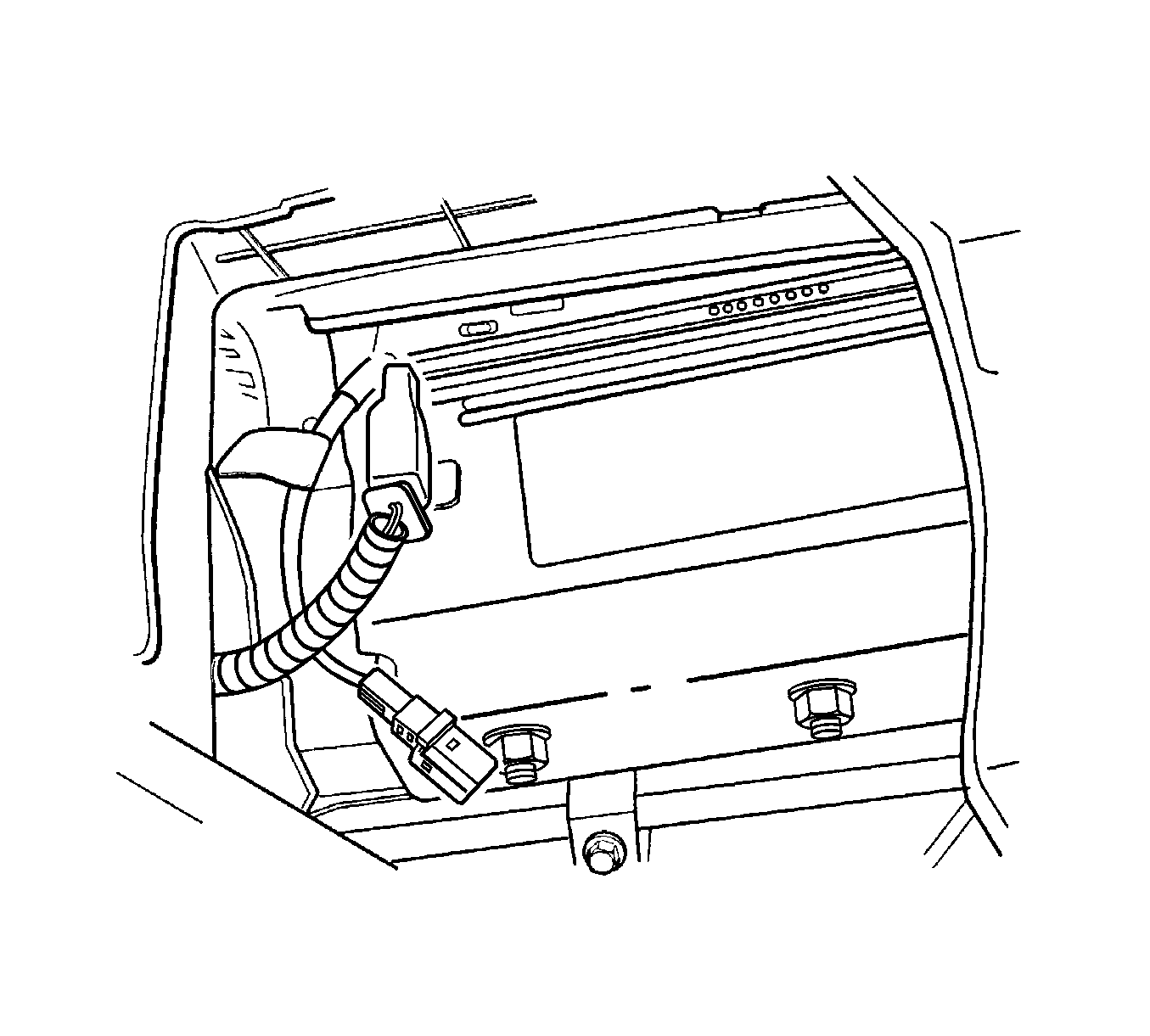

Fig 1: Passenger Air Bag Yellow & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

CAUTION: The sensing and the diagnosis module (SDM) can maintain sufficient voltage to deploy the airbags and pretensioners for up to 1 minute after the ignition has been turned OFF and the fuse has been removed. If the airbags and pretensioners are not disconnected, do not begin service until one minute has been passed after disconnecting power to the SDM. Failure to do so may cause personal injury.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
Disconnect the passenger air bag yellow electrical connector.
Remove the passenger air bag module by removing the mounting bolts from the air bag bracket.
