SIR Component Views

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

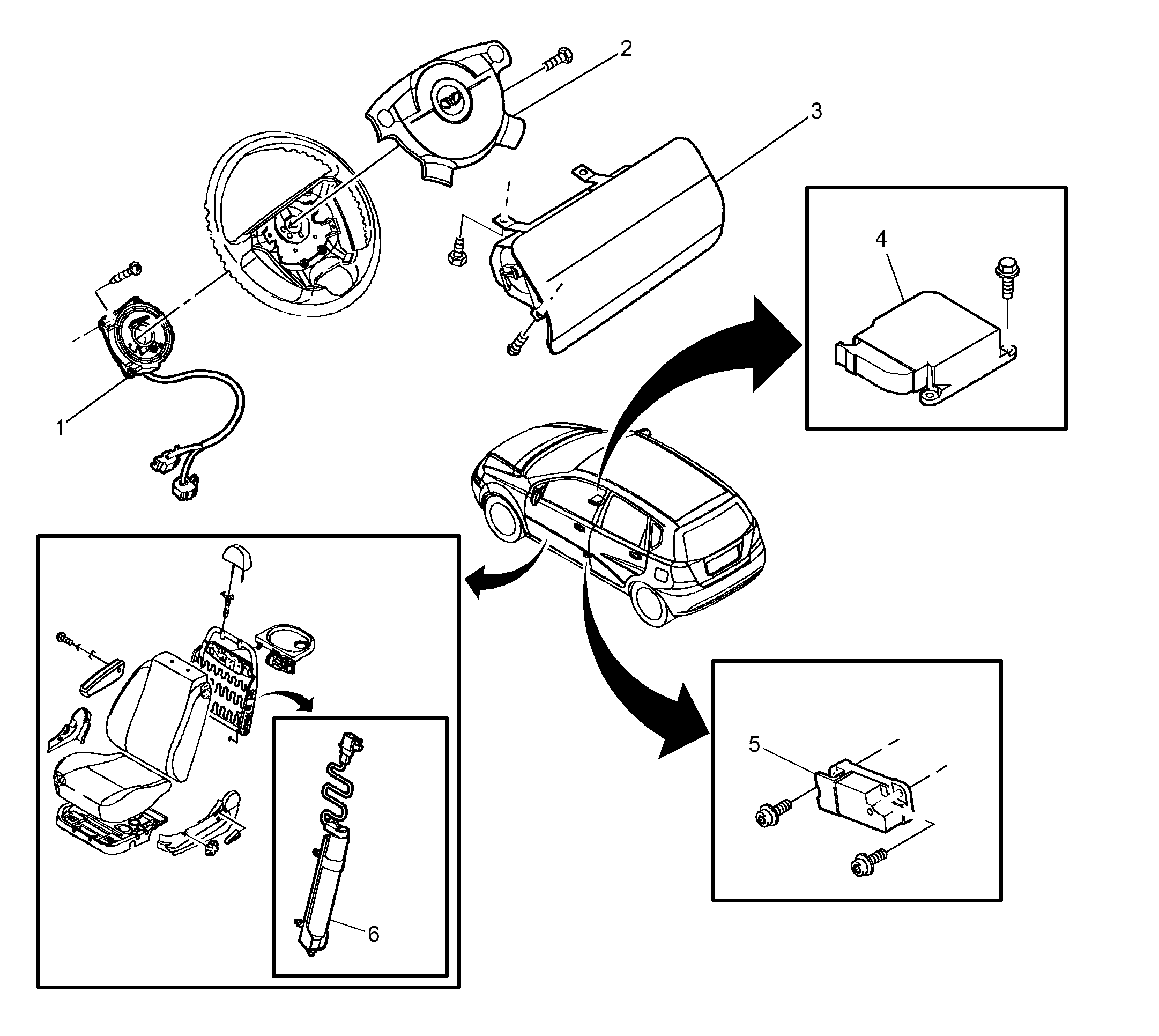

Fig 1: SIR Component Views
GM1248562Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Inflatable Restraint Steering Wheel Module
3 Inflatable Restraint I/P Module
4 Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 Inflatable Restraint Side Impact Sensor - Except North America Models (Left Hand Shown, Right Side Similar)
6 Inflatable Restraint Side Impact Module - Except North America Models (Left Side Shown, Right Side Similar)
