Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

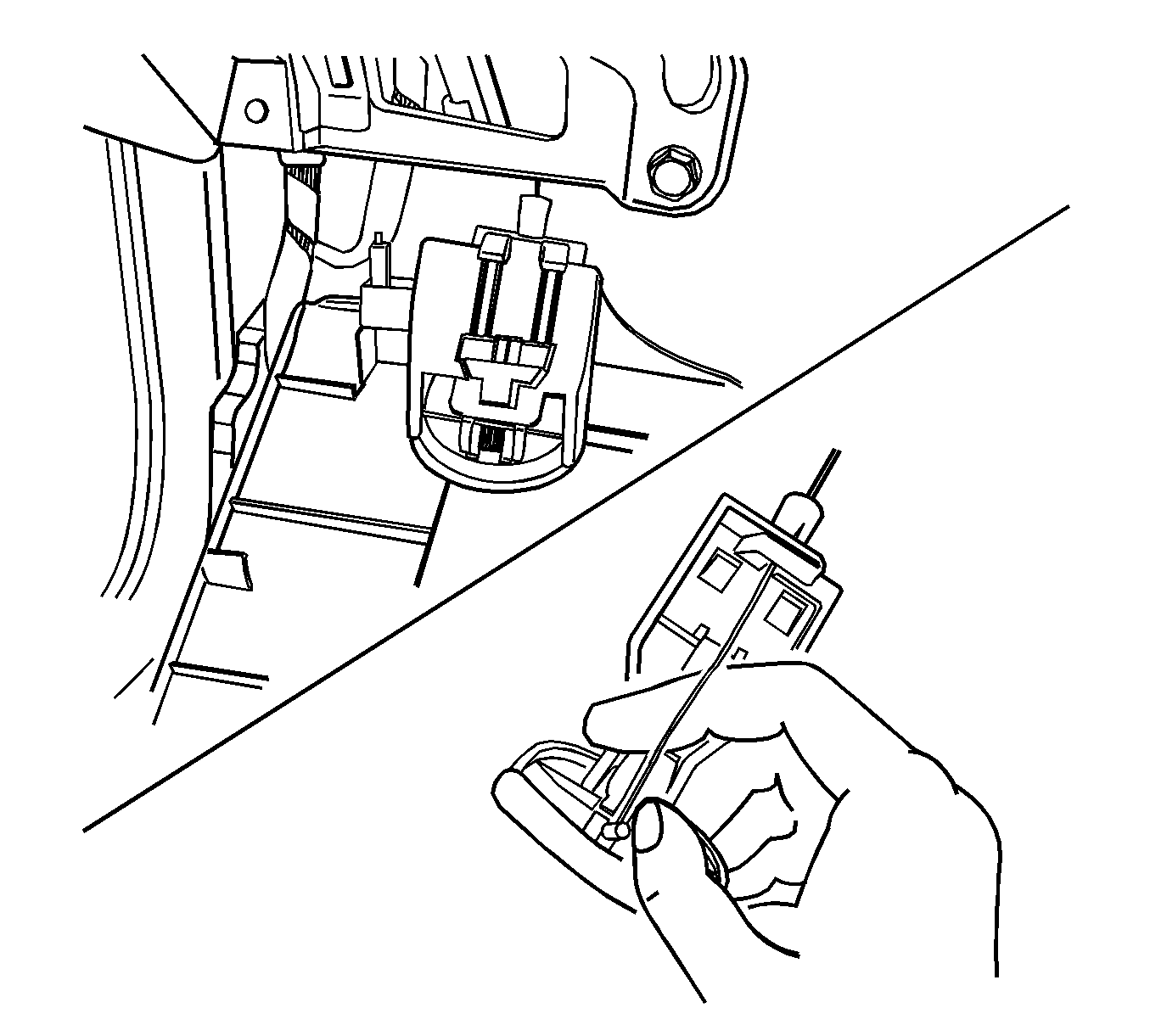

Fig 1: View of Cable

Courtesy of GENERAL MOTORS CORP.

Install the cable from inside the vehicle.
Install the cable to the hood release handle.

Fig 2: View of Hood Release Cable, Screws, and Hood Latch

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws and the hood secondary latch.
Tighten: Tighten the hood latch screws to 8 N.m (71 lb in).

Fig 3: View of Screws and Splash Shield

Courtesy of GENERAL MOTORS CORP.

Install the splash shield with the screws.
Tighten: Tighten the splash shield screws to 1.5 N.m (13 lb in).

Fig 4: View of Screws and Hood Release Handle From Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Install the front wheel.
Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Install the hood release on the instrument panel with the screws.
Tighten: Tighten the hood release handle screws to 1.5 N.m (13 lb in).
