Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

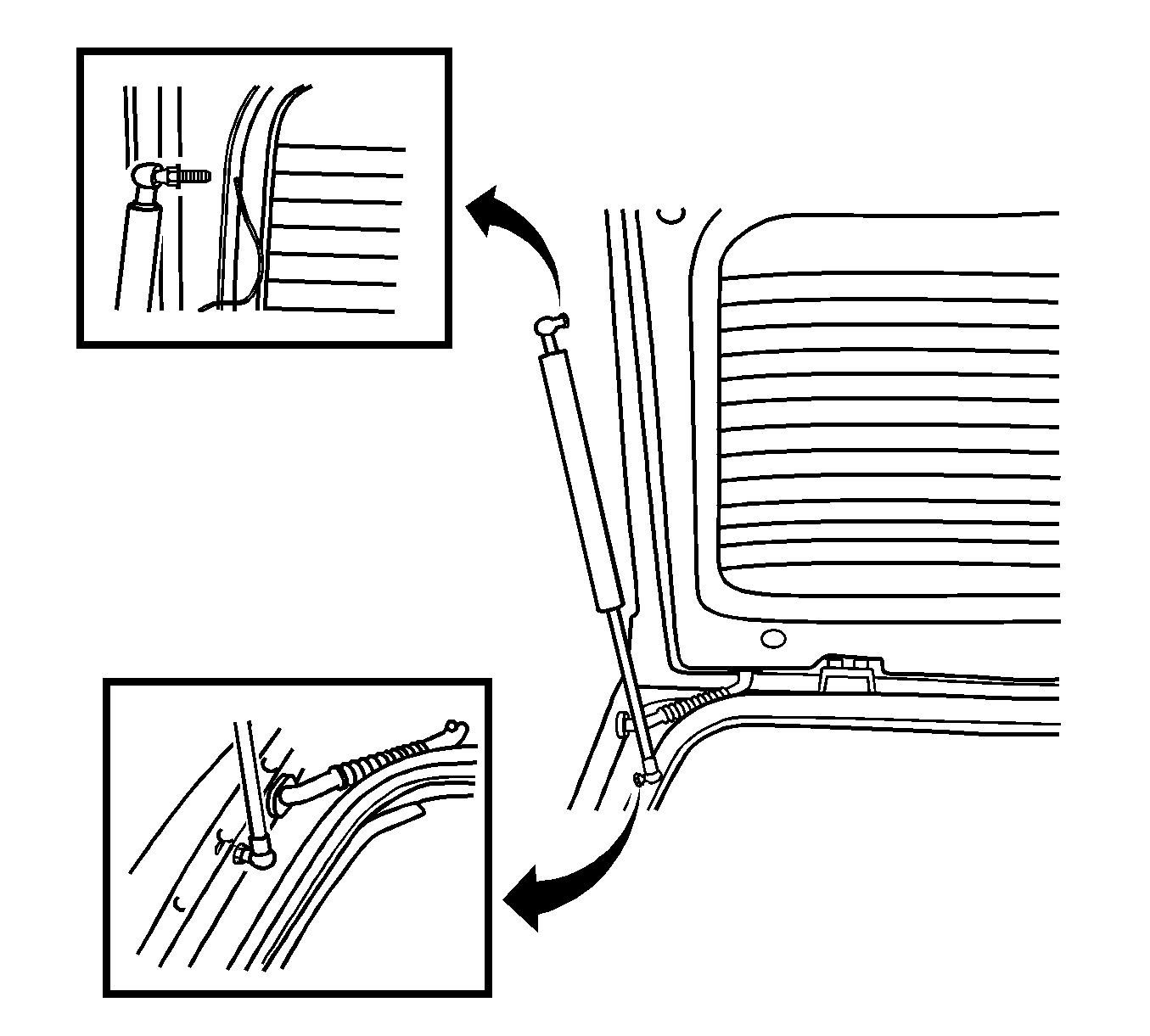

    Fig 1: View of Gas Support Assembly From Hatchback Door and Body
    GM1252093Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the gas support assembly onto the hatchback door and the body.

    Tighten:  Tighten the gas support assembly studs to 8 N.m (71 lb in).

  2. Close the hatchback door.
