Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

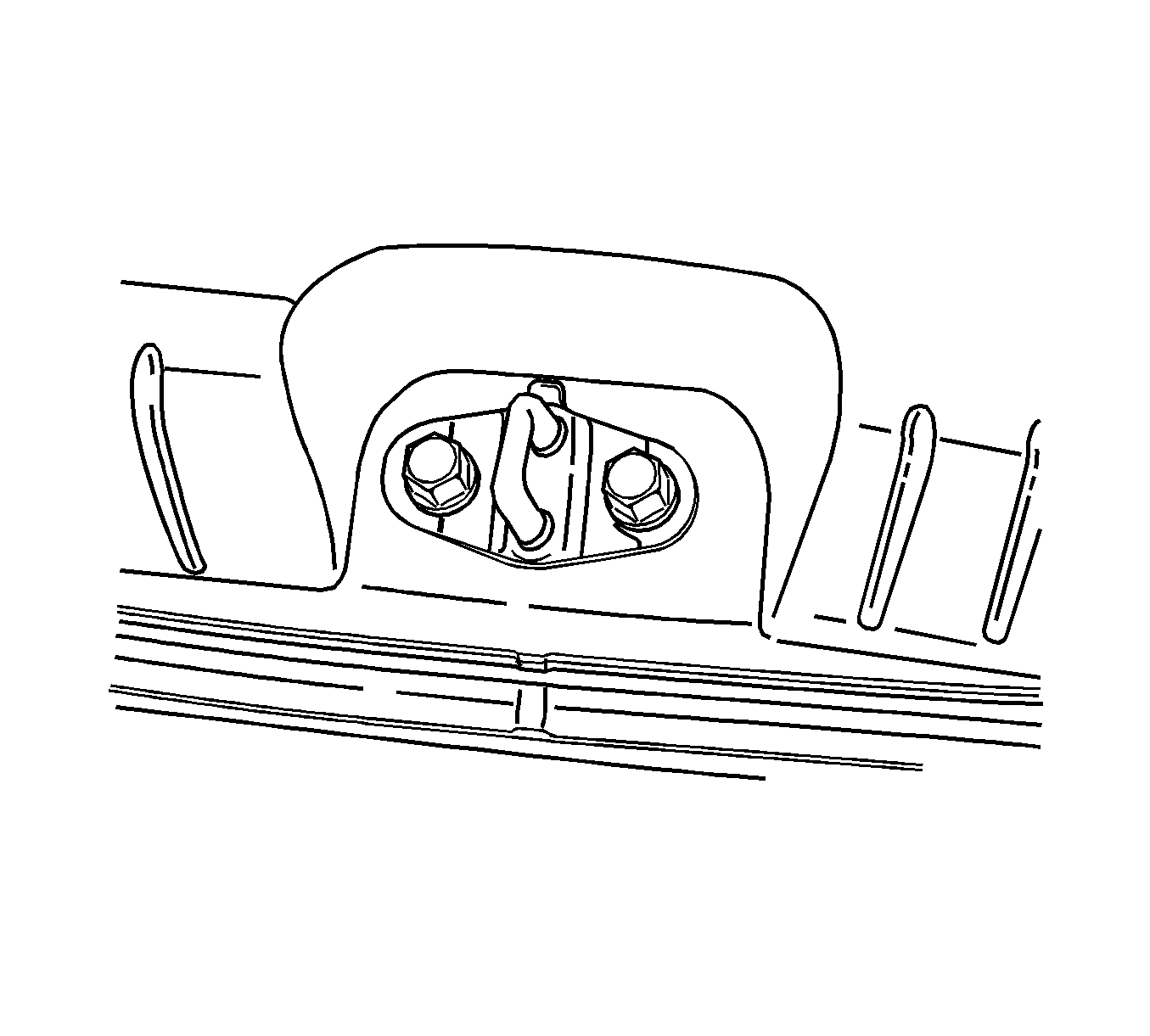

Fig 1: View of Lock Striker

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lock striker with the bolts.
Tighten: Tighten the luggage compartment lock striker bolts to 8 N.m (71 lb in).
Instal the luggage compartment rear trim panel. Refer to Compartment Trim Panel Replacement - Rear in Interior Trim.
