Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

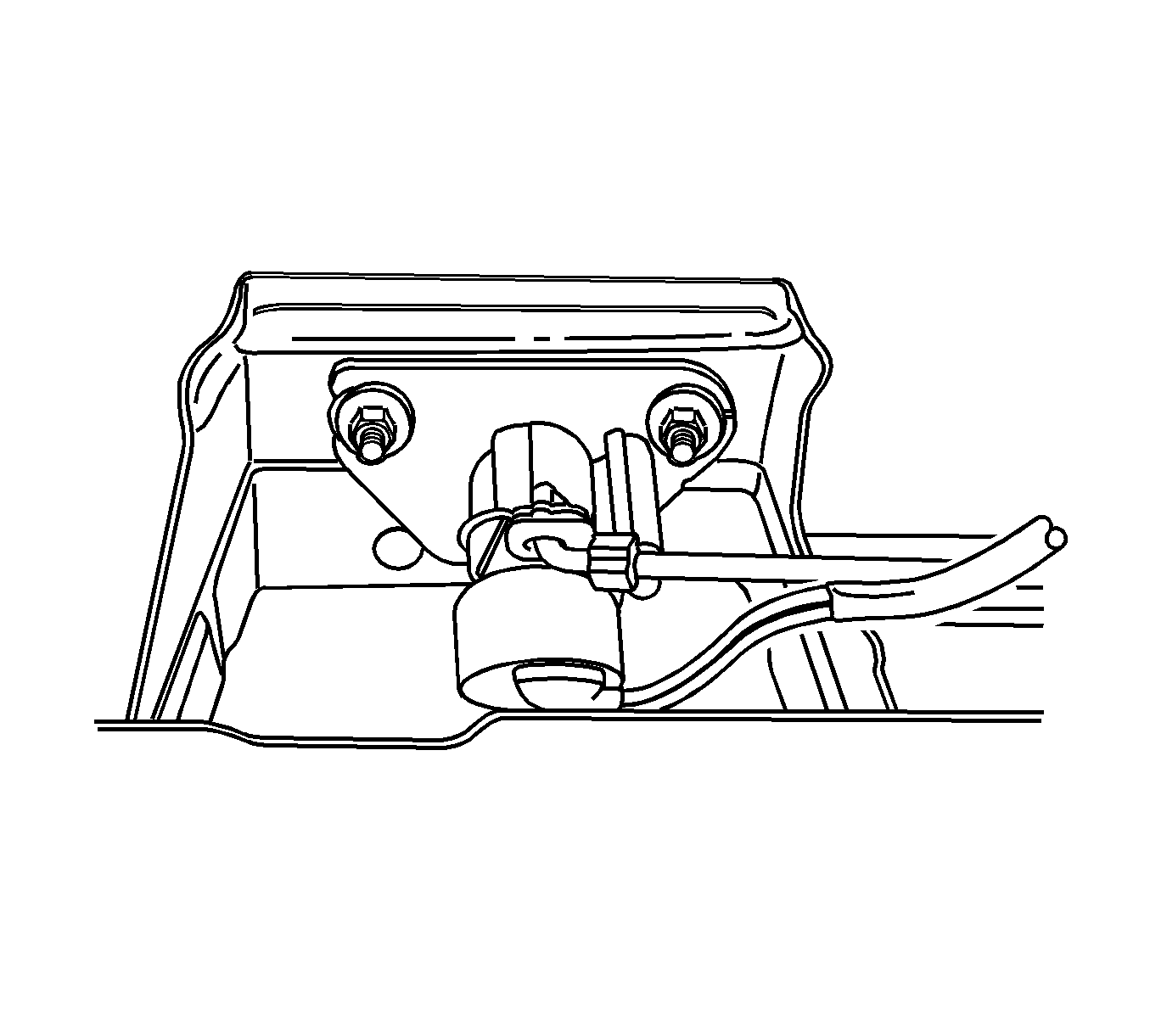

Fig 1: View of Nuts and Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lock cylinder with the nuts.
Tighten: Tighten the luggage compartment lock cylinder nuts to 3 N.m (27 lb in).
Connect the lock rod.
Install the hatchback door lower garnish molding, if equipped. Refer to Hatchback Door Lower Garnish Molding Replacement in Interior Trim.
