Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

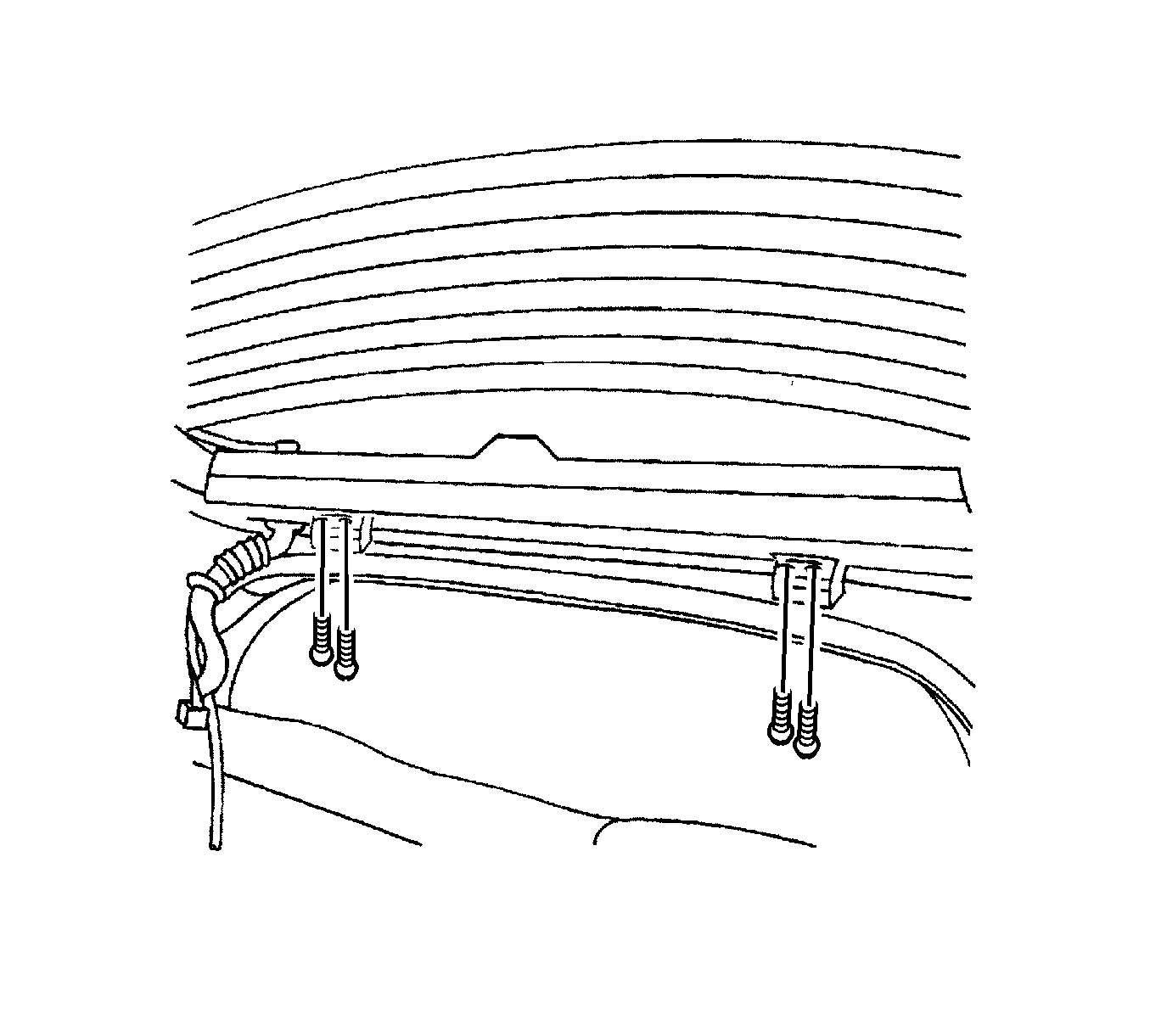

Fig 1: View of Hatchback Door, Bolts, and Hinges

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

With the aid of another technician, install the hatchback door to the hinges with the bolts.
Tighten: Tighten the hatchback door hinge bolts to 20 N.m (15 lb ft).
Install the gas support assemblies to the hatchback door and the body. Refer to Strut Replacement - Liftgate .
Connect the hatchback door electrical connector, the washer hose, and the grommet.
Close the hatchback door.
