Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

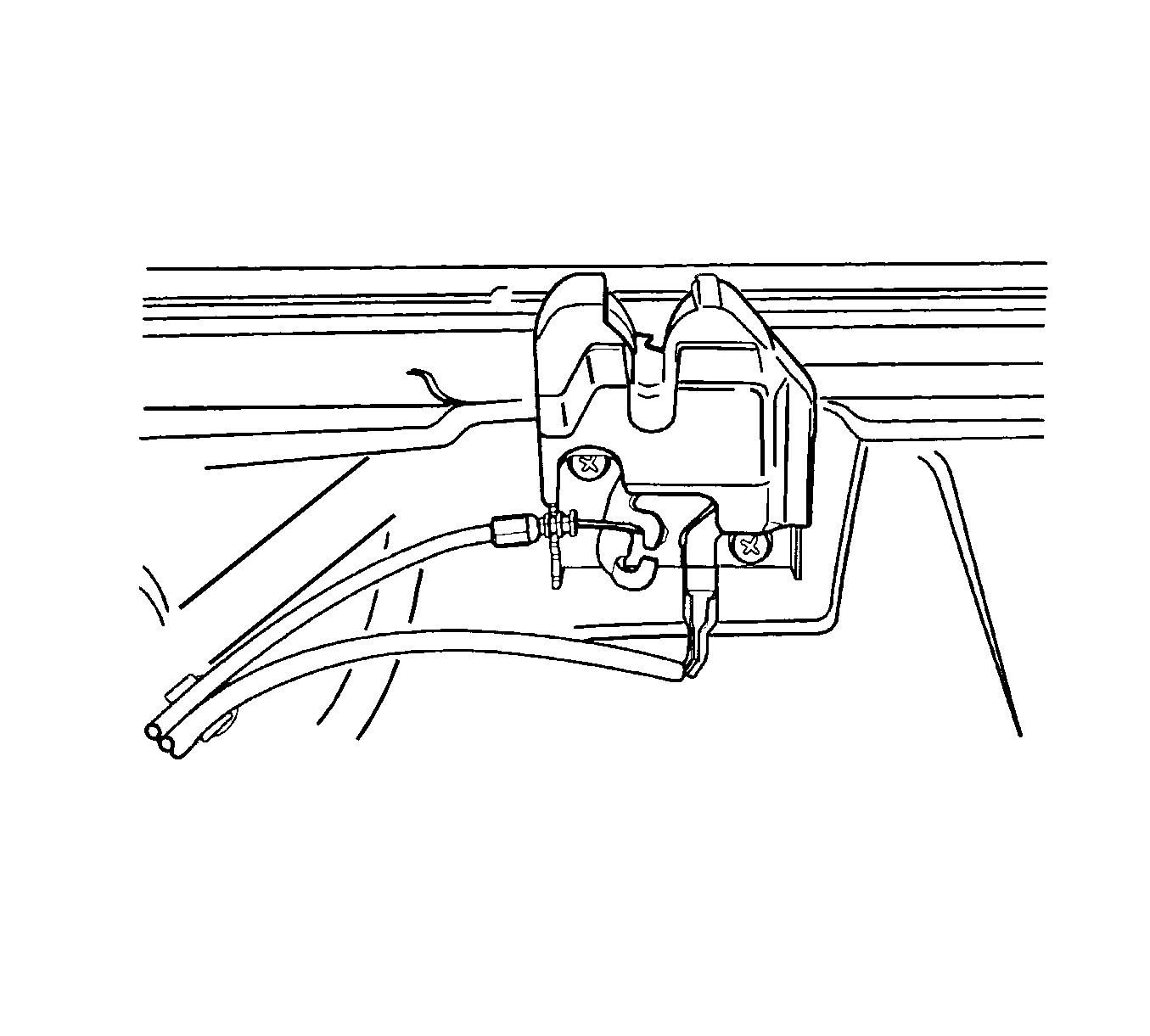

    Fig 1: View of Cable From Lock
    GM1252089Courtesy of GENERAL MOTORS CORP.
  1. Connect the cable to the lock.
  2. Connect the lock rod.
  3. Connect the electrical connector.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the luggage compartment lock with the screws.

    Tighten:  Tighten the luggage compartment lock screws to 6 N.m (53 lb in).

  5. Connect the negative battery cable.
