Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

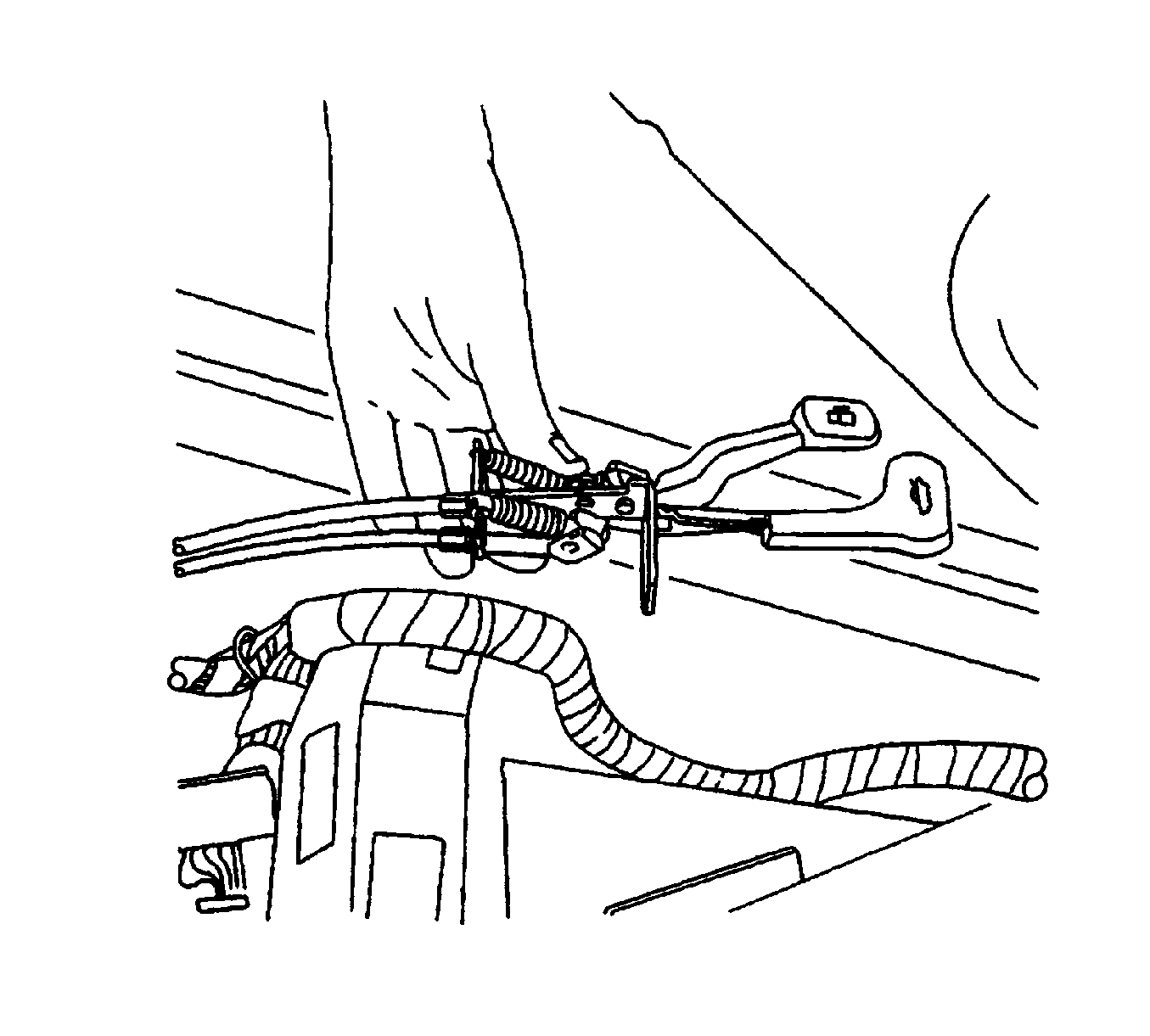

Fig 1: View of Cable From Handle

Courtesy of GENERAL MOTORS CORP.

Feed the cable from the luggage compartment to the passenger compartment.
Connect the cable to the handle.

Fig 2: View of Bolt and Handle

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the handle with the bolt.
Tighten: Tighten the remote cable handle bolt to 8 N.m (71 lb in).

Fig 3: View of Cable From Lock Striker

Courtesy of GENERAL MOTORS CORP.

Install the floor carpet to its original position.
Install the front and the rear seats. Refer to Seat Replacement - Front Bucket and Seat Back Replacement - Rear in Seats.
Connect the cable to the lock striker.
Install the lock striker. Refer to Lock Striker Replacement - Rear Compartment Lid .
Install the luggage compartment left side wheelhouse, the rear quarter, and the rear trim panels. Refer to Trim Panel Replacement - Cargo Area Rear (Notchback) or Trim Panel Replacement - Cargo Area Rear (Hatchback) , Trim Panel Replacement - Rear Quarter , and Compartment Trim Panel Replacement - Rear in Interior Trim.
