Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

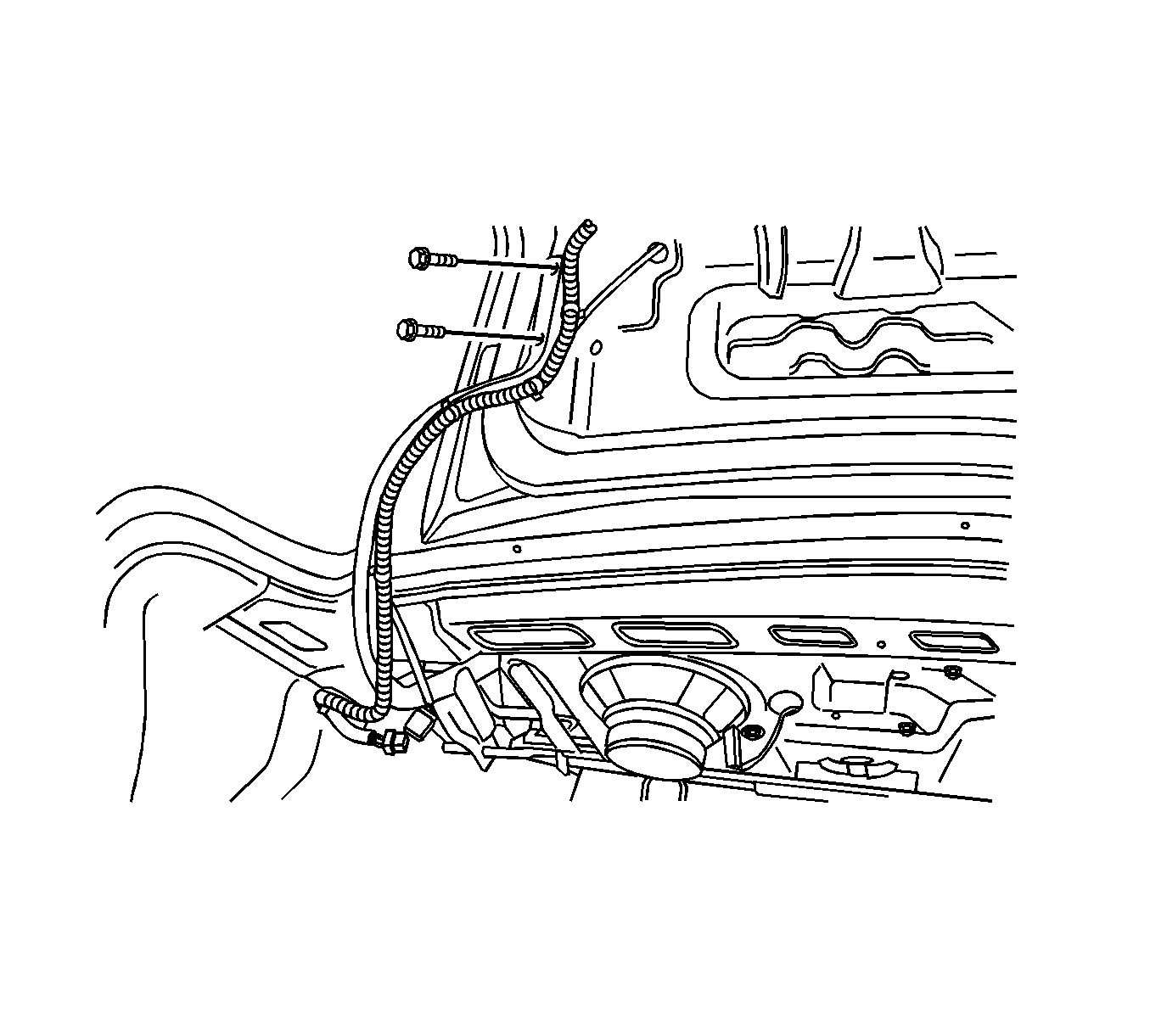

    Fig 1: View of Bolts and Rear Deck Lid
    GM1252081Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the rear deck lid with the bolts.

    Tighten:  Tighten the rear deck lid bolts to 10 N.m (89 lb in).

  2. Connect the electrical harness to the rear deck lid hinge arm.
  3. Connect the electrical connector.
  4. Connect the negative battery cable.
