Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor)
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
- Place the clutch drive assembly to match the shaft serration with the drive hub serration.
- Gently insert the clutch drive assembly.

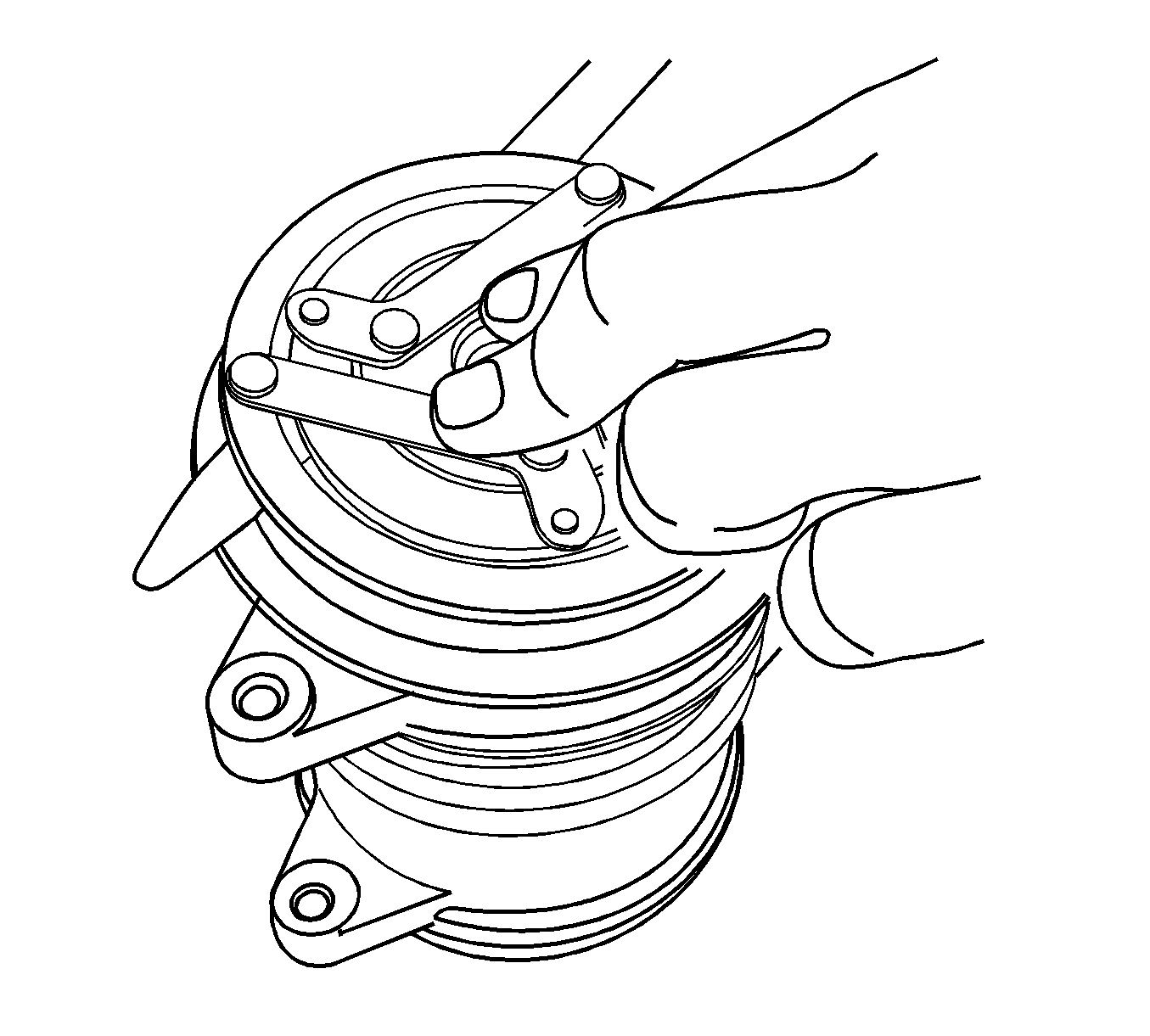

- Check the air gap with the feeler gage roughly by pressing the clutch drive assembly before fastening the shaft bolt.
Specification: 0.3-0.7 mm (0.012-0.028 in)

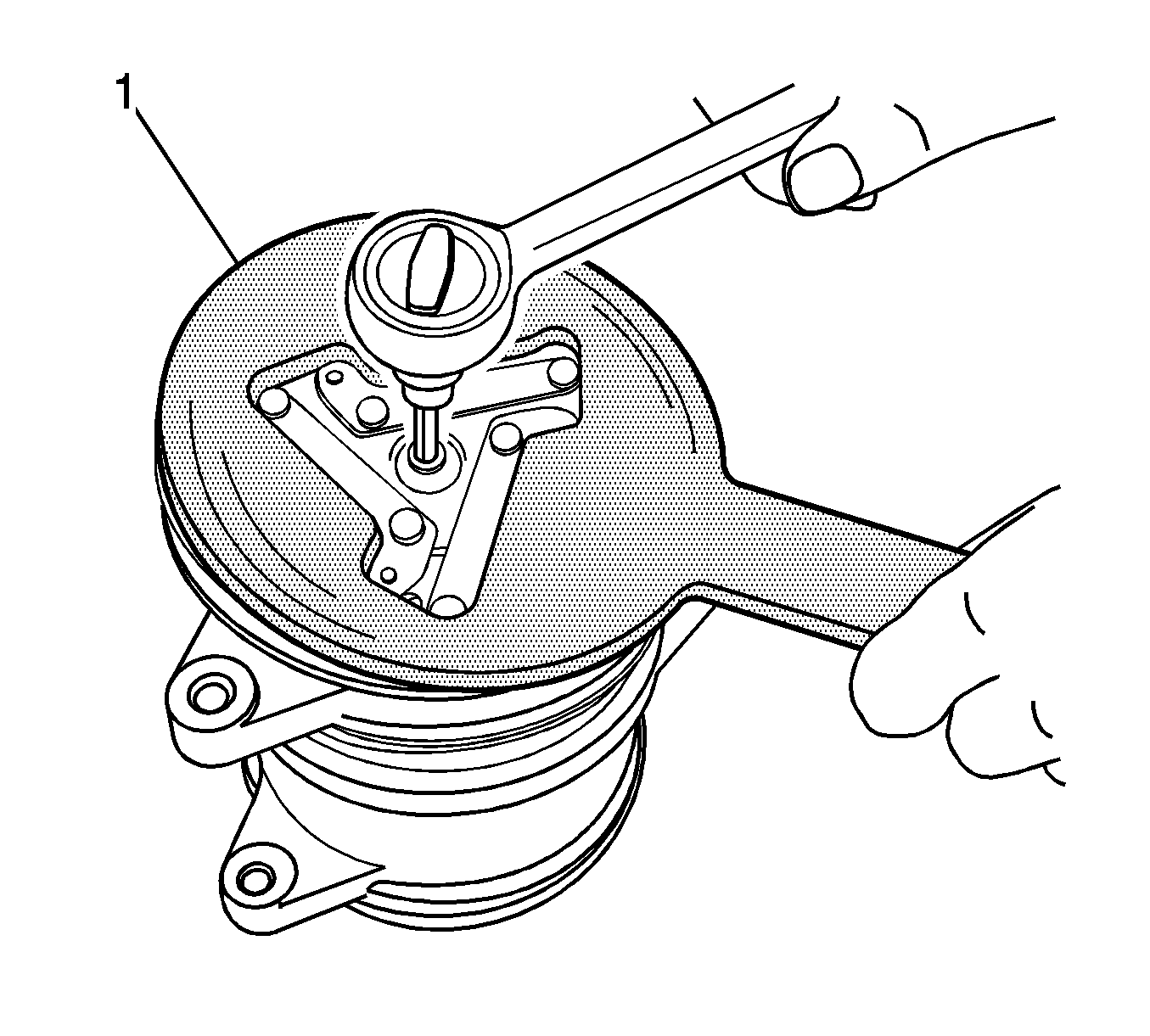

IMPORTANT: If the air gap is correct, proceed to the next step. If not, change the shim to meet the specified air gap. - Use the DW-610-010 clutch hub holding tool (1) to keep the clutch drive assembly from turning. See Special Tools .
- Place the washer before fastening the shaft bolt.
Tighten: Tighten the shaft bolt to 12-15 N.m (106-133 lb in).
- Recheck the air gap with the feeler gage.
