Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

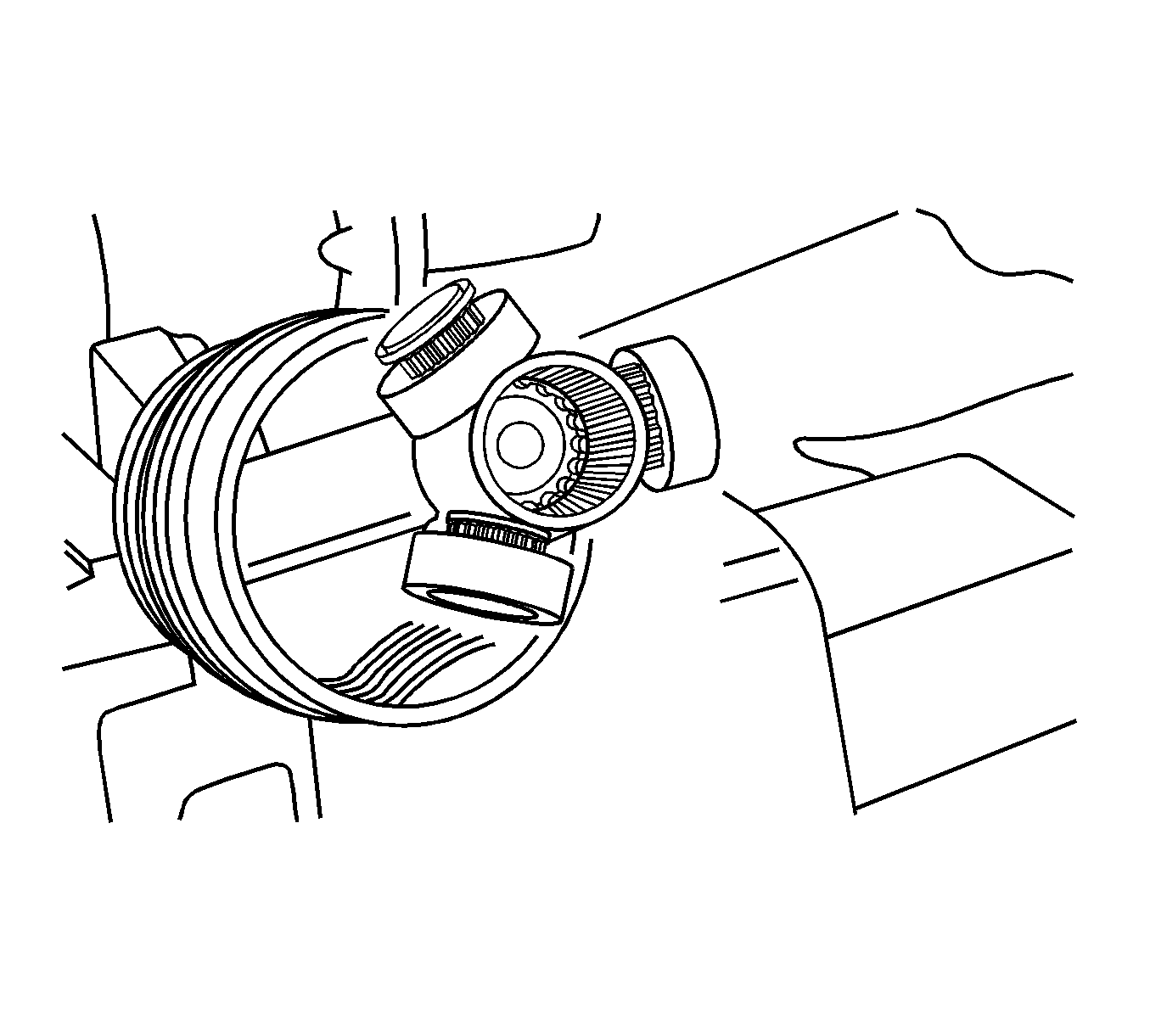

    Fig 1: View Of Tripot Joint And Axle Shaft
    GM1242030Courtesy of GENERAL MOTORS CORP.
  1. Install a new small seal retaining clamp onto the seal.
  2. Install the seal onto the axle shaft.

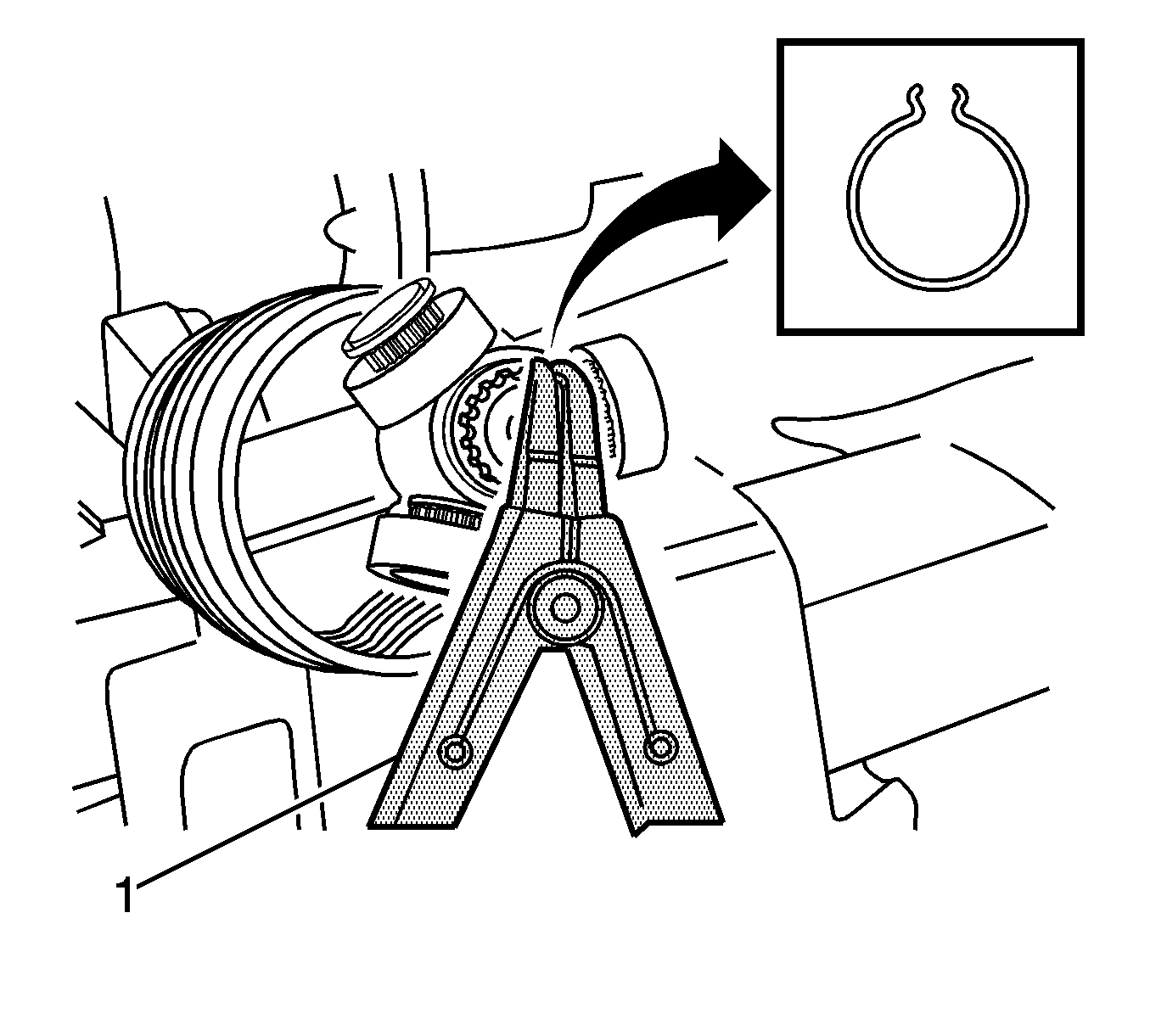

    3. Fig 2: Removing/Installing Tripot Assembly Retaining Ring with J 8059
    GM1242029Courtesy of GENERAL MOTORS CORP.
  3. Install the shaft retaining ring onto the axle shaft using the J 8059  (1). See Special Tools .

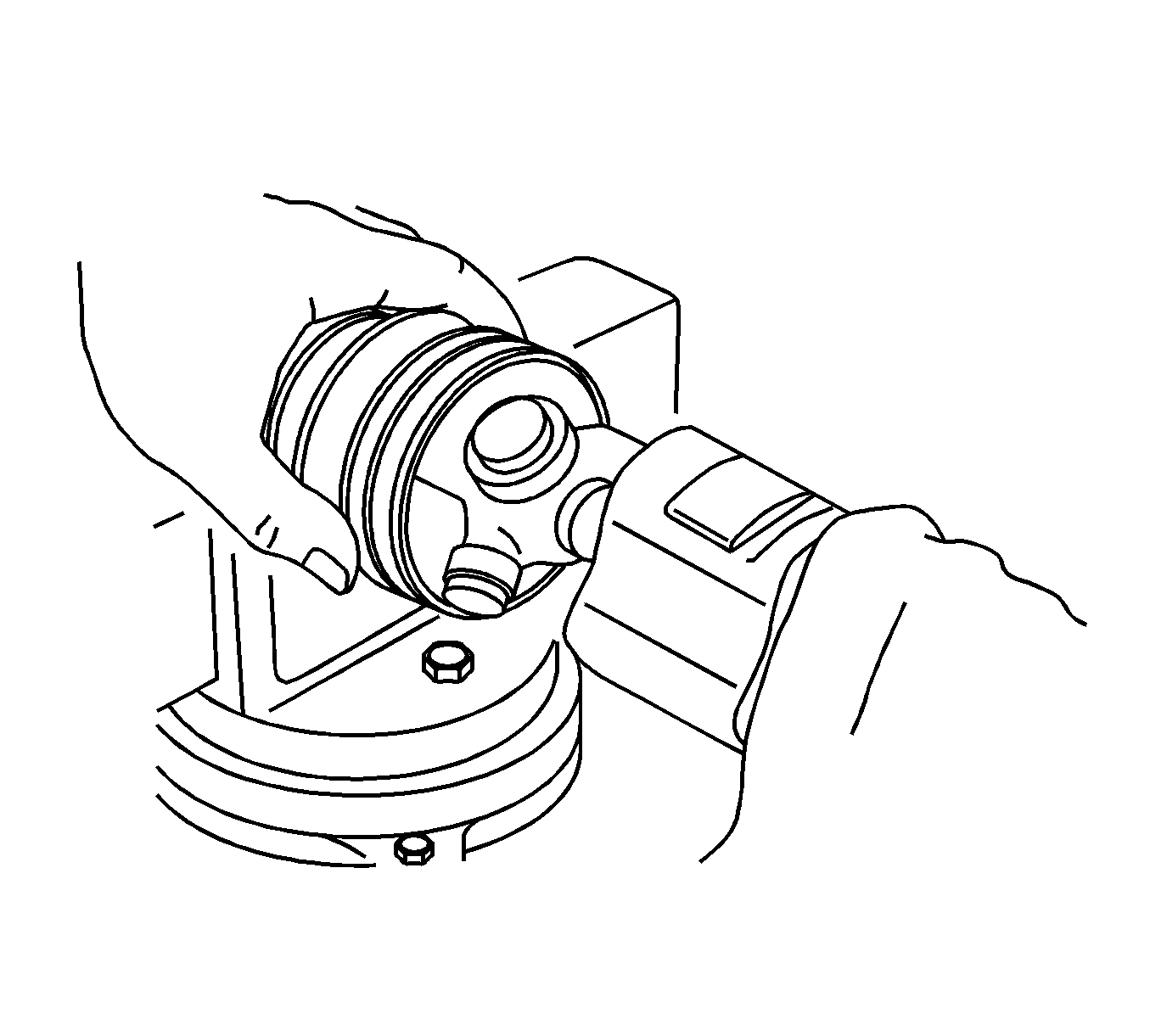

    4. Fig 3: View Of Joint Housing And Boot
    GM1242028Courtesy of GENERAL MOTORS CORP.
  4. Fill the tripot housing with 195-215 g (6.9-7.6 ounces) of the recommended grease. Repack the tripot with 195-215 g (6.9-7.6 ounces) of the recommended grease.
  5. Install the boot to the joint housing.

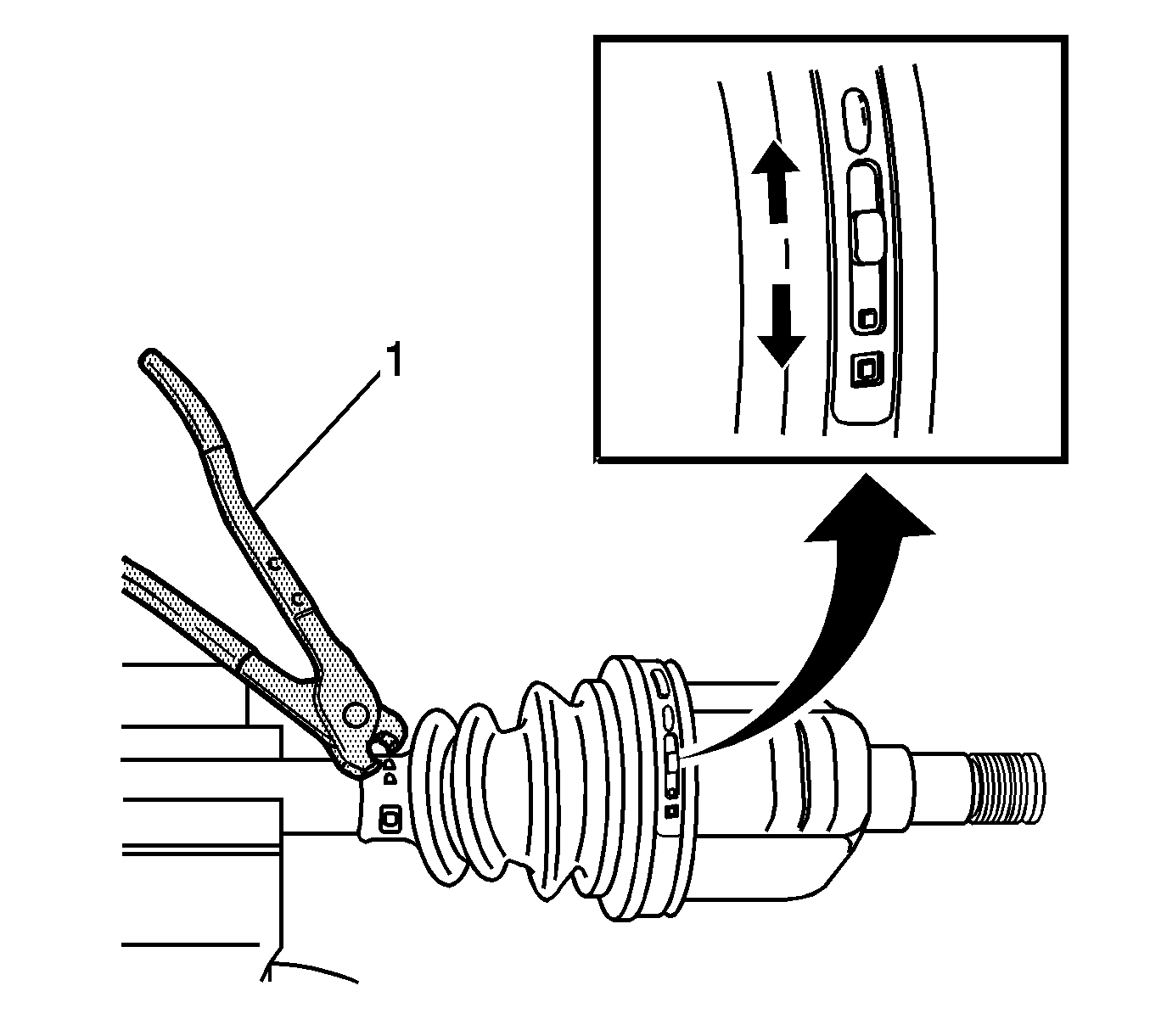

    6. Fig 4: View Of Drive Axle Large Seal Retaining Clamp
    GM1242027Courtesy of GENERAL MOTORS CORP.
  6. Install a new large seal retaining clamp. Crimp the large seal retaining clamp using the J 35566  (1). See Special Tools .
  7. Crimp the new small seal retaining clamp using the J 35566  (1). See Special Tools .
  8. Install the drive axle shaft to the vehicle. Refer to Front Drive Axle Inner Shaft and Inner Shaft Housing Replacement .
