Tools Required: Notes

WARNING: This page is about a different car, the 2008 Pontiac Wave. However, it is still accessible from the selected car via links, so may be relevant.

DT 46612 Brushing, Seal Installer. See Special Tools .

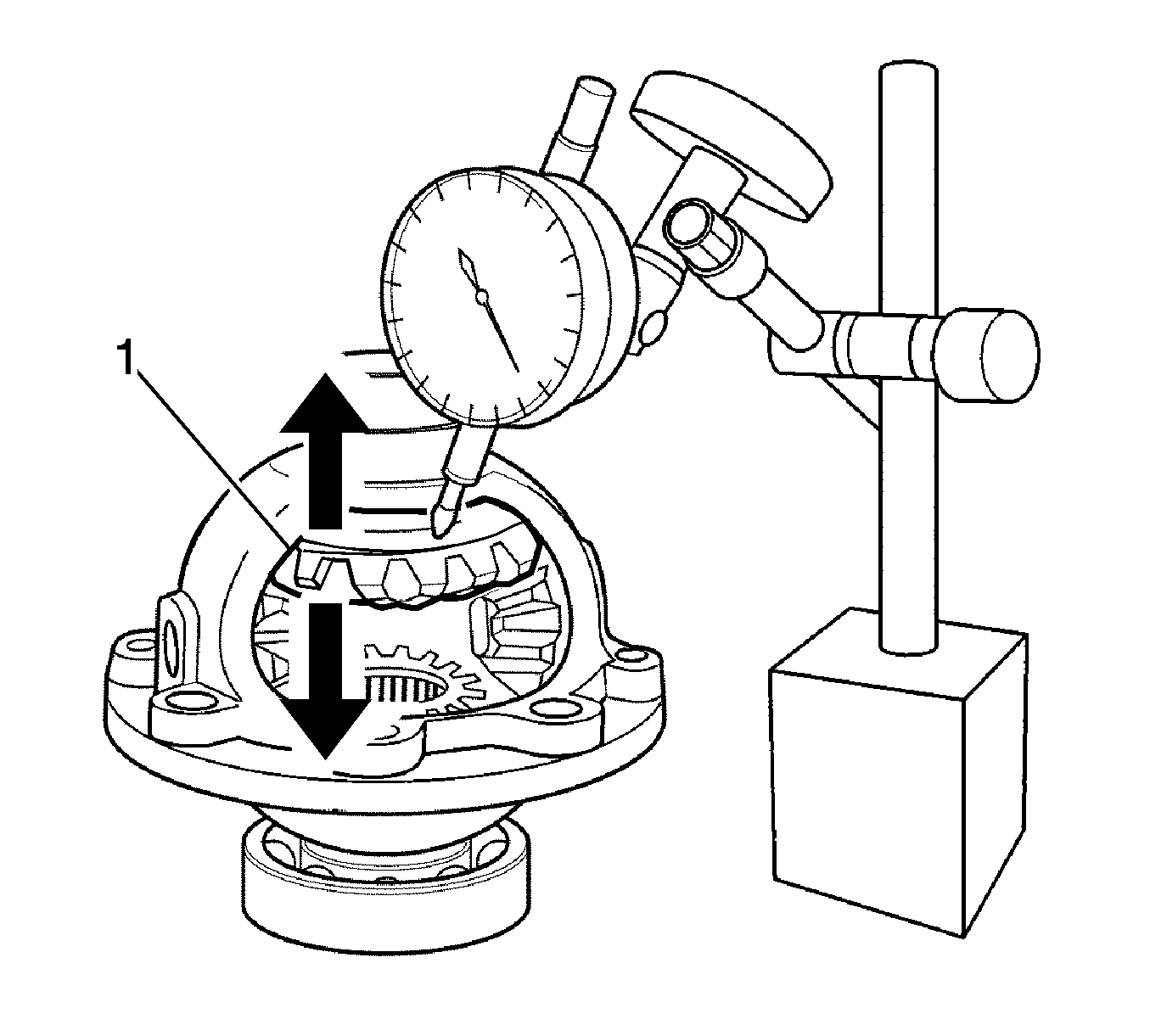

Fig 1: Measuring The Axle Direction Play Of Side Gear

Courtesy of GENERAL MOTORS CORP.

Measure the axle direction play (1) of side gear and replace a side gear washer if it exceeds limit. Refer to Side Gear Axle Direction Play Table in Manual Transmission Specifications .

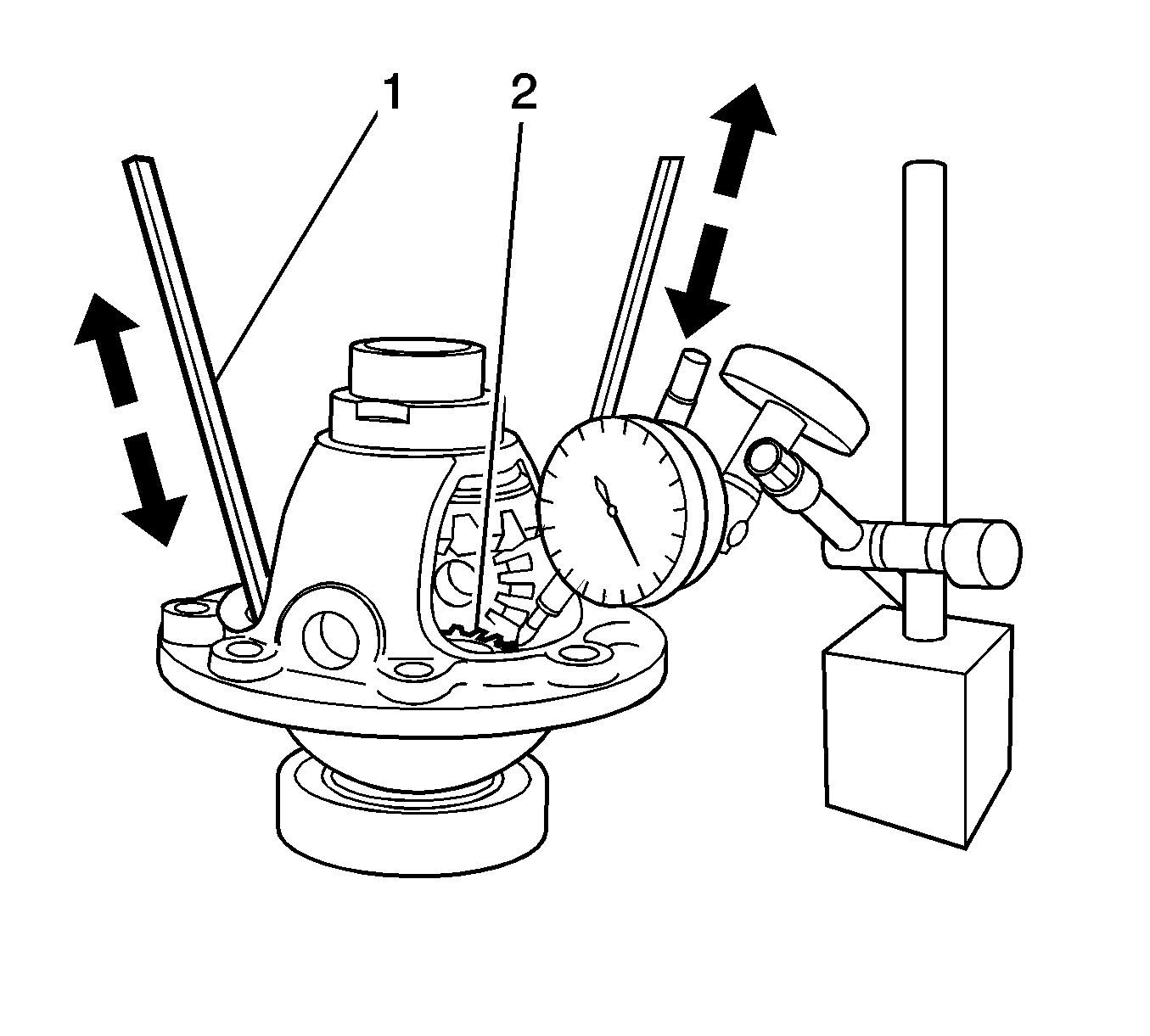

Fig 2: Checking Driver & Side Gear For Damage

Courtesy of GENERAL MOTORS CORP.

After checking driver (1) and side gear (2) for worn or scratched thrust adjusting shim, replace it if necessary.
