Starting and Charging Schematics

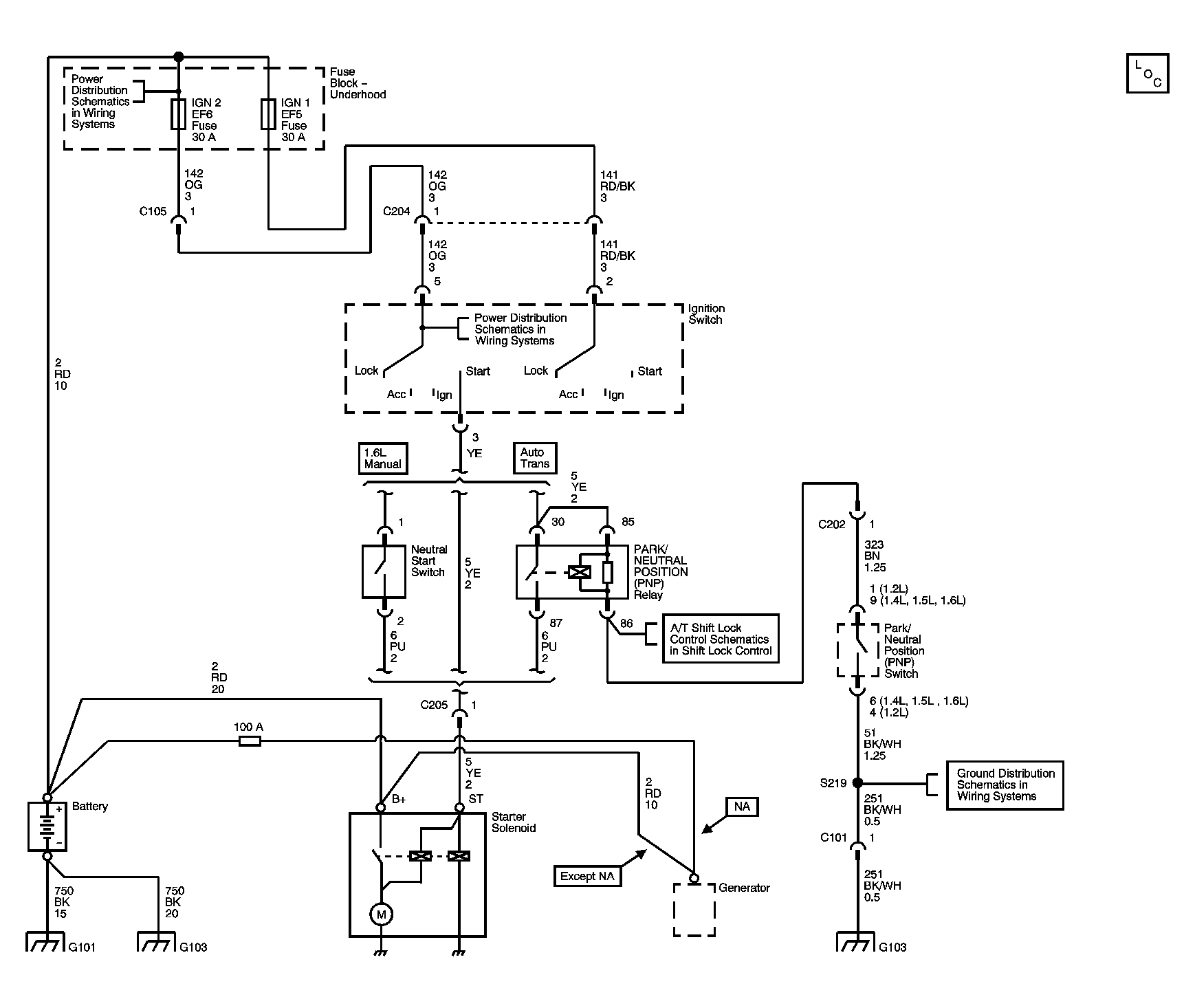

Fig 1: Starting System Wiring Schematic
GM1456613Courtesy of GENERAL MOTORS CORP.

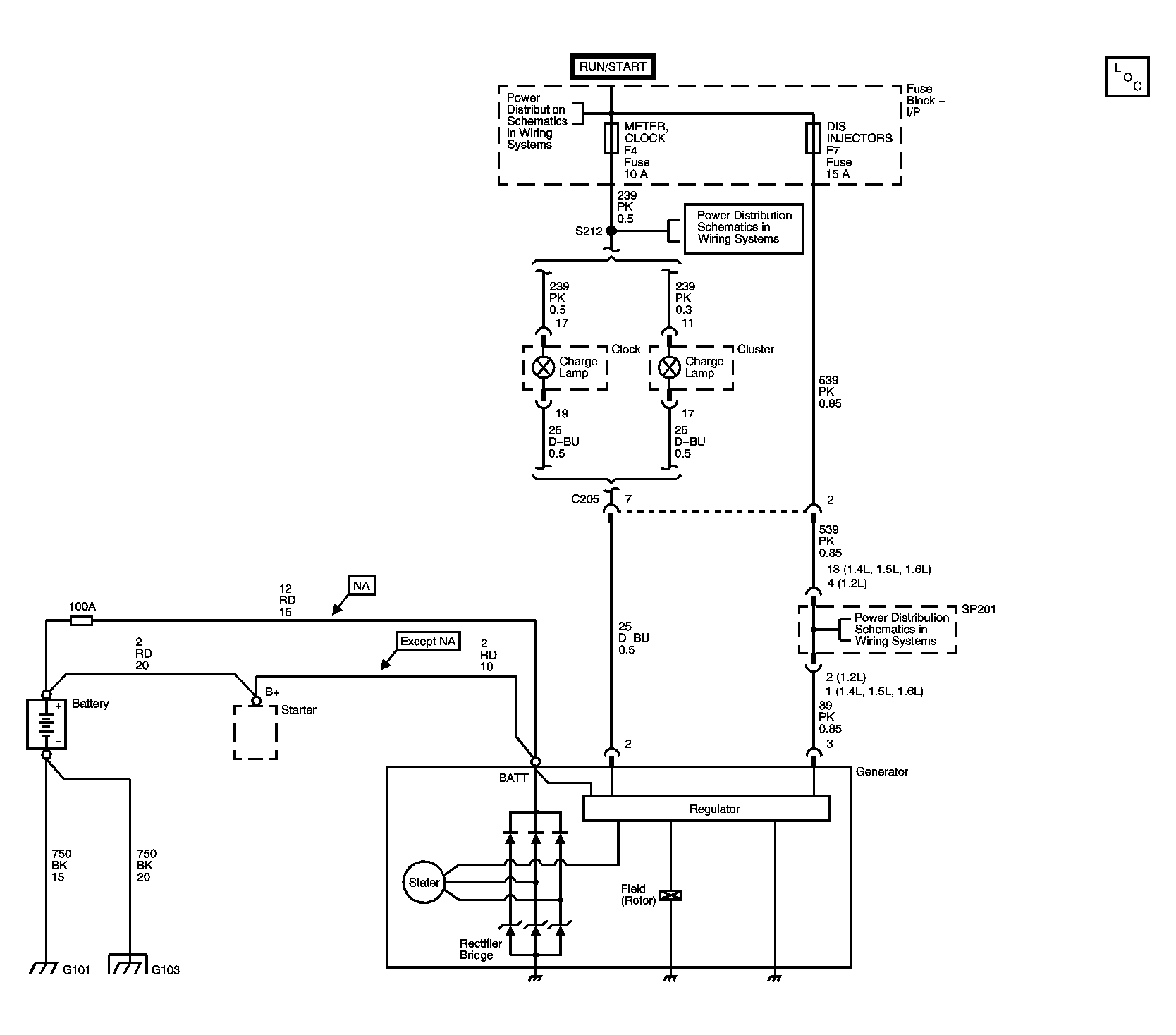

Fig 2: Charging System Wiring Schematic
GM1257884Courtesy of GENERAL MOTORS CORP.
